Somatic Cell Counter

> >>>Fluorescence Somatic Cell Counter

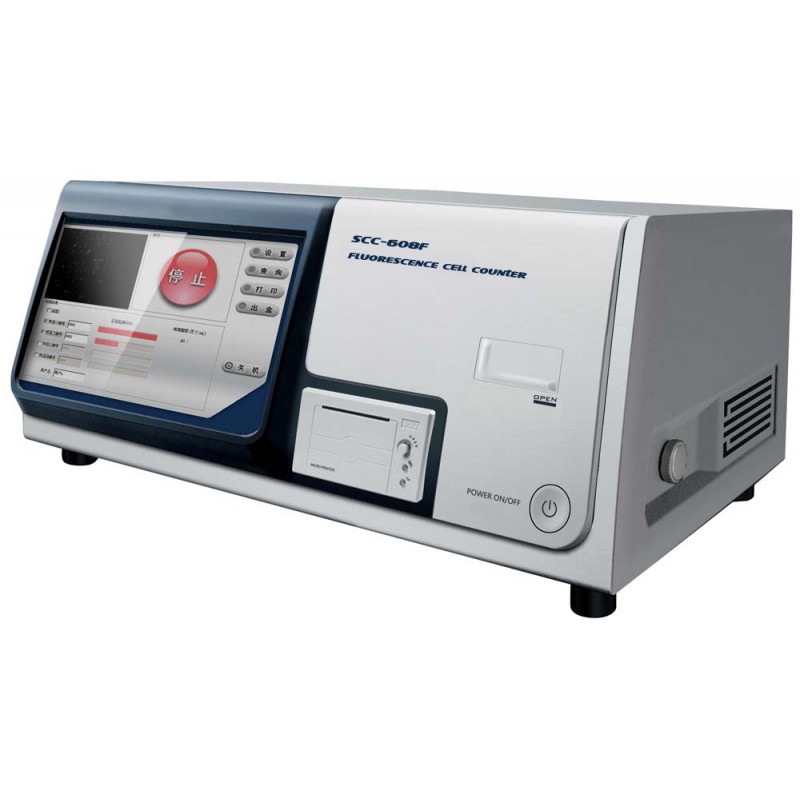

Fluorescence Somatic Cell Counter

SCC-608F

The number of somatic cells in milk is an important indicator to evaluate the milk quality and monitor the health status of dairy cows. Fluorescence somatic cell counter quickly and accurately records the number of somatic cells in milk, and it is the essential equipment to control the milk quality and manage the modern pastures.

More details

More info

Features:
Immunofluorescence staining labeled somatic cells , strong specificity, high sensitivity, easy to operate
Four-channel slide, consecutively complete four sample count.

It offers two counting modes.
Standard mode: complete one sample count in 40 seconds (used for bulk detection)
Precision Mode: complete one sample count in 90 seconds (provide higher precision rate and good repetitive count )

  1. Counting range: 0 to 50 million / ml
  2. Automatic image recognition and data management software
  3. Automatic image recognition technology, high-speed, accurate completion of cell recognition and counting
  4. Powerful database support, built-in computer, complete data processing, archiving, retrieval and print output
  5. Large-size touch-screen Chinese operation, efficient touch and a good human-computer interaction
  6. Live view of detection image



Certification/Standard

  1. Electromagnetic Compatibility: index:89/336/EEC
  2. Low voltage index：73/23/EEC
  3. IDF148A
  4. IDF141B



Technical Parameters


Light source

Laser light source

Life span for use

3000h

Start stabilization time

5min

Sample quantity

10ul sample quantity for each channel

Slide

4- channel slide can achieve to detect 4 samples consecutively

Detection time

Standard mode:20 seconds  Precision Mode:60 seconds

Repeatability

Comply with the IDF standard :Cv< 3.0% (somatic cells numbers300,000~500,000)

Accuracy

Standard mode:<8.5%  Precision Mode:<7.0%( With respect to the DMCC)

Dimension

(length*width*height)586x389x265mm

Weight

19kg

Power supply

220V  ±10v

Power(consumption)

45W

Electrical protection class

E class

Pollution Level

 3 class

Noise level

<35Db(A)



Product Configuration


Instruments hardware configuration

VIA m860/320G/220WFLUX power/89C58 Mirror inspection control system

Platform motion

89C58 Mirror inspection control system

Microprocessor control unit

NANO1.2G CPU/KST 1G DDR3

Computer with control system

VIA M860

LCD Display

10.4 inch svga500cdm2,led

Serial Communications Interface

4serial ports 2400bps-960bps
