Spectrodensitometer

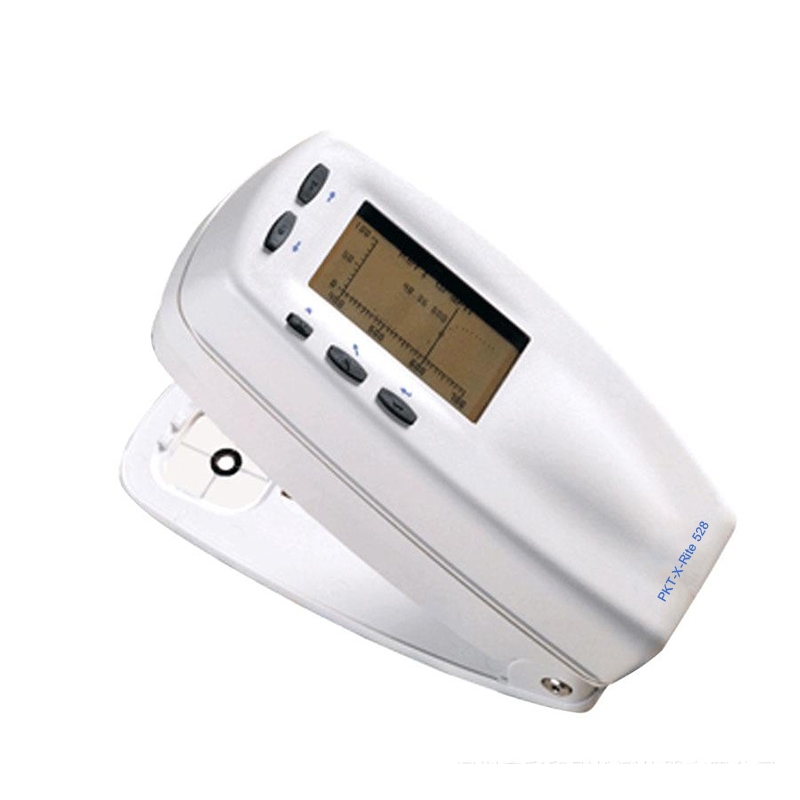

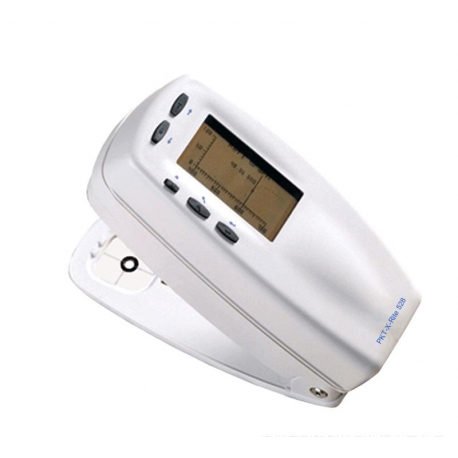

PKT-X-Rite 528

PKT-X-Rite 528 Spectrodensitometer is used to test color properties such as density, dot gain, trapping, print contrast, gray balance, hue error, L*a*b*, L*C*h, Yxy and so on. Can test special colors and process color.

More details

More info

PKT-X-Rite 528 Spectrodensitometer is used to test color properties such as density, dot gain, trapping, print contrast, gray balance, hue error, L*a*b*, L*C*h, Yxy and so on. Can test special colors and process color.



Product Features

 Adopt spectral sensor, high accuracy.
 Fully functional operation keys, menu and LCD display, convenient for use.
 Targeting window helps user easily locate the measurement area.
 More measurement apertures optional: microspot 1.6 x 3.2mm, small 2.0mm, medium 3.4mm or large 6.0mm.
 Built-in PANTONE® color data library.
 Can also create your own color formula.



Specifications

Product brand

PKT-X-Rite

Country of origin

USA

Measurement geometry

45º/0º, meets ANSI, DIN & ISO Standards

Measurement spot size

Φ3.4mm as standard;
optional: 2.0mm, 6.0mm, 1.6 x 3.2mm

Light source

Gas Pressure @ 2856°

Spectral range

400nm to 700nm

Illuminant types

A, C, D50, D55, D65, D75, F2, F7, F11, F12

Standard observers

CIE 2º and 10º

Response types

T, E, I, A, G,Tx, Ax, Ex, Hi-Fi

Measurement range

density: 0.00D–2.5D; reflectance: 0–160%R

Measurement time

Approx. 1.4 seconds single measurement
Approx. 0.9 seconds for consecutive measurements in Speed Read mode

Warm up time

none

Repeatability

±0.005D for 0.00~2.00D; ±0.010D for 2.00–2.50D

Inter-instrument agreement

±0.01 D or 1% for typical printing processes
0.40 ΔE CMC MAX on 12 BCRA Tiles

Serial data interface

RS-232

Power source

Ni-MH battery pack, 4.8v rated @ 1650mAh

Battery charge time

Approx. 3 hours

Instrument size

197mm (L) x 76mm (W) x 81mm (H)
