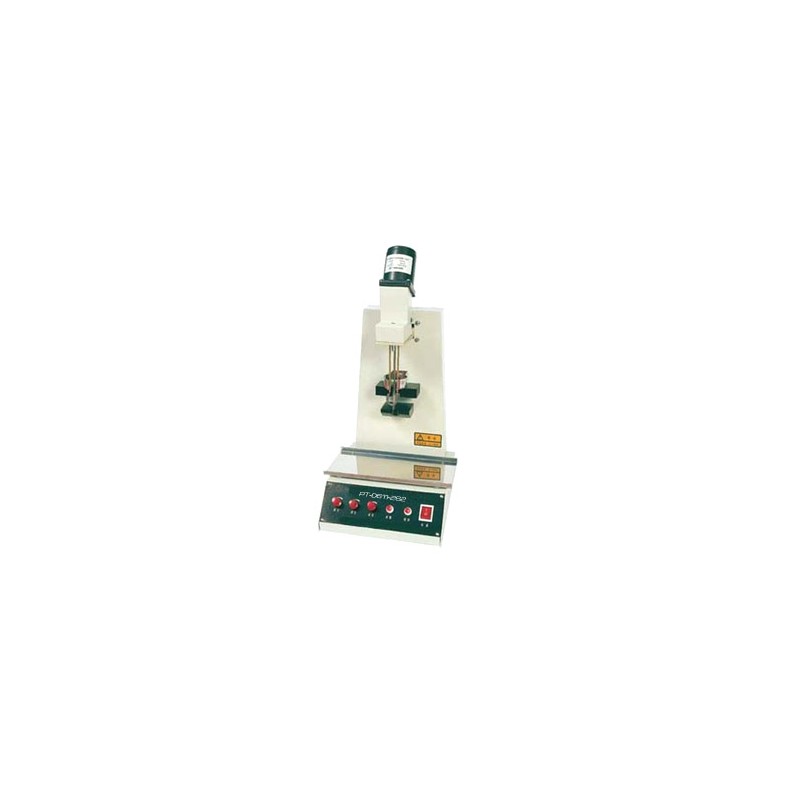

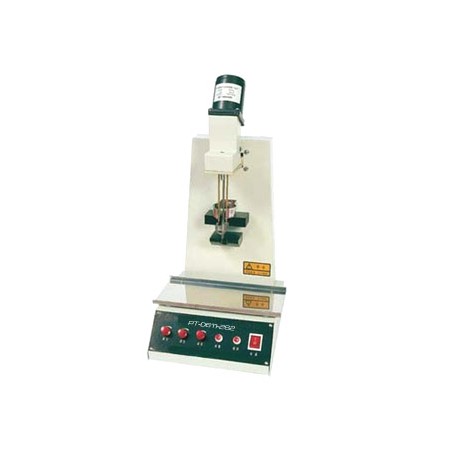

PT-D611-262 Aniline Point Tester

Purpose
PT-D611-262 Aniline Point Tester is designed and made as per the National Standard GB/T262 “Test Methods for Aniline Point of Petroleum Products” and ASTM D 611. It is suitable to determine the lowest temperature when a light petroleum product sample and the same volume of aniline dissolve with each other and become a single liquid phase. The lowest temperature is the aniline point of the sample. The instrument uses an electric heater to heat sample, adjusts controlling temperature manually, and stirs sample using a stepless speed regulation motor. It can detect end point automatically and make alarm using sound and light. It is reliable, convenient and accurate.

Technical parameters
1. Power supply: AC 220V±10%, 50 Hz;
2. Measurement range: room temperature ~ 150°C;
3. Stirring speed: 0 ~ 1200 r/min;
4. Heating power: 25 W;
5. Size: 360mm×250mm×545mm;
6. Dimensions (m): 0.37*0.32*0.63
