Auto Chemistry Analyzer

> >>>Automatic Intermittent Chemistry Analyzer

Automatic Intermittent Chemistry Analyzer

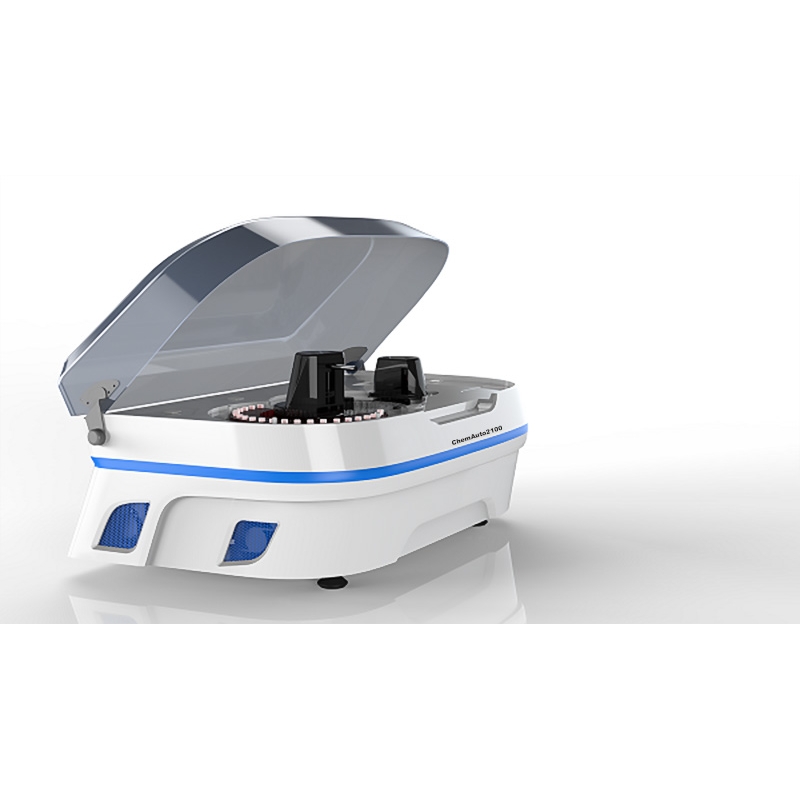

ChemAuto2100

More info

Advanced technology: Adopted CAS newly developed grating system, covering the wavelength range of 340nm to 900nm, higher accuracy and longer life.
Simple operation: No special work experience and technical training, staff two hours to learn can test sample on machine ,can be set up six test parameters in a continuous detection method to detect, easy to operate.
Quick Start: No need to waste time waiting for the system hydraulically balanced, after boot and click the software can detect.
Quick End: The system automatically performs the cleaning and monitoring cleaning results, no need for complex shutdown.
Accurate result: the use of temperature-controlled cuvette, completely eliminating the interference contrast color temperature meter, but also to eliminate the influence of different cuvette sample results, with good reproducibility and high accuracy. No manual factors interference, static testing, and the strapless over baseline drift, highly reproducible and accurate data.
Flexible settings: Automatic dilution from stock standard working standard solution, automatic sample dilution and excessive testing.
Low reagent consumption: each sample analysis requires only a few microliters of reagents.
Operating costs low: almost no consumables, instrument does not require frequent replacement hardware.
Operating software: Designed for chemists design, powerful, easy to operate and learn to use, but also easy researchers develop new methods.
Quality control: You can use five quality control, quality control results are automatically stored and can draw quality control charts.

CHEMAUTO series of Intermittent chemistry analyzer is the first automated chemistry analyzer, including intermittent flow cell type chemical analyzer, direct reading intermittent chemical analyzers, chemistry analyzers and other portable intermittent variety of products, all to meet the user a variety of demand.

CHEMAUTO series automatic intermittent chemical analyzer principle is classical wet chemical assay. Complete simulation of manual colorimetric operation, high degree of automation, rapid detection speed, and completely eliminate manual data accuracy problems were caused by human factors operating.

CHEMAUTO degree of automation is much higher than continuous flow analyzer (CFA) and flow injection analysis (FIA). Analysis of the whole process is not flowing liquid, no bubbles, no need to wait for steady baseline, baseline drift and no more troubled with too static colorimetric detection, more accurate analysis results.

CHEMAUTO computer controls the entire reaction process, sensors and monitors for reagents, samples, quality control, chemical reactions and cleaning steps and monitor the entire process anomalies alarm, truly fully automated testing.

CHEMAUTO integration advantages of similar foreign products and bold breakthrough, using a grating spectroscopic techniques, wider range of applications.


CHEMAUTO Applications

Surface water, drinking water, wastewater routine testing parameters

Ammonia

Hardness

Sulfate

Chloride

Kjeldahl nitrogen

Alkalinity,

calcium ,

silicate

sulphate

Kjeldahl phosphorus

Chroma

Chlorine

 Chromium (IV)

 Phenol

  TN

Nitrite

Nitrate

Total dissolved iron

Cyanide


Soil and plant extracts routine testing parameters

Ammonia

Phosphate

Calcium

Nitrite

 Chloride

 Boron

Nitrate

Total Kjeldahl nitrogen

Total Kjeldahl phosphorus



Parameters

ChemAuto 1100

ChemAuto 1200

ChemAuto 2100

Detection method

Flow Cell Formula

Flow Cell Formula

Direct reading

Detection method

Endpoint detection, differential detection, timing detection, motion detection

Endpoint detection, differential detection, timing detection, motion detection

Endpoint detection, differential detection, timing detection, motion detection

Sample tray

60, can be placed on the sample, blank, standard solution or control

60, can be placed on the sample, blank, standard solution or control

110, can be placed on the sample, blank, standard solution or control

Reagent tray

27, Peltier cooling

27, Peltier cooling

36, Peltier cooling

dilution

1000ml syringes, precision 1ml, automatic zero setting, accuracy ±0.5% (5ml-1000ml)

1000ml syringes, precision 1ml, automatic zero Setting accuracy ±0.5% (5ml-1000ml)

1000ml syringes, precision 1ml, automatic zero setting, accuracy ±0.5% (5ml-1000ml)

Reaction disk

96 reaction cell temperature can be controlled, precision ±0.10C

96 reaction cell temperature can be controlled, precision ±0.10C

120 reaction tank, the temperature can be controlled, precision ±0.10C

Splitting system

340-900nm grating system

340-900nm grating system

9 + 1 blank filters

Colorimeter

10mm standard cuvette volume 35ml, cuvette temperature can be controlled, precision ±0.10C

10mm standard cuvette volume 35ml, cuvette temperature can be controlled, precision ±0.10C

10mm optical plastic cuvettes, volume 350ml, cuvette temperature can be controlled, precision ±0.10C

Wash

Automatic cleaning sampling needle

Automatic cleaning sampling needle

Sampling needle inside and outside cleaning, Automatic Clearing
Wash station

Light source

Halogen

Halogen

Halogen

standard solution

Up to 10 standard solutions, standard curve can be stored and the next can be called linear regression or polynomial regression

Up to 10 standard solutions, standard curve can be stored and the next can be called linear regression or polynomial regression

Up to 14 standard solutions, standard curve can be stored and the next can be called linear regression or polynomial regression

Test Methods

One way you can set multiple parameters continuously detected

One way you can set multiple parameters continuously detected

One way you can set multiple parameters continuously detected

Detection speed

Up to 150 analyzes / hour (depending on the method)

Up to 200 analyzes / hour (depending on the method)

Up to 300 analyzes / hour (depending on the method)

Liquid level detection

no

no

Have

Automatic cleaning

Have

Have

Automatic cleaning section 7

data transmission

USB Interface

USB Interface

USB Interface

Reagent tray system cooling

Independent power switch, turn off the host still work after cooling

Independent power switch, turn off the host still work after cooling

Independent power switch, turn off the host still work after cooling

Cleaning and Waste Liquid bottle

Have

Have

Have

Ambient temperature

5 ° C - 35 ° C

5 ° C - 35 ° C

5 ° C - 35 ° C

Relative humidity

20% -80%

20% -80%

20% -80%

power supply

220V

220V

220V
