Bacteria resistance inoculation equipment

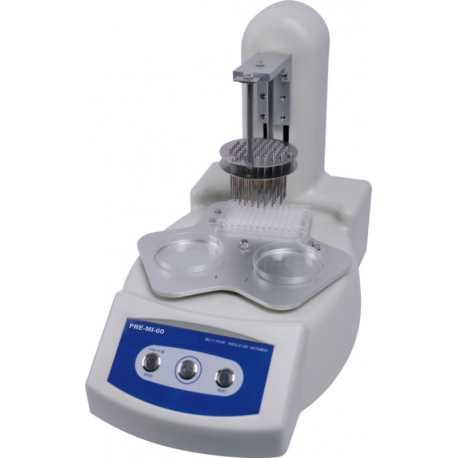

Multi-Inoculation Instrument

PRE-MI-60

Bacterial resistance (agar dilution method) special instruments, automatically carry out and complete the inoculation in 9 seconds, inoculation process is simple, fast and accurate.

More details

More info

Bacterial resistance (agar dilution method) special instruments, automatically carry out and complete the inoculation in 9 seconds, inoculation process is simple, fast and accurate.

Features

  1. Inoculation stick used specially treated stainless steel, special structure designing & processing to eliminating the hydrophobic of inoculated stick, preventing the bacteria colonies drop off when sampling.
  2. Position determination needle to determine the location of bacteria colonies easy, also the sterilization treatment method will be simple.
  3. Fast speed in inoculating to reduce the intensity and avoid operating errors.
  4. Accurate and high reproducibility on bacteria liquid sampling, with reliable detection method to ensure successful vaccination.
  5. Simple operation, rapid Inoculation and speed adjustable to achieve the rapid detection of bacteria diluted simple operation; reduce the intensity of work and to avoid operating errors.
  6. Unique adjustable speed rotary sample tray can automatically locate without operator, only need to replace the sample to complete the vaccination, which greatly shortens the operation time, to meet the requirements of laboratory automation.

Specifications:


Inoculation time (s)

9 or 13

bacteria measure of inoculation (µL)

5 (24 needles), 1 (60 & 96 needles)

Inoculation petri dish (mm)

90

diameter of inoculating needle (mm)

3 (24 needles), 1.5 (60 & 96 needles)

Power (w)

120

Weight (kg)

12

Dimension (mm)

335x250x415

Power supply (v)

220

Configuration:
24 needles: inoculation rack, Inoculation stick * 24 pcs, position needle * 1 pc, positioning box * 1pc, Petri dish * 2 pcs, 96 hole cell culture plate * 1pc
60 needles: inoculation rack, Inoculation stick * 60 pcs, position needle * 1 pc, positioning box * 1pc, Petri dish * 2 pcs, 96 hole cell culture plate * 1pc
96 needles (Optional): inoculation rack, Inoculation stick * 96 pcs, position needle * 1 pc, positioning box * 1pc, Petri dish * 2 pcs, 96 hole cell culture plate * 1pc
