BOD Rapid Measuring Instrument

BOD-06

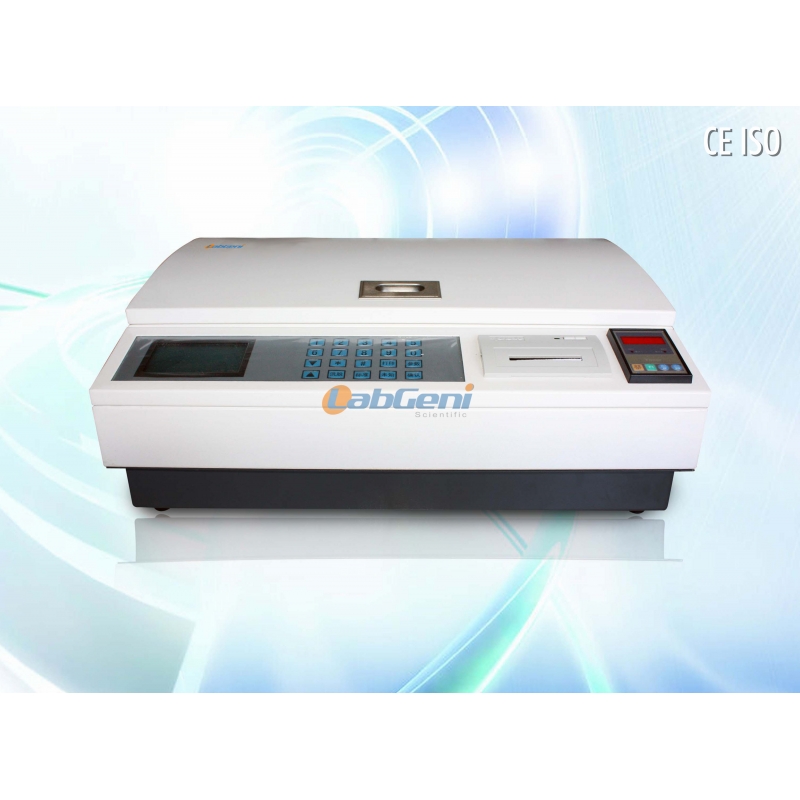

BOD-06 BOD Rapid measuring device is the initial BOD automatic rapid measuring device with the liquid flow path automatic switching system flow-microbial electrode method without the aid of an external injection device automatically rapid determination of BOD in water, the equipment has high degree of automation

More details

More info

Instrument features:
★ Initial liquid flow path automatic switching system with no external injector help can achieve automatic measurement
★ Adopt international advanced BOD5 special bacteria, mezzanine dry film non-toxic, long life
★ Simple to operate and can be controlled by a PC computer ,also can be converted to a single stand-alone operation measurement
★ All data is automatically stored in the historical database, can use Excel software

BOD-06 BOD Rapid measuring device is the initial BOD automatic rapid measuring device with the liquid flow path automatic switching system flow-microbial electrode method without the aid of an external injection device automatically rapid determination of BOD in water, the equipment has high degree of automation, can be controlled by the upper PC computer,also can be converted to a single stand-alone operation measuring ,the instrument is with stable performance, easy operation, accurate measurement, measurement sample only needs 8 minutes, the instrument is in line with the State environmental Protection Administration industry standards, test methods incorporated into the " water and waste water analysis methods, "the fourth edition, and list as a standard method  for HJ / T86-2002 microbial sensors rapid determination, the instrument can be widely used in BOD rapid detection of urban sewage treatment , all types of surface water and industrial wastewater.

Technical Parameters
1, Measuring principle: circulation type microbial electrode method
2, Measuring range: 2 ~ 4000mg / L
3. Sample measurement time: 8min
4. Relative standard deviation: ≤5%
5, Control mode: PC computer can control, but also stand-alone independent operation
6. Injection method: the liquid flow path automatic switching device automatically switches continuous injection (patent number: 200920158907.5)
7, Measurement: automatic measurement, each unknown sample and standard sample automatically and continuously measuring 1-9 times
8, Required sample volume: greater than 40ml
9, Thermostat mode: proportional constant temperature heating control technology, automatic constant temperature maintained by the heater
10. The communication interfaces: RS-232 interface for data transfer and host computer operating
11, biofilm life: drying at room temperature to save more than a year, using more than 30 days after activation
12, Mode switch: manual measurement can be carried out / automatic measurement mode
13, Data storage: All data is automatically stored in the historical database can be edited using Excel software
14 Software Environment: Windows 95/98/200 / XP software localization
15, Switch mode: You can set up a group of 6 automatic timer switch time
16, Cleaning method: elution standard, unknown three pipeline with automatic cleaning function
17, Whole size: length 530 × width 360 × height 200 Weight: 18.5Kg
18, Power supply: AC220V, 50HZ
