High-frequency infrared carbon sulfur analyzer

CS-9000 series high-frequency infrared carbon sulfur analyzer, consisting of automatic constant pressure oxygen supply, high frequency induction furnace, infrared detectors, computer, electronic scales and printers, it is a fast, accurate, reliable automatic analyzer. Analysis process as follows: When the sample combustion in a high frequency furnace, element of carbon & sulfur it contains is oxidized to CO2, CO and SO2, oxygen-vector will be sent into infrared detector, generates an electrical signal via the infrared detector enlarge evacuation computer data processing, final results of the analysis like percentage content of carbon and sulfur can be printed out.

CS-9000 series high-frequency infrared carbon sulfur analyzer induction furnace with a reverse sweep with automatic dust removal function can automatically remove dust, ensure that the analysis results are accurate and reproducible, reduce manual cleaning, improve efficiency, de-dust power comes from the combustion exhaust gas, truly saving and environmental protection.

Common Parameters
Analysis time: 30 ~ 50s
Measuring principle: High-frequency combustion infrared absorption method
Analysis gas: pure oxygen 99.5%
Power gas: Nitrogen or compressed air without water
Power: 220V ±5%
Weight: 85 kg
Dimensions: 565×465×720 mm

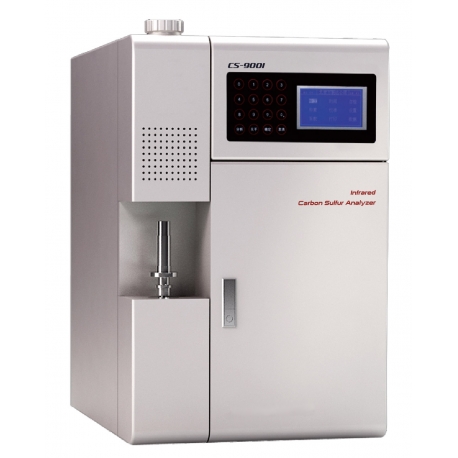

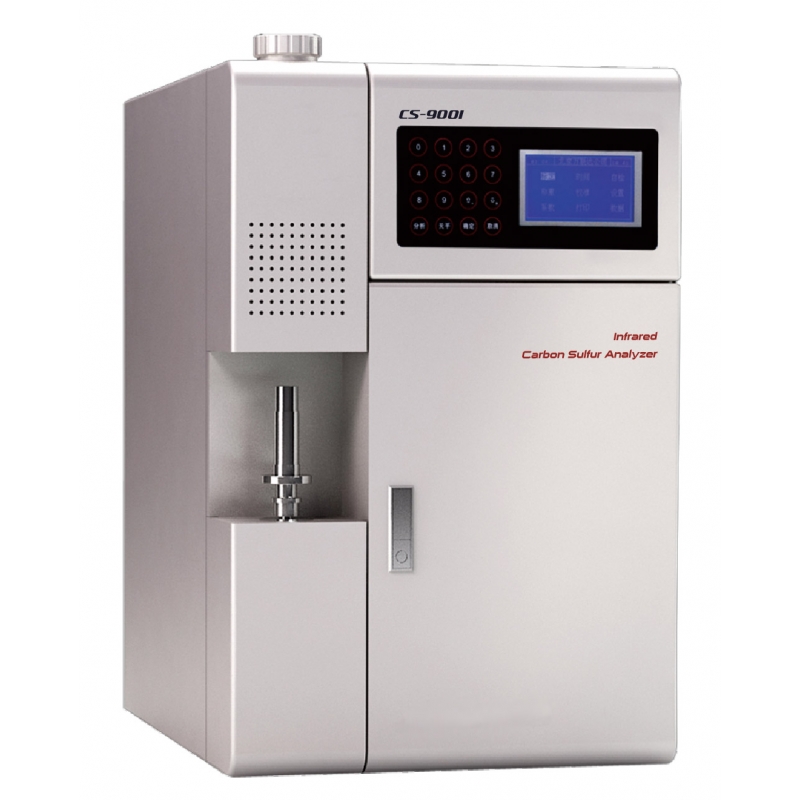

CS-9001 High-frequency Infrared Carbon Sulfur Analyzer
CS9001 series of high-precision high-frequency infrared carbon and sulfur analyzer, adopt high-frequency combustion system and infrared analysis system; Integrated structure, with four sets of infrared detection system.


Specifications:
Measuring range: Standard sample weight
Carbon element:
C1: 0.001 ~ 50% expandable up to 100%
C2: 0.00001 ~ 0.5%
Sulfur:
S1: 0.1 ~ 60% expandable up to 100% (optional)
S2: 0.00001 ~ 5%
Sensitivity: 0.1ppm
Repeatability:
Carbon R S D ≦ 0.5%
Sulfur RSD ≦ 1.5%
Accuracy:
Carbon: better than ISO 9556 standard
Sulfur: Better than ISO 4935 standard
