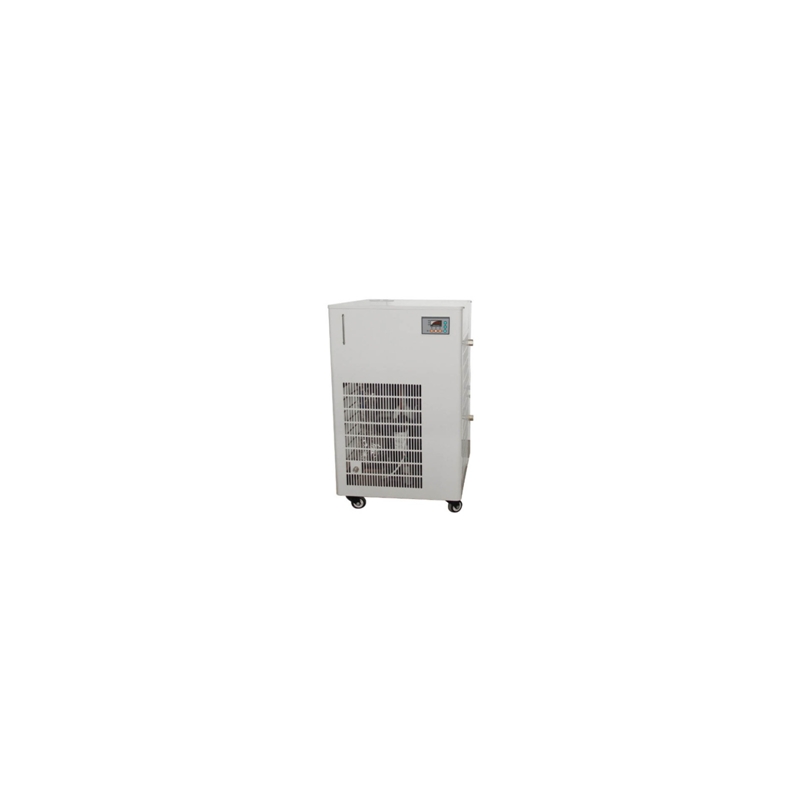

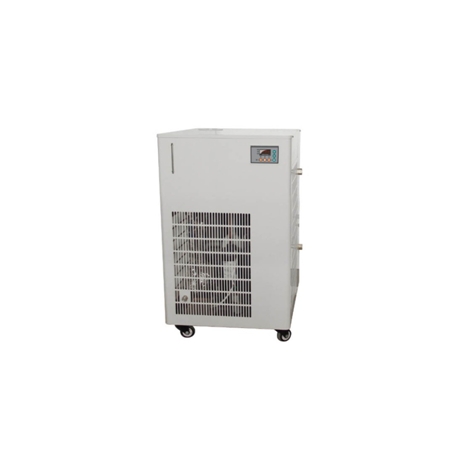

-15°C Closed Cycle Circulation Chillers

LCC Series

Provide circulating cooling water with constant flow and pressure to meet the needs of cooling-required machines and facilities. Achieve the purpose of guaranteeing facilities working well and saving water.

More details

More info

CHARACTERISTICS OF USES

  1. Especially for small Rotary Evaporator with reasonable design and delicate figure which can effectively save space. It can be used on worktable or ground. (LCC-400)
  2. Made especially for large rotary evaporator, Glass Reactor, Electrophoresis Apparatus, Electronic Speculum, Laser and CT machine. (LCC-1000/3000)

FEATURES

  1. Circulating joint nozzle can circumvolve for 360°C. Easy to make any system connection.
  2. Combine with Rotary Evaporator and Vacuum Pump to form a complete small experimental facility. (LCC-400)
  3. High cooling power can meet cooling needs for several (the quantity is determined by the specification of the rotary evaporator) or large-scale Rotary Evaporator. (LCC-1000/3000/5000)
  4. Water lever display function, which can help observe water level directly (LCC-1000/3000/5000).
  5. All parts connecting with secondary refrigerant adopt stainless steel (SUS standard) and macromolecule anti-rot substance.
  6. Cooling compressors adopt products made in Japan with high reliability and can work for a long time.
  7. Air cooling design saves the precious water resources
  8. Security protection function like freeze protection, block protection, low liquid level protection, etc.
  9. Easy and visual to operate

SPECIFICATIONS


Model

LCC-400

LCC-1000

LCC-3000

LCC-5000

Tank capacity (L)

3

10

35

35

Lowest temperature (°C)

-15°C

-15°C

-15°C

-15°C

Working temperature (°C)

-15～25°C

Ambient temperature (°C)

≤25°C

Relative humidity

≤60%

Power supply

220V/50Hz

Temperature display mode

Digital

Temperature accuracy

±2°C

number of sensor

Pt100

Adjustable range

±50°C

Setting mode

Random setting within using temperature range

Safety protection

Delay, electric leakage, overcurrent, overheating

Cooling power at 0°C

400W

1000W

3000W

5000W

Power

500W

1380W

1770W

3000W

Refrigerant

R22

R22

R22

R22

Power of circulating pump

15W

280W

370W

370W

Circulating flow (L/min)

20

30

33

33

Pressure pump  (bar)

0.2

1

1.4

1.4

Outer loop interface

hose coupler

Thread: 1/2 inch

Thread: 1 inch

Material of liquid storage tank

1Cr18Ni9Ti

Machine size (mm) (L*W*H)

405×225×560

505×365×790

740×640×880

820×690×1110
