Circulation Chiller

> >>> -20/-40°C Immersion Chiller

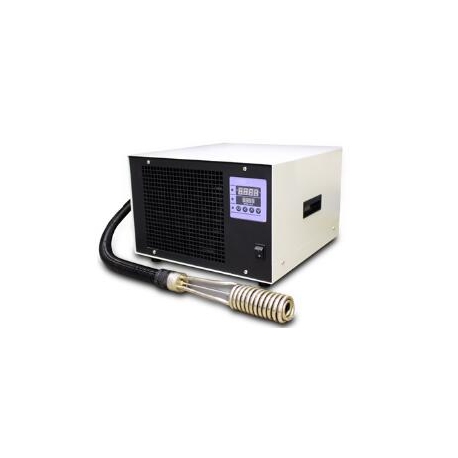

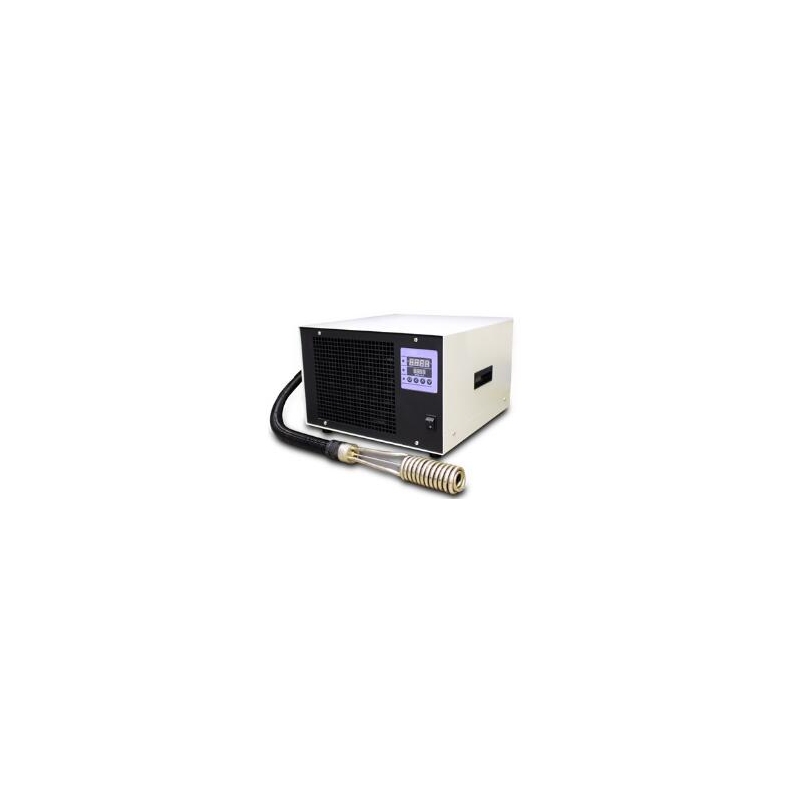

-20/-40°C Immersion Chiller

IC Series

This series of multi-function cooler compressor refrigeration, cooling pipe and the hose connection between the host, light and flexible, can be placed in a variety of sump, to be completed by the low-temperature liquid bath. This machine comes with a temperature controller.

More details

More info

This series of multi-function cooler compressor refrigeration, cooling pipe and the hose connection between the host, light and flexible, can be placed in a variety of sump, to be completed by the low-temperature liquid bath. This machine comes with a temperature controller.

Features:

  1. Convenient and flexible to move.
  2. Refrigeration coil volume compact, easy to insert a smaller container.
  3. Dynamic temperature control system, fast response, constant temperature fluctuations.
  4. Refrigeration system of key components such as compressors, fans and other imported brand-name products.
  5. Cooling power to meet the small laboratory analytical instrumentation cooling and thermostat.

Parameters:


Model

IC201

IC202

IC401

IC402

Temp. Range

-20 ~ 20 °C

-20 ~ 20 °C

-40~20 °C

-40 ~ 20 °C

Temp. accuracy

±2 °C

±2 °C

±2 °C

±2 °C

coil size

φ50×150 mm

φ50×150 mm

φ75×180 mm

φ75×180 mm

hose length

1600 mm

1600 mm

1600 mm

1600 mm

Cooling capacity

0°C

300

800

320

780

-20°C

140

400

180

360

-40°C

-

-

60

140

Weight

22KG

25KG

29KG

35KG

Dimension (W×D×H)mm

400×415×280

420×415×280

400×415×280

400×415×280

Power

AC220v  50Hz  6A

AC220v  50Hz  10A
