Ultra Low Temperature Immersion Chiller

UIC Series

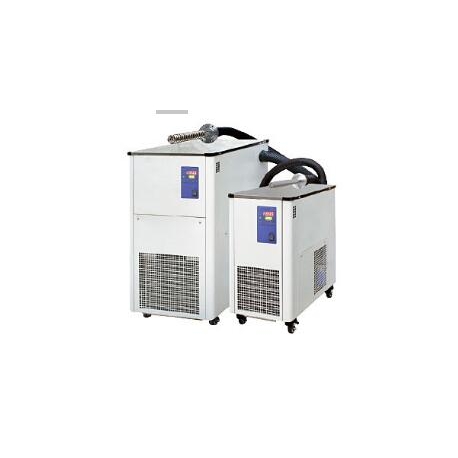

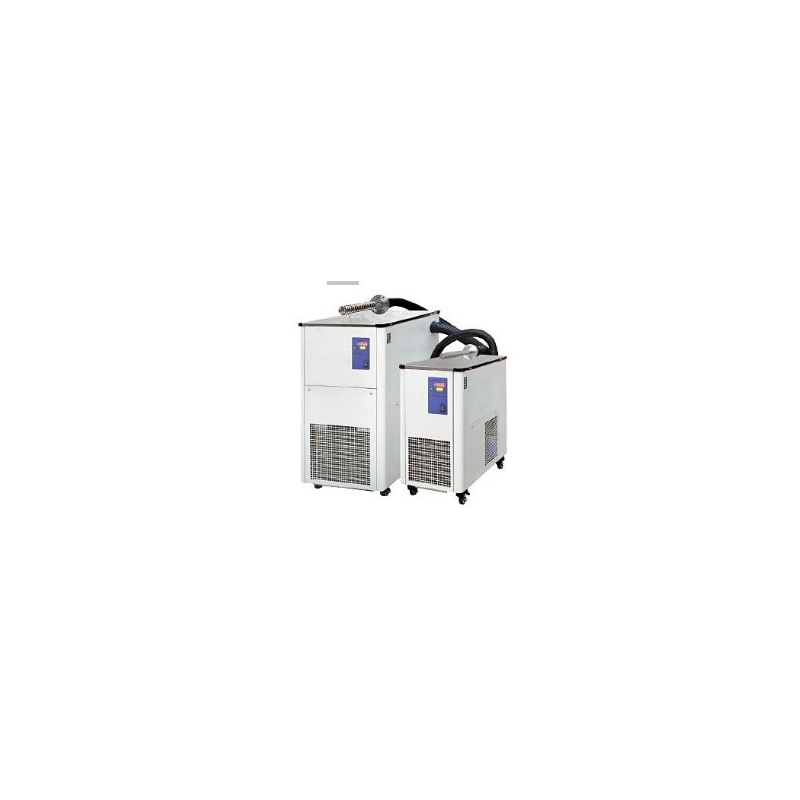

UIC-P Series ultra low temperature immersion chiller used single-stage compression refrigeration, high-effective mixed refrigerant ensure high-effective performance, cooling probe connected with host through hose which is lightweight and flexible.

More details

More info

Description:
UIC-P Series ultra low temperature immersion chiller used single-stage compression refrigeration, high-effective mixed refrigerant ensure high-effective performance, cooling probe connected with host through hose which is lightweight and flexible. It can be used in Parylene vacuum coating, gas condensate trap , cryogenic liquid bath, or works with cold trap & liquid tank for ultra low temperature experiments. It can reach maximum temperature at -145°C, the cooling probe(coil evaporator) can be customized to meets widely requirements.

UIC-B Series ultra low temperature cold trap used auto cascade refrigeration,applicable to gas condensate trap, cryogenic liquid bath, oil and gas recovery, material testing, lyophilized drugs and other purposes. Cold trap size, interface mode can be customized. You can customize the vacuum sealed cold trap. Condensation bottle can be equipped with a variety of specifications. Cold trap volume 3L, 6L, 9L, minimum temperature -80, -100, -120°C.

Specifications:


Model

Max. temp.

Cooling capacity @-100°C

Coil diameter (mm)

Coil length (mm)

Hose length (mm)

Total power (W)

Power supply (V/Hz)

Weight (kg)

Dimensions (mm)

UIC-90P

-90

20 W

25

300

1400

660

220/50

57

300*550*580

UIC-100P

-100

150 W

60

380

1400

860

220/50

72

440*520*930

UIC-120P

-120

100 W

16

600

1400

910

220/50

78

440*520*980

UIC-140P

-145

60 W

40

300

1400

970

220/50

92

500*550*1200

Model

Max. temp.

Cooling capacity @-100°C

Trap diameter (mm)

Trap depth (mm)

Total power (W)

Power supply (V/Hz)

Weight (kg)

Dimensions (mm)

UIC-80B

-82

220 W

160

160

460

220/50

58

300*550*580

UIC-100B

-100

140 W

200

200

590

220/50

66

440*520*930

UIC-120B

-120

90 W

200

300

680

220/50

75

440*520*980
