Clean Bench

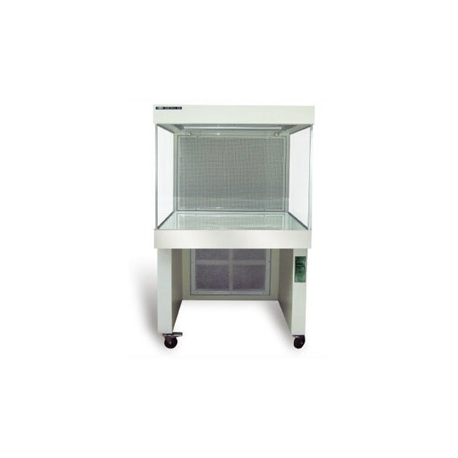

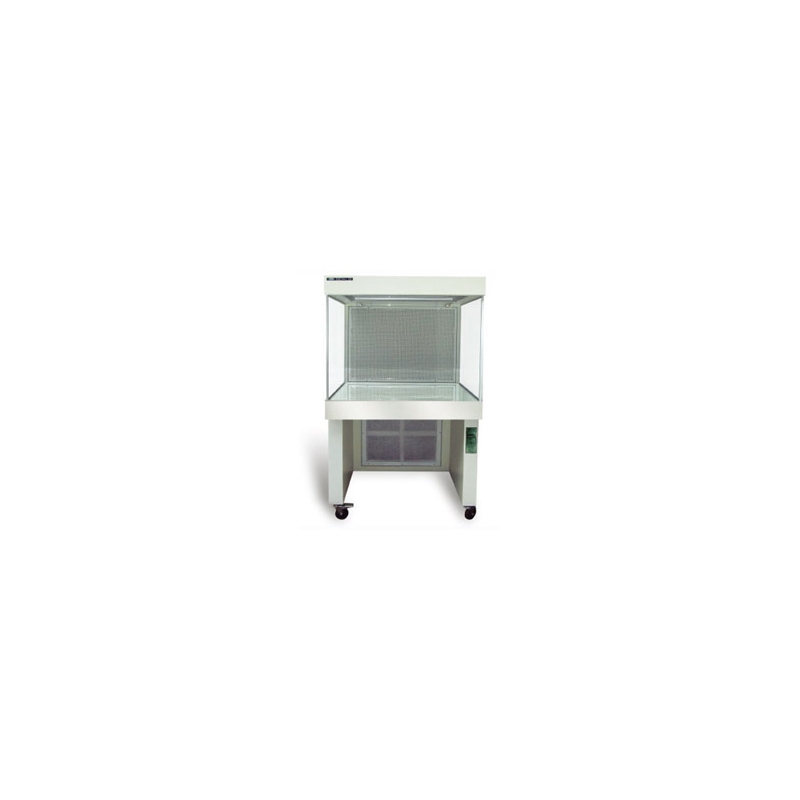

Clean Bench, Single-side, Horizontal air supply

CB -V Series

The clean bench is applicable in medicine, pharmaceutical, chemical experiments, electronics, defense, precision instruments, meters and other industries.

More details

More info

Application Range:
The clean bench is applicable in medicine, pharmaceutical, chemical experiments, electronics, defense, precision instruments, meters and other industries.

Structural Characteristics:

  1. Ultra-thin filter without clapboard, Stainless desktop and glass lateral plate.
  2. High efficient ironclad centrifugal fan with the features of stable work and low noise.
  3. LCD display showing air flow, working time, pressure difference, working status, etc.
  4. Aluminum alloy air throttle to adjust the pre-filter intake air flow.
  5. Two types of air flow directions for clean bench: horizontal or vertical flow.

Horizontal Lamina Flow Specifications:


Model Item

CB-V1BU

CB-V1CU

CB-H840U

CB-H1300U

Clean level

Class 100@≥0.5um(U.S.Federal209E)

Average Air Velocity

0.32~0.66m/s(Recommendedspeed0.5m/s)

Colonies

≤0.5 units/dish. hour(φ90mmPetri dish)

Noise

≤62dB(A)

Vibration Half Peak

≤3um

≤5um

≤3um

≤4um

Luminance

≥300Lx

Electric Power

AC  Single-phase  220V/50Hz

Maximum Power

0.4Kw

0.8Kw

0.4Kw

0.8Kw

N.W. / G. W.(Kg)

80/130

130/210

80/130

130/210

Number of operators, Work Area

One person single side

Two person
single side

One person
single side

Two person
single side

Size
(cm)

W1: Workspace W

82

168

72

118

D1: Workspace D

48

48

65

65

H1: Workspace H

60

60

57

57

W: Dimensions W

90

175

84

130

D: Dimensions D

72

72

82

82

H: Dimensions H

146

146

143

143

Package Size(cm)

100×84×163

189×84×163

98×94×160

144×94×160

HEPA Filter

Dimensions

820×600×50×

820×600×50×(

760×610×50×

610×610×50×

Qty

1 pc

2 pc

1 pc

2 pc

Fluorescent lamp / UV lamp

20Wx 1 /20Wx 1

30Wx 2 /30Wx 2

20Wx 1 /20Wx 1

30Wx 2 /30Wx 2
