More info

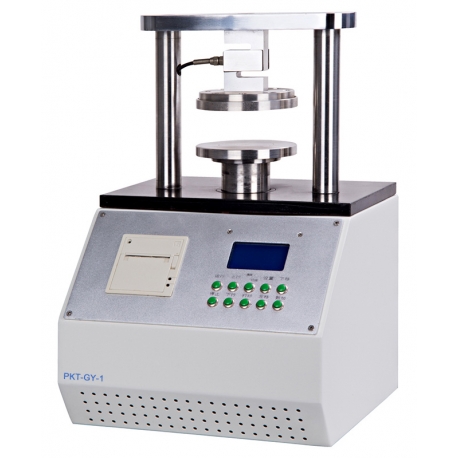

This instrument tests the compression resistance of paper or paper board.
Working principle
Combined with special accessories, this instrument can do following tests:
Ring crush test for paper and paper board;
Edge crush test for corrugated paper board;
Ply adhesive test for corrugated paper board;
Flat crush test for corrugated paper board;
Flat crush test for corrugated paper after laboratory fluting (CCT and CMT).
Standards
GB/T 2679.6, GB/T 2679.8, GB/T 6546, GB/T 6548, ISO 7263, ISO 12192, ISO 3070, ISO 3035
Features
- Imported core parts, high precision.
- Auto judge and return.
- LCD display test data.
- Built-in printer, can print report.
Specifications
Test range | 30~3000N, resolution 1N |
Accuracy | ±1% of displayed value |
Test speed | (12.5±2.5)mm/min |
Parallelism of compression boards | <0.05mm |
Distance between compression boards | ≥70mm |
Compression board size | Φ128mm |
Power supply | AC220V±22V, 50Hz |
Instrument size | 330×350×510mm |
Configuration
Compression Tester, power cable
Optional: special accessories
Accessories:
Name | Test | Picture | Unit | Note |
ring sample stand | Ring Crush Test (RCT) | set | sample thickness: 0.15~1.00mm, 13 steps | |
groove sample template | Corrugated Medium Test (CMT), CCT | set | with or without temperature control unit | |
sample guide plates | Edge Crush Test (ECT) | set (2pcs) | can be substituted by any blocks that can support sample to stand | |
stripping clips | Ply Adhesive Test (PAT) | set | needle diameter: 3mm, 2mm, 1.2mm | |
sample cutter | Flat Crush Test (FCT) | set | sample area: 100m2, 64.5m2, 32.2m2, sample thickness ≤7mm | |
sample cutter | RCT, CMT | pc | sample size: 152x12.7mm, thickness 0.1~1.0mm | |
sample cutter | ECT, PAT | pc | sample size: 25x100mm, 25x80mm, max. length 220mm, max. thickness 18mm |
