Density Tester

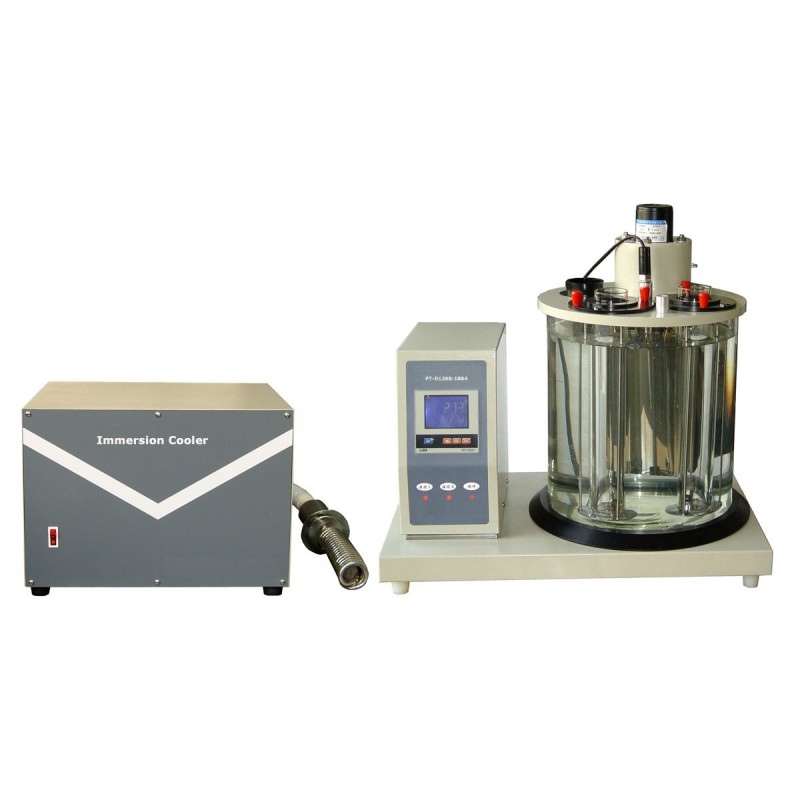

PT-D1298-1884A Petroleum Products Density Tester

PT-D1298-1884A

PT-D1298-1884A Petroleum Products Density Tester is designed and made as per ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method. It is used to determine the density of crude petroleum and liquid petroleum under low temperature.

More details

More info

Summary
PT-D1298-1884A Petroleum Products Density Tester is designed and made as per standards GB/T 1884-2000 Crude petroleum and liquid petroleum products — Laboratory determination of density — Hydrometer method and ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method. It is used to determine the density of crude petroleum and liquid petroleum.

Features

  1. This instrument is a kind of all-in-one machine. The control box adopts humanized design. The control switch adopts light-touch mode. It’s structure is simple and compact. Easy to operate.
  2. It adopts intelligent LCD temperature controller. The control rate is fast and overstrike is small. The temperature control can reach ±0.2°C.
  3. It equips a hard glass vessel and electric stirrer. The temperature in vessel is uniform. Easy to observe the sample.
  4. Equipped with ZL-1 portable cooler which can do refrigeration for the liquid in the vessel according to test requirements.

Specifications
Constant temperature bath
1. Power supply:   AC(220±10%)V, 50Hz
2. Dimension of bath:  Ф300mm×340mm
3. Capacity of cylinder:  500ml
4. Heating power:  700W, 1000W
5. Temperature controller:
(1) Range:  Ambient to 100°C
(2) Accuracy:  ±0.2°C
(3) Sensor:  Pt100
6. Thermometer:  Mercury-in-glass thermometer. Scale division is 0.2°C.
7. Dimension:  560mm×380mm×580mm

Portable cooler
1.Power supply:      AC(220±10%)V, 50Hz
2.Cooling Power:    180W
3.Refrigeration:   Totally enclosed type compressor
4.Refrigerant:      R134a,environment friendly
5.Ambient temperature:     (5 ~ 35)°C
6.Relative humidity:           ≤85%
7.Dimension:       450mm×400mm×300mm
