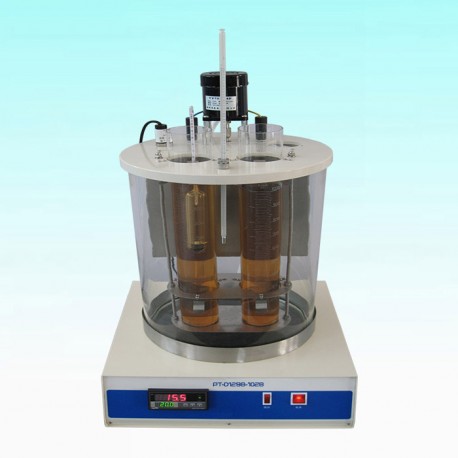

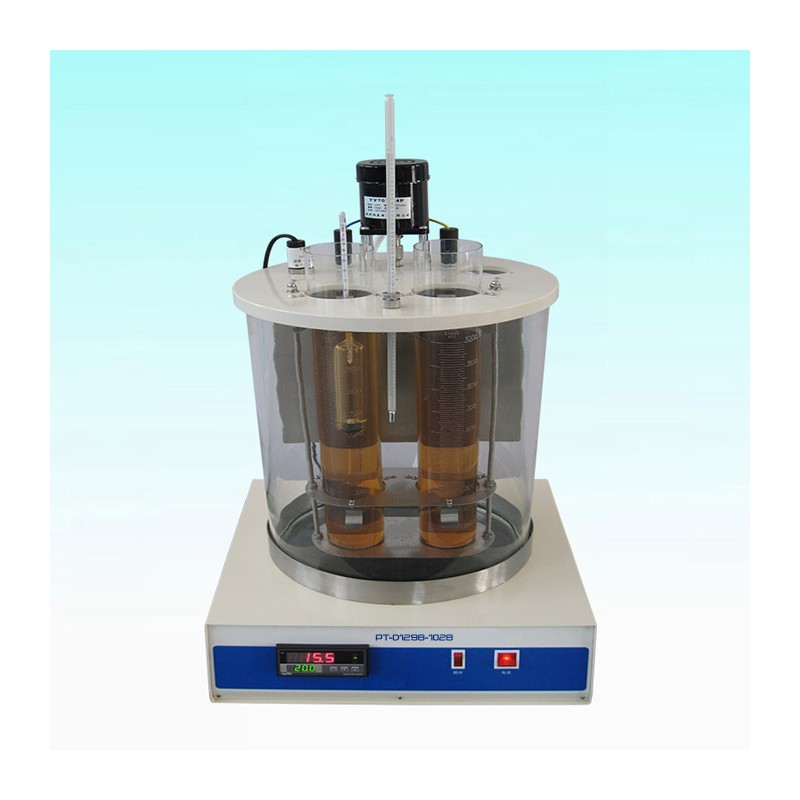

PT-D1298-1028 Crude or Liquid Petroleum Density Tester (hydrometer method)

PT-D1298-1028

PT-D1298-1028 Density determination apparatus for crude petroleum and liquid petroleum products (hydrometer method) conforms to ASTM D1298 Standard Test Method for Density, Relative Density, or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method

More details

More info

Overview
PT-D1298-1028 Density determination apparatus for crude petroleum and liquid petroleum products (hydrometer method) conforms to ASTM D1298 Standard Test Method for Density, Relative Density, or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method, the apparatus covers the laboratory determination using a glass hydrometer in conjunction with a series of calculations, of the density, relative density, or API gravity of crude petroleum, petroleum products, or mixtures of petroleum and nonpetroleum products normally handled as liquids, and having a Reid vapor pressure of 101.325 kPa (14.696 psi) or less. Values are determined at existing temperatures and corrected to 15°C or 60°F by means of a series of calculations and international standard tables.

Features

  1. The instrument can proceed two-way experiments, greatly improves test efficiency.
  2. The instrument adopts stainless steel heater anti-corrosion, long working life.
  3. Digital display meter to show temperature, high precision of temperature control.
  4. Simple operation with elegant structure.

Technical parameters

  • Rated voltage: AC 220V±10% 50Hz
  • Power: 2000W
  • Bath temperature: 20 ~ 95°C (use our PT-D1298-1028 when room temperature is higher than 20°C)
  • Graduate flask: 1000ml
  • Temperature control: Digital display temperature controller
  • Temperature sensor: Pt100
  • Precision of temperature control:± 0.2°C
  • Slot holes: Two holes
  • Mixing method: Mixing motor, 1200r/min
  • Ambient requirement: Temperature15~30°C; Humidity≤85%
