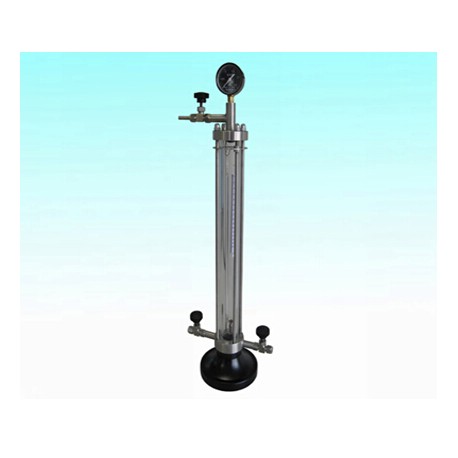

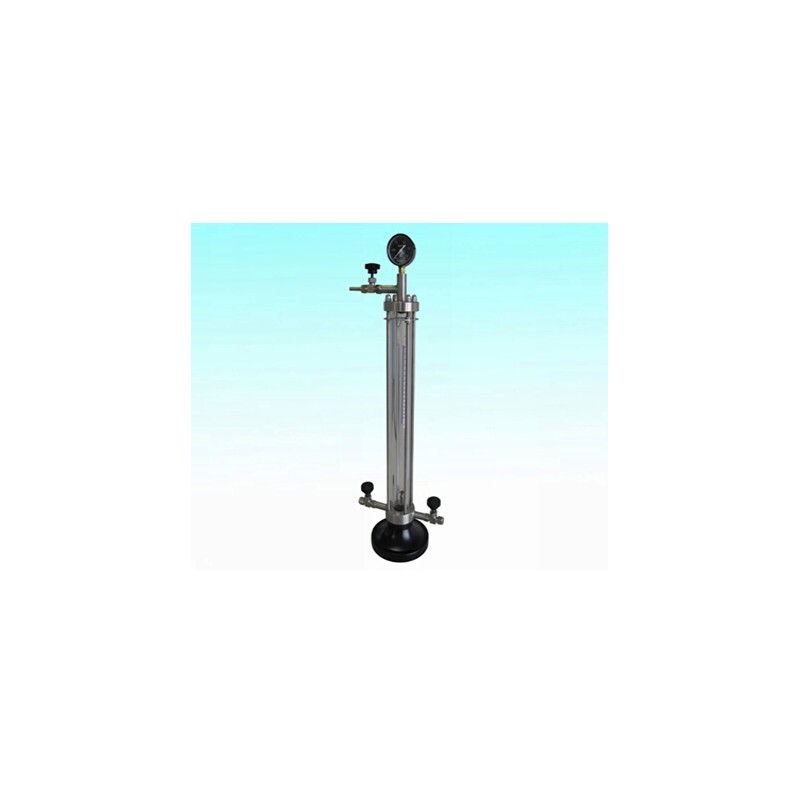

PT-D1657-3004 Pressure Hydrometer Apparatus

Overview
PT-D1657-3004 Pressure Hydrometer Apparatus conforms to the ASTM D1657 Standard Test Method for Density or Relative Density of Light Hydrocarbons by Pressure Hydrometer, is used for testing the density or relative density of light hydrocarbons including liquefied petroleum gases (LPG) having Reid vapor pressures exceeding 101.325 kPa (14.696 psi).

Features

1. The apparatus comprises of pressure gauge, which makes easier to observe the pressure of the inner tube. Ensure the operating safety.
2. A polymethylmethacrylate pressure cylinder, clear observation of the hydrometer and thermometer
3. Reasonable structure with decent appearance.

Technical parameter
1.Rated voltage:  AC220V±10% 50Hz
2.Heating power:         1500W
3.Cooling power: 300W
4.Temperature controlling mode:  Digital display
5.Temperature controlling range:  10~25°C
6.Temperature controlling precision:    ±0.1°C
7.String mode:      pump loop
8.Ambient temperature:   15~30°C  Humidity≤85%
