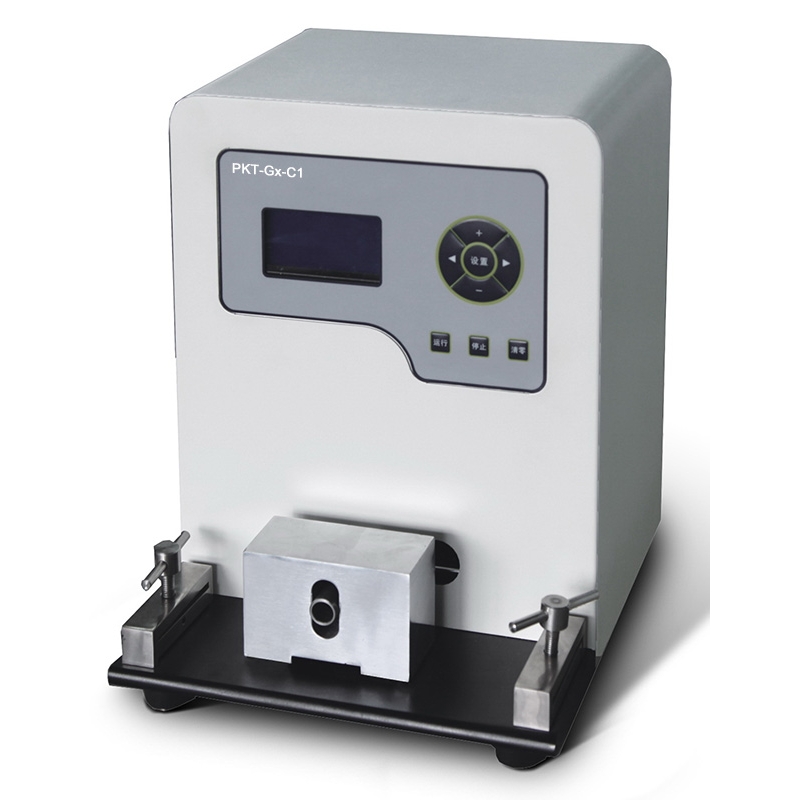

Ink Rub Tester
PKT-Gx-C1
This instrument tests the abrasion resistance of ink layer of relief printing, light sensitive layer of PS board, and coating layer of other related products. LCD display test data, easy to use.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
This instrument tests the abrasion resistance of ink layer of relief printing, light sensitive layer of PS board, and coating layer of other related products. LCD display test data, easy to use.
Working Principle
Use abrader to rub the printed surface of test sample back and forth repeatedly; then measure the abrasive damage status to evaluate abrasion resistance.
Standards
GB/T 7706-2008, ASTM D5264, TAPPI T830
Specifications
Rub pressure | 20±0.2N |
Rub speed | 43 times/minute |
Rub times | 0~999 times |
Rub area | 155×50mm |
Sample size | 230×50mm, can join short samples together |
Instrument size | 26×29×30cm |
