Electronic Tensile Tester
PKT-GBH-1
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info

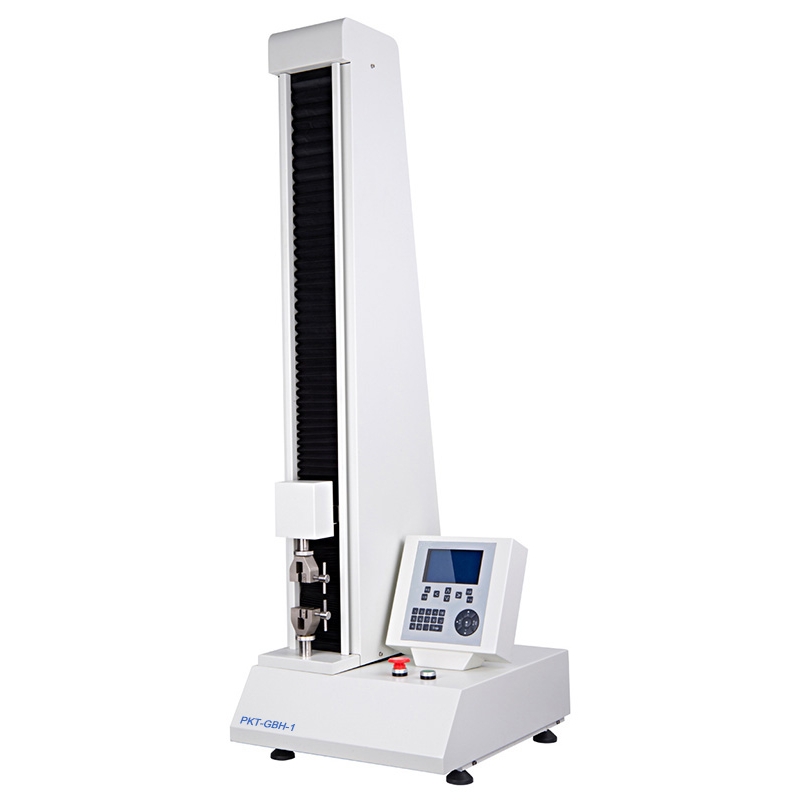

PKT-GBH-1 Electronic Tensile Tester
This instrument can make tensile, peel, heat seal, pierce, tear, compression, bending, cutting tests of plastics, plastic film, composite film, soft elastic material, rubber sheet, adhesives, paper, nonwoven fabrics, infusion bag and so on.
Standards
GB/T 1040, GB 8808, GB/T 6344, GB 13022, GB 10808, GB/T 16578.1, GB/T 17200, GB/T 453, GB/T 2790, GB/T 2791, GB/T 2792, GB 4850, GB/T 7122, QB/T 1130, QB/T 2358, JJG 139, ISO 1184, ISO 527, ISO 5893, ISO 6383-1, ISO 8510-2, ISO 4578, ISO 1798, ISO 8067, ASTM D3811
Features
- Fully functional, can make test of tensile, peel, heat seal, pierce, tear, compression, bending, cutting.
- Wholly automatic, can set auto judgment, auto return and stop; auto process data.
- Built-in operation system, can test independently without computer.
- LCD display test data.
- Imported core parts, high precision, long life.
- High data acquisition rate (100 times/second).
- Can switch units between N, kgf, lbf.
- Three levels of protection; emergency stop button.
- Table standing design, easy operation.
- Manual or pneumatic clips optional; can customize clips.
- Profesional software, simple interface, easy to use.
- Display multiple curves; can zoom and move curves freely.
- Professional test report, can edit and export file in Excel, PDF format etc.
- Simple calibration of force sensor.
Software Interface
Specifications
Force range | 0~500N (0~3000N optional), 1500% elongation |
Force precision | ±0.5% of displayed value (grade 0.5) |
Test speed | 0~500mm/minute, infinitely variable speeds |
Displacement precision | ±0.5% of displayed value |
Travel distance | 800mm |
Test sample width | ≤30mm |
Instrument size | 46×52×141cm |
Configuration
Electronic Tensile Tester, software, communication cable, power cable, tensile clips
Optional: various clips, computer
Clips for tensile tester
Picture | Model | Standards | Name | Spec. | Application |
GBJ-1 | YBB 00112003 | tensile clips | sample width 0~30mm | tensile test | |
GBJ-2 | YBB 00342002 | pierce clips | sample size Φ100mm | pierce test | |
GBJ-3 |
| pneumatic clips | sample width 0~30mm | tensile test of woven bag, thin metal strip, rubber film etc. (used for gate type tensile tester, can customize) | |
GBJ-4 |
| pneumatic clips | sample width 0~30mm | tensile test of woven bag, thin metal strip, rubber film etc. (used for gate type tensile tester, can customize) | |
GBJ-5 | YBB 00342002 | container permeation test device | test space 200×60mm | container permeation test of infusion bag, can, bottle, box etc. | |
GBJ-6 | YBB 00402003 | clips for aluminum-plastic cap opening force test, with bottle | customize according to bottle capacity and height | medical bottle cap opening force test | |
GBJ-7 | YBB 00402003 | clips for bottle cap pierce test, with bottle | can customize pierce needle | pierce test of medical bottle cap rubber plug | |
GBJ-6-1 | YBB 00402003 | clips for aluminum-plastic cap opening force test, without bottle | customize according to bottle capacity and height | medical bottle cap opening force test | |
GBJ-7-1 | YBB 00402003 | clips for bottle cap pierce test, without bottle | can customize pierce needle | pierce test of medical bottle cap rubber plug | |
| GBJ-8 |
| vertical compression test |
| vertical compression test of plastic bottle |
GBJ-9 | YBB 00242004 | clips for pull-ring opening force test |
| opening force test for polypropylene sealed ring-pull lid | |
GBJ-10 | YBB 00102005 | clips for hang force test |
| hang force | |
GBJ-11 | GB 8368-1998 | pierce clips for infusion bottle |
| infusion bottle |
