Electrothermal Digestion

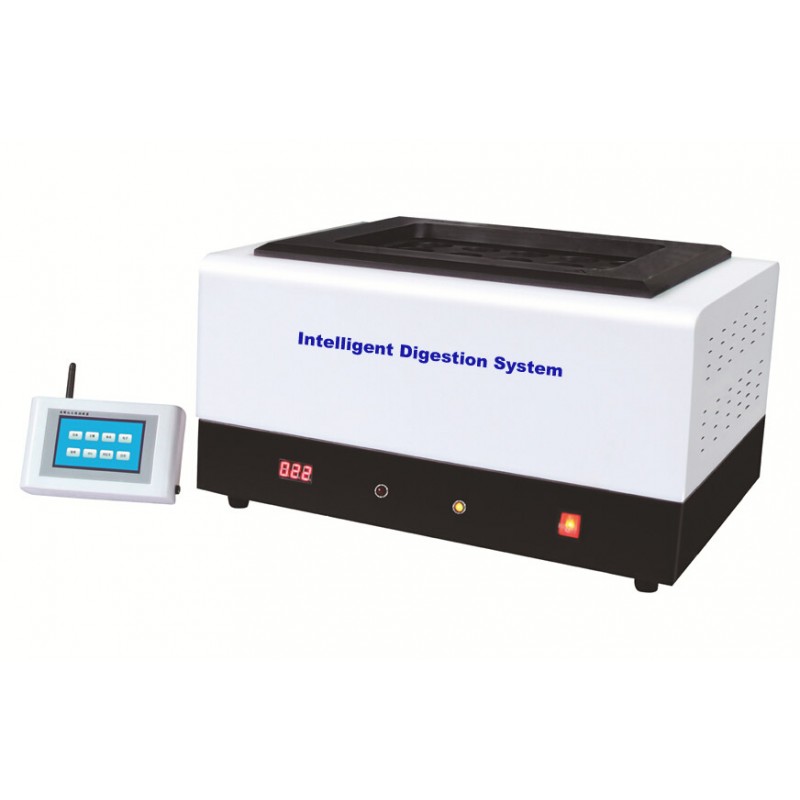

WIFI remote controlled Intelligent digestion system (Graphite or Teflon)

PD W series

PD W series digestion system, WIFI remote control, Graphite or Teflon material, LCD display with PID control, program control;  It is suitable for digestion environmental protection, disease control, scientific research, quality inspection and other fields, rush acid and pretreatment

More details

More info

Application
PD W series digestion system is suitable for digestion environmental protection, disease control, scientific research, quality inspection and other fields, rush acid and pretreatment

Features:

  1. stereo surround heating, good uniformity; quality insulation materials to ensure energy efficient
  2. anti-corrosion, acid and alkali, high temperature, easy to clean
  3. large heating area is able to handle multiple samples, temperature uniformity of holes to reach high digestion rate
  4. Advanced handheld pocket PC control and monitoring, wireless communications, remote operation outside the hood to ensure highly secure for operator, also effectively prevent acid corrosion of electrical equipment
  5. 4.3-inch color touch screen programmable temperature controller, a variety of methods to store Class 7, forty segment program control, working time, temperature gradient, the rate is set automatically stop after free intelligent digestion, complete heating process heating, no staff on duty.
  6. Real-time program status display, real-time curve display, to achieve the heating temperature, heating rate and heating holding time controllable.
  7. Dual sensor, heating block and sample solution can be measured simultaneously, more precise temperature control; Or use A sensor measurement sample liquid sensor measuring the highest temperature 210 °C
  8. Atmospheric digestion, reflux hole design to ensure saving about 50% reagent consumption.
  9. Digestion, acid catch, digestion tank volume can be done in one chamber.
  10. Alarm for over-temperature and automatic power-off function
  11. Continues working in at least 48 hours.

Digestion System Typical applications
1, EPA soil treatment methods: 3010a, 3010b, 3050b, 3060, etc.
2. Water EPA Methods: 200.2,200.7,200.8,200.9,245.1,365.1 etc.
3, electronic products processing methods: SJ / T1365-2006 etc.
4, coating treatment method GB: GB / T22788-2008 etc.
5, soil treatment method GB: GB / T22105.1-2008 GB / T22105.2-2008 GB / T22105.3-2008 etc.
6, food processing method GB: GB / T17138-1997 GB / T5009.11-2003 GB / T5009.17-1996 etc.
7, all wet digestion: program methods can be customized

Specifications:


Model

PD16-20W

PD36-20W

PD54-24W

PD20-42W

PD36-42W

Voltage

220V/50Hz

Heating element

Aluminum + Teflon

Graphite

Heating power (W)

1500

2100

3000

3000

3000

Highest temp.(°C)

220

260

450

Temp. resolution (°C)

0.1

Temp. accuracy (°C)

 ±0.2

Temp. uniformity between holes (°C)

±1.5

Temp. uniformity of single hole (°C)

±0.5

Sample capacity

16*100ml

36*50ml

54*50ml

20*100ml

36*50ml

Hole size (D*H)mm

Φ44*50

Φ31*50

Φ31*50

Φ44*50

Φ31*50

Size of heating module (L*W*H)mm

470×410×275

510×450×275

620×460×300

520×420×320

500×460×320

Optional

  1. Digestion tube

No.

Model

Material

Withstand temp. (°C)

Height
 (mm)

Diameter
 (mm)

Capacity (ml)

Total capacity
 (ml)

1

BG-16

Borosilicate glass

450

120

42

100

125

2

BG-20

170

150

3

BG-20A

300

250

400

4

BG-36B

180

30

50

100

5

BG-36C

130

68

6

PP-R-36

Total Polypropylene

130

105

7

PF-16

Polytetrafluoroethylene

210

125

42

100

115

8

PF-20

165

135

9

PF-36

125

30

50

68

2. Rack

No.

Model

Material

Size (L*W*H)mm

Hole diameter

1

TBS-16

Stainless steel

280*260*100

Φ44

2

TBS-20

330*260*80

3

TBS-36

320*160*100

Φ32

4

TBT-36

Teflon spray cold-rolled steel sheet

488*149*100
