Existent Gum Tester

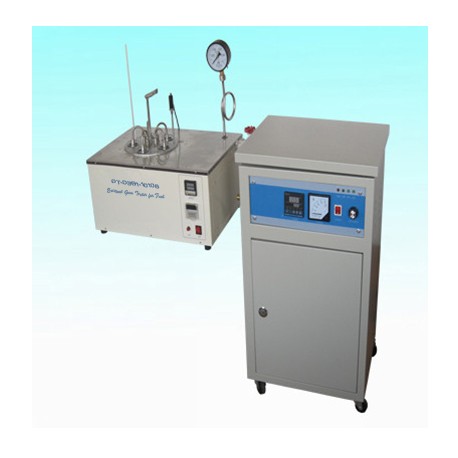

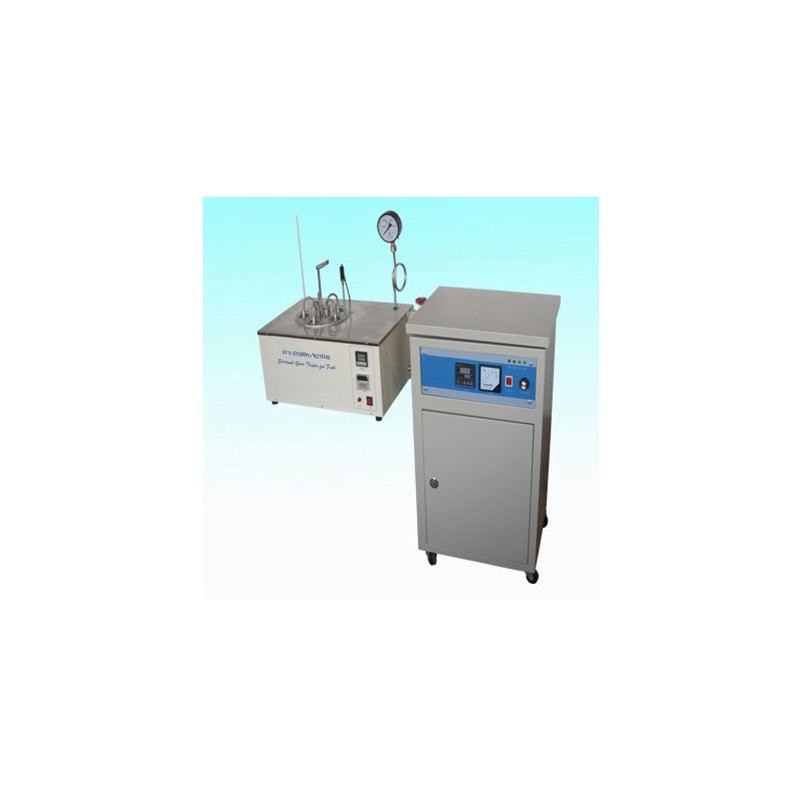

PT-D381-1010B(1010BC) Existent Gum Tester for Fuel(Air jet evaporation method)

PT-D381-1010B(1010BC)

PT-D381-1010B(1010BC) Existent Gum Tester for Fuel (Air jet evaporation method) conforms to ASTM D381standards & GB/T8019 . It is apply to test the existent gum of jet fuel, motor gasoline and other volatile distillates including the products containing alcohol, ethers oxygenated chemicals and sediment inhibit additives.
PT-D381-1010B:equips with 3 holes
PT-D381-1010C: equips with 5 holes

More details

More info

Overview
PT-D381-1010B(1010BC) Existent Gum Tester for Fuel (Air jet evaporation method) is suitable to the standards of GB/T8019 and ASTM D381. It is apply to test the existent gum of jet fuel, motor gasoline and other volatile distillates including the products containing alcohol, ethers oxygenated chemicals and sediment inhibit additives.
PT-D381-1010B:equips with 3 holes
PT-D381-1010C: equips with 5 holes

Features

  1. The instrument consists of metal bath, temperature controlling device, heating device, air source adjusting system and etc.
  2. The metal bath comprises 3 holes or 5 holes, easy to operate, safe to use, efficient to use. Improve working efficiency a lot.
  3. The instrument adopts digital display temperature controller, temperature controlling precision is high. heating output adopts solid-state relay, contactless, sparkless, noiseless, long lefe time, safe and reliable.
  4. The dedicated steam generator processes overheat, water lack and pressure safety. Trebling protection.
  5. The instrument adopts 5-hole metal constant temperature, easy to use, safe and reliable, friendly to the environment. Improve the testing efficiency.

Technical Parameters
1. Rated voltage:AC220V±10% 50Hz
2. Power of main engine: 2500W
3. Power of steam generator: 0~5000W
4. Temperature controlling method: Digital display
5. Evaporation bath temperature:232~246°C
6. Hole of metal bath:5 holes
7. Air flow rate:1000±150ml/s
8. Ambient requirement: Temperature:15~30°C; Humidity≤85%
