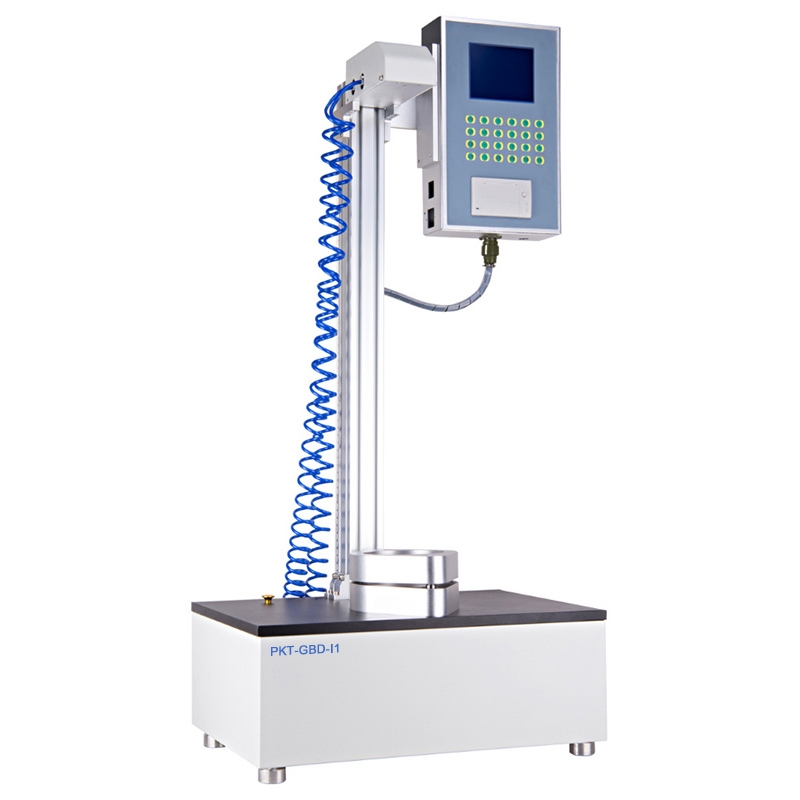

Falling Dart Impact Tester
- Products
- Petroleum & Oil Testing
- Flash Point Tester
- Engler Viscometer
- Water Content Tester
- Kinematics Viscometer
- Distillation Tester
- Density Tester
- Rust & Corrosion Tester
- Sulphur Content Tester
- Acid & Alkali Tester
- Dropping Point Tester
- Demulsibility Tester
- Aniline Point Tester
- Ash Content Tester
- Low Temperature Tester
- Residue Carbon Tester
- Existent Gum Tester
- Vapor Pressure Tester
- Oxidation Stability Tester
- Foaming Characteristic Tester
- Bomb Calorimeter
- Octane & Cetane Analyzer
- Other Tester
- Tablet Drug Tester
- Dissolution Tester
- Disintegration Tester
- Tablet Hardness Tester
- Friability Tester
- Multi-Purpose Tester
- Clarity Tester
- Gelatin Gel Strength Test System
- Bloom Viscosity Tester
- Thaw Tester
- Melting Point Tester
- Moisture Tester
- Transparency Tester
- Vacuum Constant Temperature Drying Case
- Transdermal Diffusion Tester
- Gelatin Freezing Strength
- Refrigeration & Cryogenic
- Life Sciences
- Laboratory
- Spectrometer
- Spray Dryer
- Rotary Evaporator
- Reactor
- Sterilizing & Cleaning
- Water Quality Analyzer
- Chemical Analysis
- Physical Testing
- Centrifuge
- Pathology Equipment
- Optical
- Ultrasonic Homogenizer
- Packaging Testers
- Compression Testing Machine
- Water Vapor Permeability Tester / Moisture Permeability Tester
- Air Permeability Analyzer
- Tearing Tester
- Heat Sealer
- Seal Tester
- Oxygen Permeability Tester
- Friction Tester
- Falling Dart Impact Tester
- Horizontal Impact Tester
- Pattern Thickness Tester
- Evaporated Residues Tester
- Inverted Pressure Sterilized Boiler
- Electronic Tensile Tester
- Heat Shrink Tester
- Leakage Tester
- Hot Tack Tester
- Disc Peeling Tester
- Roller Pressing Machine
- Sample Cutter
- Spectrodensitometer
- Hot Sticky Pull Tester
- NDT
- Agriculture & Food
- Hazardous Chemical Detection
- Fusion Machine
- Testing Chamber
- Filter Integrity Tester
- Petroleum & Oil Testing
- Industry Testing Device
- Featured
More info
This instrument tests the impact resistance of plastic film and thin sheet.
Working Principle
The dart freely falls and impact test sample; measure the weight needed to damage 50% of the number of samples to evaluate impact resistance.
Standards
GB/T 9639.1, ISO7765-1, ASTM D1709
Features
- LCD display test data.
- Easy operation, auto process data.
- Pneumatic clips.
- Auto clip and release dart.
- Built-in printer, can print report.
- Two test modes: Mode A and Mode B.
Configuration
Falling Dart Impact Tester, clips, weights, power cable
User provide: compressed air
Specifications
Test mode | Mode A, Mode B, optional |
Test range | Mode A 50~2000g; Mode B 300~2000g |
Test precision | 1g |
Dart weight | Mode A 30g; Mode B 260g |
Dart size | Mode A Φ38mm; Mode B Φ50mm |
Weights | 5g, 15g, 30g, 45g, 80g, 90g, 8pcs for each |
Size of weights | Mode A Φ30mm; Mode B Φ45mm |
Impact height | Mode A 66cm; Mode B 150cm |
Size of clips | outer Φ150mm, inner Φ125mm |
Sample size | 180×180mm |
Gas source | compressed air, 0.6~0.8Mpa |
Gas port | Φ8mm gas pipe |
Instrument size | 62×40×121/204cm |
