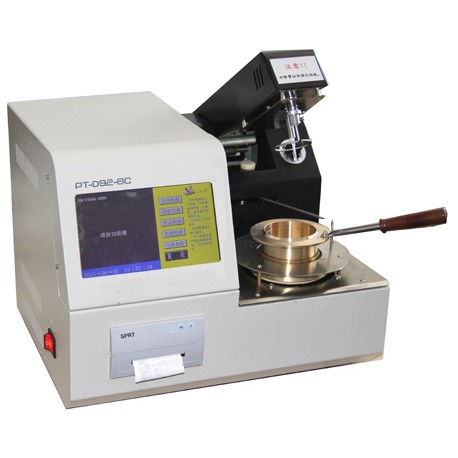

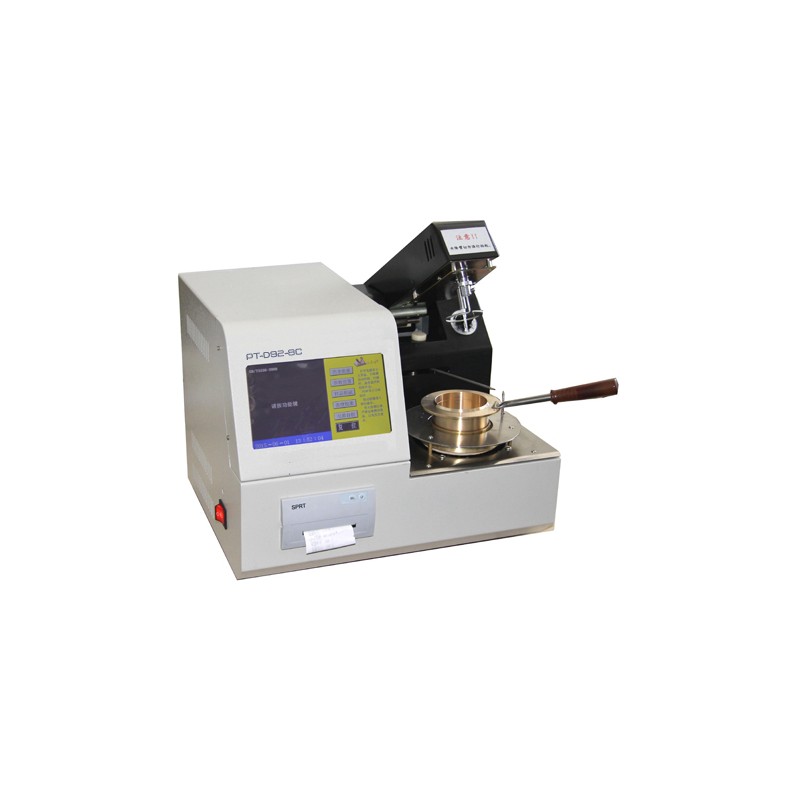

Auto Cleveland Open Cup Flash Point Tester

Purpose
PT-D92-8C/109 is designed and made as per the National Standard GB/T3536, ISO 2592, ASTM 92 “Test Methods for Flash Point and Fire Point of Petroleum Products (Cleveland Open Cup Methods), and T0651 “Asphalt Flash Point and Fire Point Test (Cleveland Open Cup Methods)” in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. It is used to determine flash point of petroleum products and bituminous materials, excepting fuel oil and materials having a flash point of lower than 79 °C.

Features:

1. Color LCD large screen display, full English interactive interface, no logo keyboard, Prompt menu guiding type input to the parameters as the pre-value of temperature, the sample label, atmospheric pressure and the date of the test;
2. Simulation trace showing the curve of heating up and test time, with English software prompt modification function with the test date, the test time and other parameters prompts;
3. Equipped with standard RS-323, 485 computer interface, lower computer storing 100 sets of historical data, can be connected to computer for mass storage data and can be stored for a long time, transmission of data, the host computer can modify the lower computer parameters.
4. Automatic correction of the influence of atmospheric pressure on the test and calculate the correction value;
5. Differential detection, system deviation automatic correction;
6. Open the lid, ignition, detection, print data is done automatically. Electronic ignition, forced air cooling;
7. Can detect ignition (PT-D92-109).

Technical parameters
