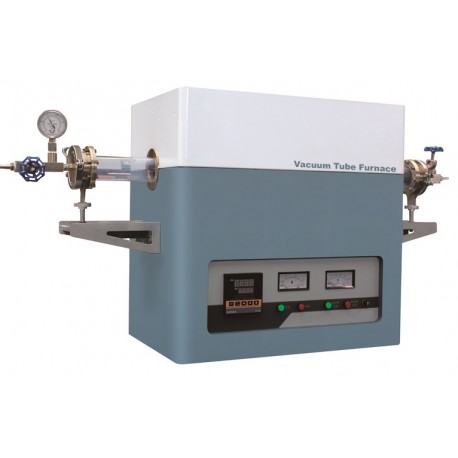

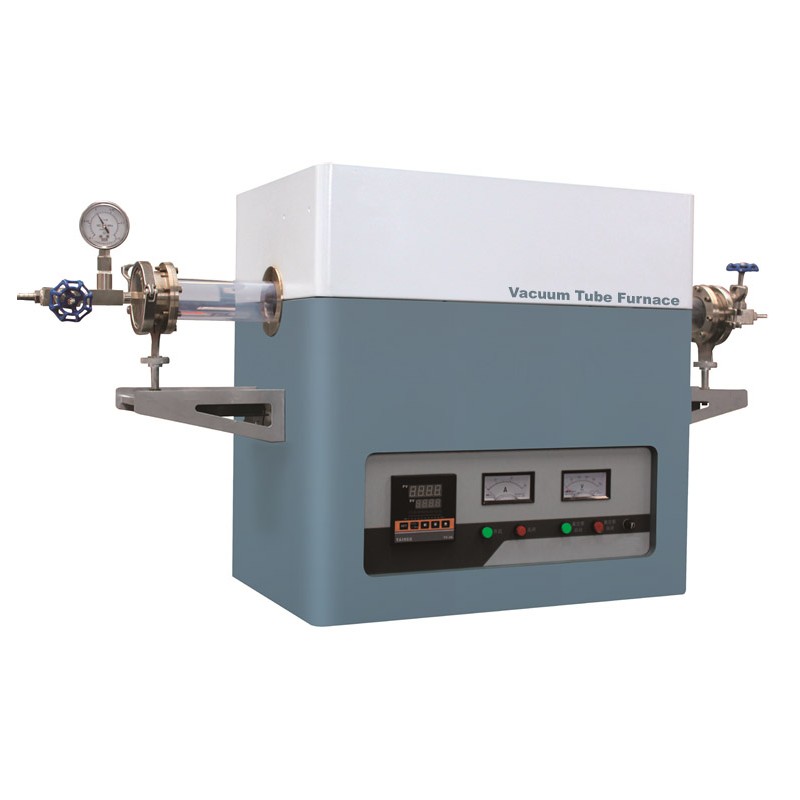

PH-VTF series 1200 °C vacuum ambience tube furnace (canal stove)

PH-VTF series

PH-VTF series 1200 °C vacuum ambience tube furnace (canal stove) adopts the international advanced technology, it has single tube, horizontal tube, open-able, single-zone, dual-zone, three-zones can be chosen.

More details

More info

Application
PH-VTF series 1200 °C vacuum ambience tube furnace (canal stove) adopts the international advanced technology, it has single tube, horizontal tube, open-able, single-zone, dual-zone, three-zones can be chosen. It is safe, reliable, simple operation, high precision temperature control, thermal insulation effect, it can be used in universities, research institutes, industrial and mining enterprises to do high-temperature sintering atmosphere, reducing atmosphere, vacuum annealing. do offer experimental conditions with a vacuum, controlled atmosphere and temperature of the unit under test elemental analysis, physical measurement, and other heating experiments. Also can be used in the semiconductor, nanotechnology, carbon fiber and other new materials fields.

Features:
1, integrated structure
2, double-shell housing air insulation technology
3, open-able furnace chamber
4, Chamber made of high quality materials using vacuum adsorption polycrystalline mullite fiber
5, stainless steel bracket
6, Inlet/outlet gas micro adjustable
7, There is cooling fan under the furnace tube to avoid scald
8, Power cut-off automatically when lid opening.
9, multi-segment program temperature control
10, power leakage protection
11, over-temperature shutdown protection

Specifications

Model

PH-VTF0512K

PH-VTF0612K

PH-VTF0812K

PH-VTF1012K

Power supply

220V/50Hz

Rate power

3 KW

Highest temperature

1200°C

Suggested rate of temp. rise

10°C/min

Furnace chamber size (mm)

Φ120×420

Heating zone length (mm)

400

Constant temp zone length (mm)

200

Furnace tube size (mm)

Φ50/43×1000

Φ60/53×1000

Φ80/72×1000

Φ100/92×1000

Temp. accuracy

±1°C

Furnace tube material

Quartz glass tube

Heating element

OCr27A17MO2 Alloy wire

Dimensions (mm)

620*440*650

Weight (kg)

60
