Flame Spectrophotometer

FP Series

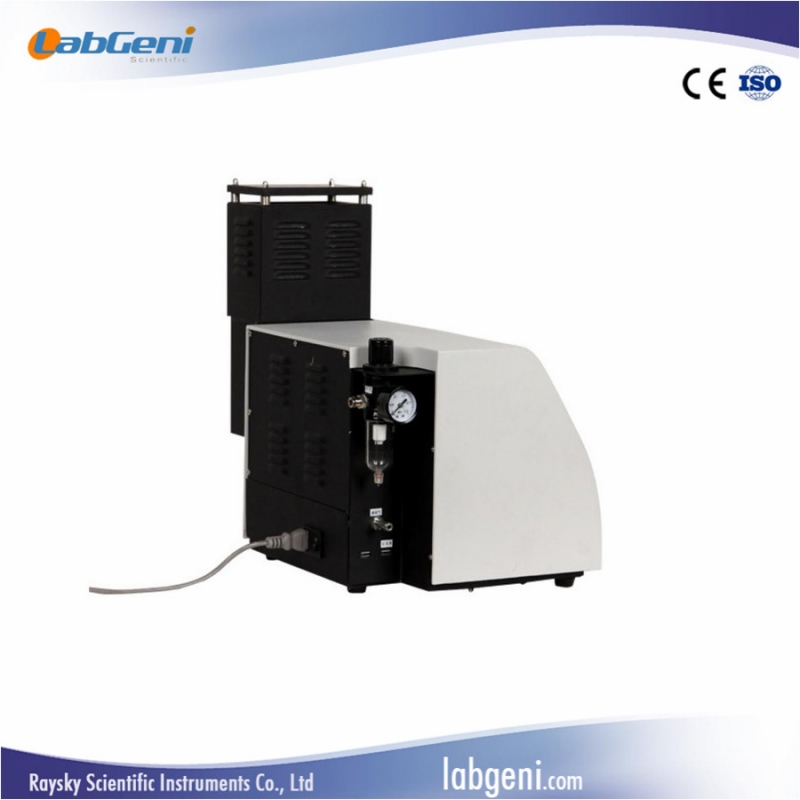

FP series multi-element flame photometer is a newly designed instrument. It has the advantages of small size, easy operation and stable and reliable. Host with 7-inch color capacitive touch LCD screen, can store up to 10 points a group of standard curve 200 sets of test data. FP series flame photometer uses liquefied gas as gas.

More details

More info

Detailed introduction
FP series multi-element flame photometer is a newly designed instrument. It has the advantages of small size, easy operation and stable and reliable. Host with 7-inch color capacitive touch LCD screen, can store up to 10 points a group of standard curve 200 sets of test data. FP series flame photometer uses liquefied gas as gas.

Main feature:
● with K, Na, Li, Ca, Ba concentration of direct reading function. (Depending on model)
● With K, Na, Li, Ca, Ba detection range screen switching function. (Depending on model)
● With correlation coefficient automatic calculation function.
● Pre-selected with flame size.
● With a safety flame protection device.
● With data direct printing device (optional).
● Has a USB communication port.
● Optional operating software.

Specifications


Model

FP6450

FP6440

FP6432

FP6431

FP6430

Display method

7 inch color capacitive touch LCD screen

Show results

Concentration value

Reading range

0.000~999.9

Test elements

K, Na, Li, Ca, Ba

K, Na, Li, Ca

K, Na, Ba

K, Na, Ca

K, Na, Li

Number of channels

5

4

3

3

3

test limit
mmol/L

K

≤0.004

Na

≤0.008

Li

≤0.015

≤0.015

Ca

≤0.050

≤0.050

Ba

≤0.044

≤0.044

Linearity error
mmol/L

K

≤0.005

Na

≤0.03

Li

≤0.021

≤0.021

Ca

≤0.075

≤0.075

Ba

≤0.066

≤0.066

Response time

<8s

Minimum suction volume

<6ml/min

stability

With the standard solution for continuous injection, 15s within the instrument shows the relative maximum amount of change ≤ 3% 1 test per minute, a total of 6 times, the maximum value of the instrument changes ≤ 15%

Repeatability

≤3%

Graph

Have

printer

Optional

Printer type

Built-in thermal printer

USB interface

Have

Connect to the computer

Yes

Accessories
Host   1 set
Air compressor                1set
Spare parts                    1set
