More info

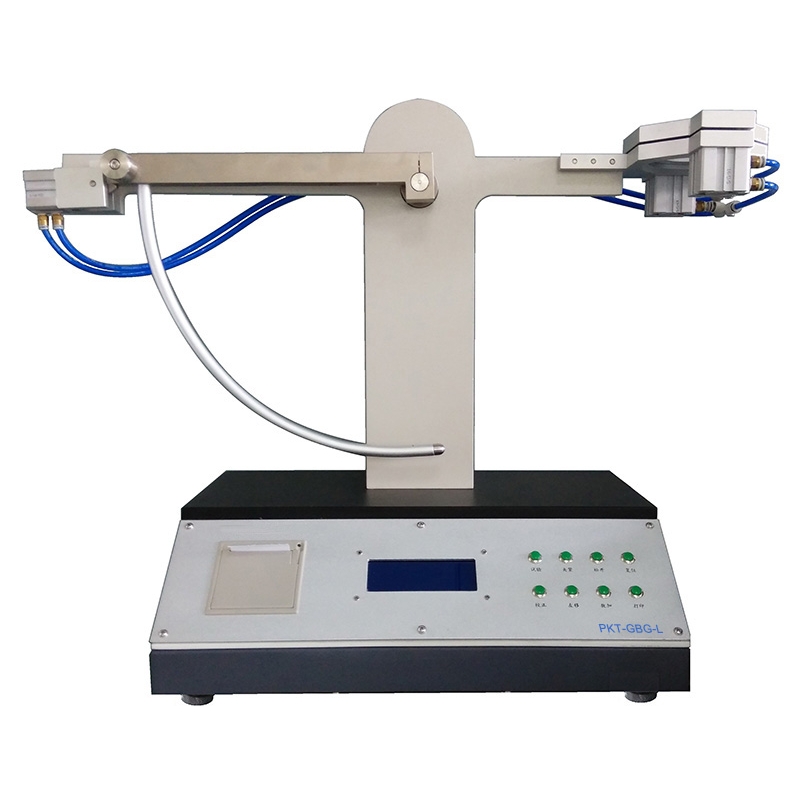

This instrument tests the impact resistance of plastic film, metal foil and so on.
Working Principle
Measure the energy consumed by pendulum breaking sample to evaluate the impact resistance.
Standards
GB 8809, ASTM D3420
Features
- LCD display test data.
- Easy operation, auto process data.
- Built-in printer, can print report.
- Pneumatic clips and release device.
- Can customize clips and impact head.
Configuration
Pendulum Impact Tester, pneumatic clips, power cable
User provide: compressed air
Specifications
Maximum impact energy | 3J |
Test precision | 0.001J |
Pendulum angle | 90° |
Pendulum swing radius | 280mm |
Size of impact head | Φ12.7mm |
Size of clips | Φ60mm |
Size of test sample | 100×100mm |
Gas source | compressed air, 0.6Mpa |
Gas port | Φ6mm gas pipe |
Instrument size | 48×33×54cm |
