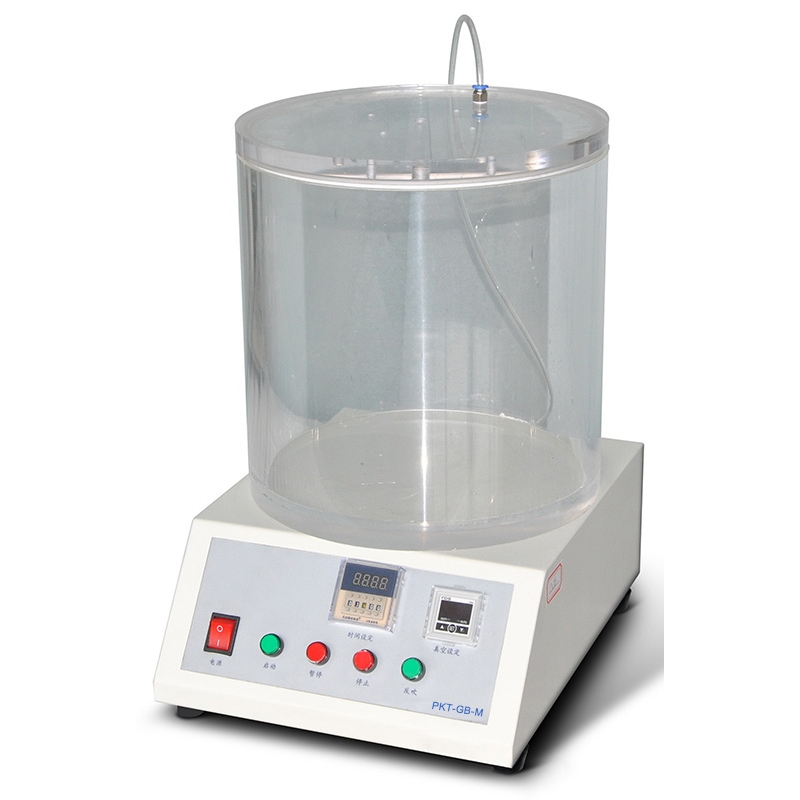

Leakage Tester

Leakage Tester

PKT-GB-M

This instrument tests the hermetic sealing status of closed packaging bag or container.

More details

More info

This instrument tests the hermetic sealing status of closed packaging bag or container.



Working Principle
Immerse closed sample filled with gas under water in test chamber, then create vacuum in the chamber; observe if there are bubbles emmision from inside the sample to check the hermetic sealing status.



Standards
GB/T 15171, ASTM D3078



Features

  1. Use compressed air, pneumatic drive.
  2. Wholly automatic, auto pump vacuum and keep for set time, auto stop and return.
  3. Can manually pause and stop.



Configuration
Leakage Tester, vacuum chamber, power cable, Φ6mm gas pipe
User provide: compressed air





Specifications


Vacuum degree

0~-80Kpa

Vacuum precision

±1% of displayed value

Vacuum keeping time

0.01s~99.99h

Gas source

compressed air, 0.6~0.8Mpa

Gas port

Φ8mm gas pipe

Vacuum chamber size

Φ270×270mm

Instrument size

31×38×50cm
