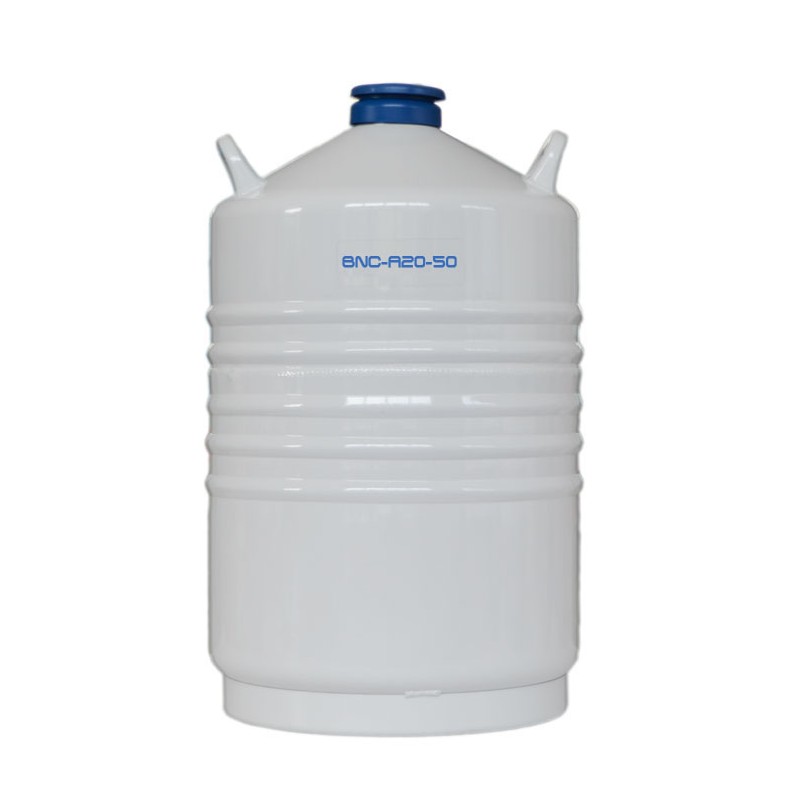

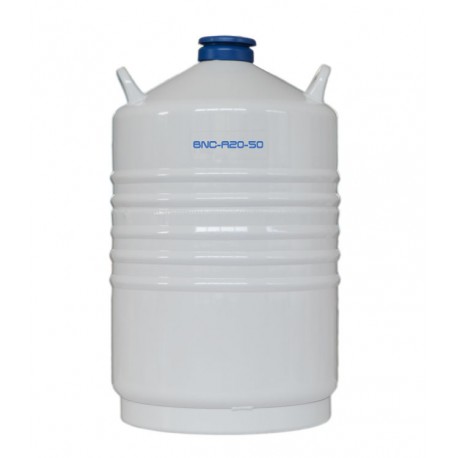

Storing Liquid Nitrogen Container/Dewar, Aluminum alloy

Model: BNC-A Series

Storing Liquid Nitrogen Container/Dewar, Aluminum alloy made of high-strength aluminium alloy, used for long term storage of biological samples

More details

Get Quote

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

PRODUCT QUALIFICATION:
CE certificate National cryogenic container quality supervision and inspection center

PRODUCT FEATURE:
1. Made of high-strength aluminium alloy;
2. Use advanced powder coating technique avoiding of the traditional shortcoming of paintings’ drop;
3. A locked-lid switch for safety of preserved sample is optional;
4. A leather bag is provided for easy taking or moving;
5. Service life is more than five years;
6. An intelligent monitor is optional, to make sure the temperature inside the container is displayed during being moved;

APPLICATION RANGE:

Storing type

Mainly used for long term storage of biological samples

SPECIFICATIONS:

BNC-A Storing type
Model		BNC-A10-80	BNC-A13-50	BNC-A15-50	BNC-A20-50	BNC-A25-50
Capacity (L)		10	13	15	20	25
Empty Weight (KG)		6.5	6.6	8.2	11.7	12.1
Neck (mm)		80	50	50	50	50
Outer Diameter (mm)		300	310	394	394	394
Height (mm)		540	610	575	656	685
Static evaporation loss rate (L/day)		0.21	0.12	0.11	0.12	0.12
Static holding time (day)		48	109	134	168	208
Canister outer diameter (mm)		63	38	38	38	38
Canister height (mm)		120	276	120	120/276	120/276
Number of canisters (ea)		6	6	6	3~6	3~6
Straw holding capacity (single level)	0.5ml	-	-	792	792	792
Straw holding capacity (single level)	0.25ml	-	-	1788	1788	1788
Straw holding capacity (double level)	0.5ml	1508	-	-	1284	1284
Straw holding capacity (double level)	0.25ml	3324	-	-	2832	2832
Lockable lid is optional (ea)		√	√	√	√	√
Intelligent monitor is optional (ea)		√	√	√	√	√

BNC-A Storing type
Model		BNC-A30-50	BNC-A30-80	BNC-A35-50	BNC-A35-80	BNC-A50B-50
Capacity (L)		31.5	31.5	35	35	50
Empty Weight (KG)		12	12.4	14	14.2	19.3
Neck (mm)		50	80	50	80	50
Outer Diameter (mm)		461	461	461	461	461
Height (mm)		655	656	695	698	770
Static evaporation loss rate (L/day)		0.12	0.21	0.12	0.22	0.23
Static holding time (day)		254	147	286	159	213
Canister outer diameter (mm)		38	63	38	63	38
Canister height (mm)		120/276	120/276	120/276	120/276	120/276
Number of canisters (ea)		3~6	3~6	6	6	6
Straw holding capacity (single level)	0.5ml	792	2244	792	2244	792
Straw holding capacity (single level)	0.25ml	1788	5022	1788	5022	1788
Straw holding capacity (double level)	0.5ml	1284	3624	1284	3624	1284
Straw holding capacity (double level)	0.25ml	2832	8460	2832	8460	2832
Lockable lid is optional (ea)		√	√	√	√	√
Intelligent monitor is optional (ea)		√	√	√	√	√
