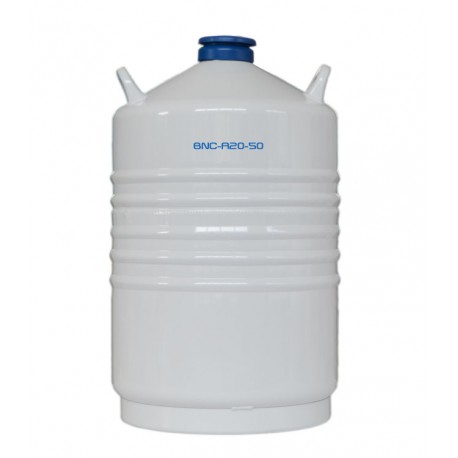

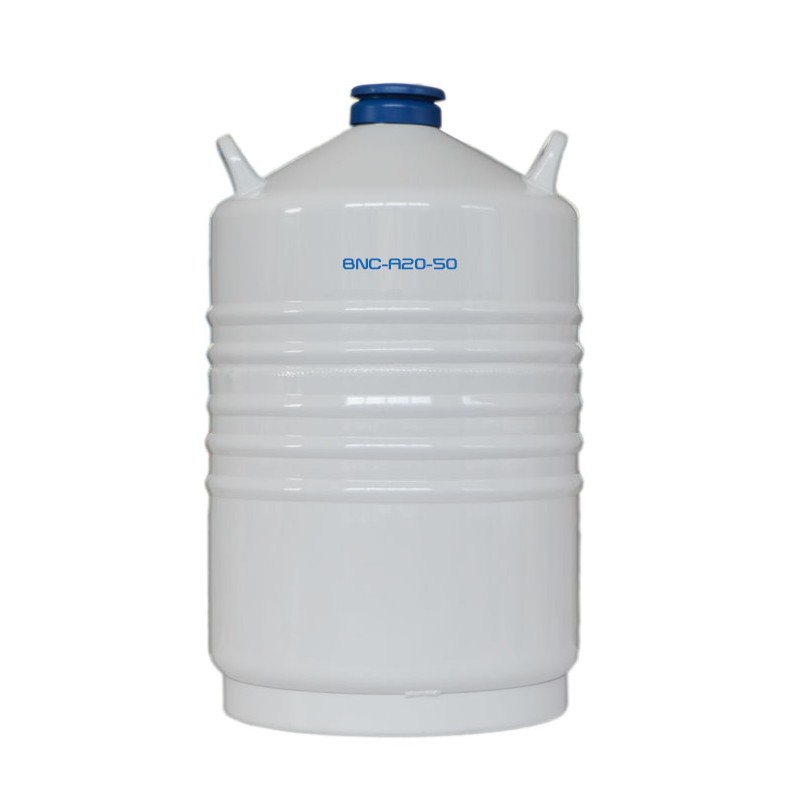

Normal Transportation Series Liquid Nitrogen Container/Dewar, Aluminum alloy

Model: BNC-A Series

Normal Transportation Series Liquid Nitrogen Container/Dewar, Aluminum alloy made of high-strength aluminium alloy, used for delivering biological samples for long distance

More details

Get Quote

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

PRODUCT QUALIFICATION:
CE certificate National cryogenic container quality supervision and inspection center

PRODUCT FEATURE:
1. Made of high-strength aluminium alloy;
2. Use advanced powder coating technique avoiding of the traditional shortcoming of paintings’ drop;
3. A locked-lid switch for safety of preserved sample is optional;
4. A leather bag is provided for easy taking or moving;
5. Service life is more than five years;
6. An intelligent monitor is optional, to make sure the temperature inside the container is displayed during being moved;

APPLICATION RANGE:

Mainly used for delivering biological samples for long distance

SPECIFICATIONS:

Normal Transportation type
Model		BNC-A20B-50	BNC-A30B-50	BNC-A30B-80	BNC-A35B-50	BNC-A35B-80	BNC-A50B-50	BNC-A50B-80
Capacity (L)		20	30	30	35	35	50	50
Empty Weight (KG)		6.9	10.2	14.3	14.5	14.3	19.3	20.1
Neck (mm)		50	50	80	50	80	50	80
Outer Diameter (mm)		394	461	461	461	461	461	461
Height (mm)		656	656	656	695	698	770	766
Static evaporation loss rate (L/day)		0.20	0.19	0.28	0.20	0.29	0.23	0.34
Static holding time (day)		101	159	106	179	119	213	147
Canister outer diameter (mm)		38	38	63	38	63	38	63
Canister height (mm)		120/276	120/276	120/276	120/276	120/276	120/276	120/276
Number of canisters (ea)		6	6	6	6	6	6	6
Straw holding capacity (single level)	0.5ml(ea)	792	792	2244	792	2244	792	2244
Straw holding capacity (single level)	0.25ml(ea)	1788	1788	5022	1788	5022	1788	5022
Straw holding capacity (double level)	0.5ml(ea)	1284	1284	3624	1284	3624	1284	3624
Straw holding capacity (double level)	0.25ml(ea)	2832	2832	8460	2832	8460	2832	8460
Lockable lid is optional (ea)		√	√	√	√	√	√	√
Intelligent monitor is optional (ea)		√	√	√	√	√	√	√
