Storage & Filling Type Liquid Nitrogen Container

BNC-F Series

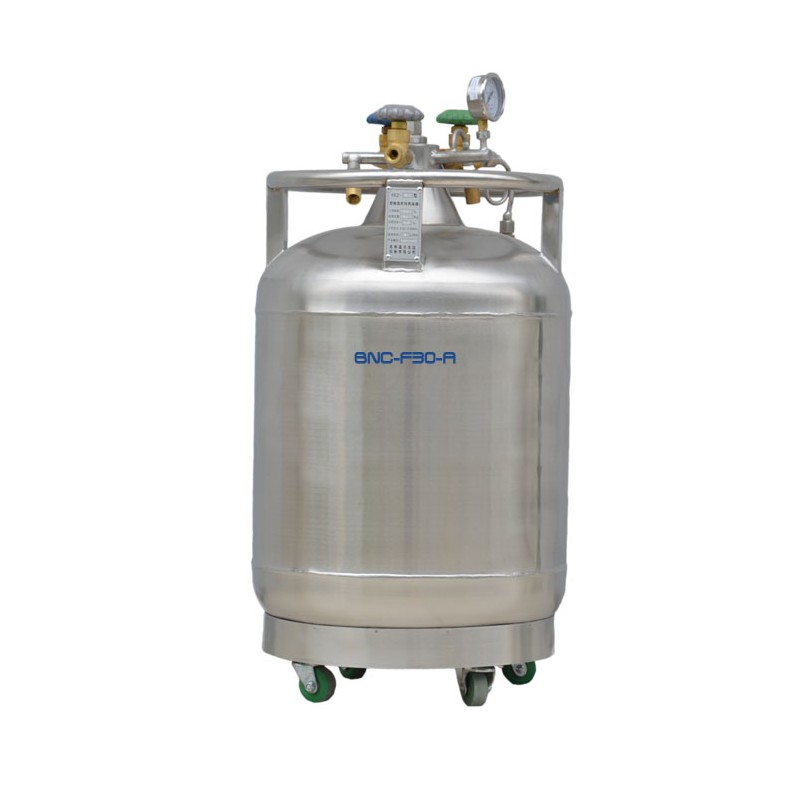

Filling Type Liquid/Vapor Nitrogen Container, used for storing liquid nitrogen and filling liquid nitrogen to other container

More details

More info

PRODUCT QUALIFICATION:
CE certificate National cryogenic container quality supervision and inspection center

PRODUCT FEATURE:
1. Designed for easy use by people;
2. Use supreme American cryogenic valves;
3. Special neck design and super low evaporation rate;
4. Carrying cart is optional for easy moving;
5. Monitoring system is optional to display level and pressure data;

APPLICATION RANGE:
Mainly used for store liquid nitrogen and fill liquid nitrogen to other container. Always be used in animal husbandry, bio-medicine, food, semi-conductor, aerospace, superconductor and other industries.

SPECIFICATIONS:

Liquid nitrogen filling tank

Model

BNC-F5

BNC-F15

BNC-F30

BNC-F50

BNC-F100

Geometric capacity (L)

5.5

16.5

32

55

110

Effective capacity (L)

5

15

30

50

100

Outer diameter (mm)

329

404

454

506

606

Height (mm)

510

750

879

991

1185

Weight empty (KG)

15

23

32

54

75

Neck diameter (mm)

40

40

40

40

40

Daily evaporation rate (%)

3

2.5

2.5

2

1.3

Standard working pressure (Mpa)

0.05

0.05

0.05

0.05

0.05

Maximum working pressure (Mpa)

0.09

0.09

0.09

0.09

0.09

Liquid velocity (L/min)











Setting pressure of the first safety valve (Mpa)

0.099

0.099

0.099

0.099

0.099

Setting pressure of the second safety valve (Mpa)

0.15

0.15

0.15

0.15

0.15

Bursting disc working pressure (Mpa)

——

——

——

——

——

Pressure gauge indication range (Mpa)

0~0.25

0~0.25

0~0.25

0~0.25

0~0.25

Liquid nitrogen filling tank

Model

BNC-F150

BNC-F175

BNC-F200

BNC-F300

BNC-F500

Geometric capacity (L)

165

185

220

330

550

Effective capacity (L)

150

175

200

300

500

Outer diameter (mm)

706

706

758

857

1008

Height (mm)

1188

1298

1265

1459

1576

Weight empty (KG)

102

120

130

202

255

Neck diameter (mm)

40

40

40

40

40

Daily evaporation rate (%)

1.3

1.2

1.2

1.1

1.1

Standard working pressure (Mpa)

0.05

0.05

0.05

0.05

0.05

Maximum working pressure (Mpa)

0.09

0.09

0.09

0.09

0.09

Liquid velocity (L/min)











Setting pressure of the first safety valve (Mpa)

0.099

0.099

0.099

0.099

0.099

Setting pressure of the second safety valve (Mpa)

0.15

0.15

0.15

0.15

0.15

Bursting disc working pressure (Mpa)

——

——

0.47

0.47

0.47

Pressure gauge indication range (Mpa)

0~0.25

0~0.25

0~0.25

0~0.25

0~0.25
