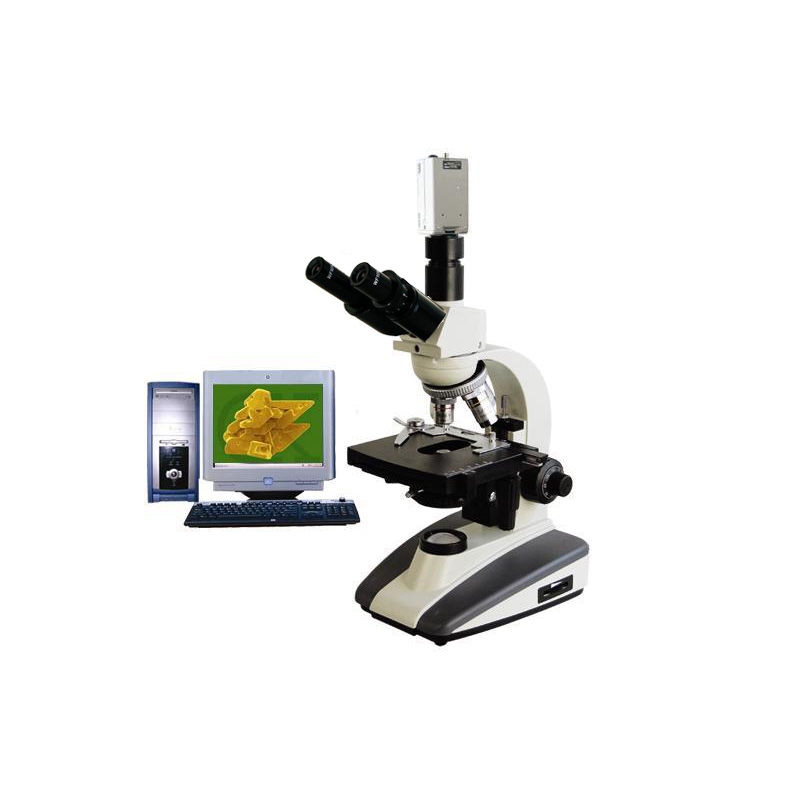

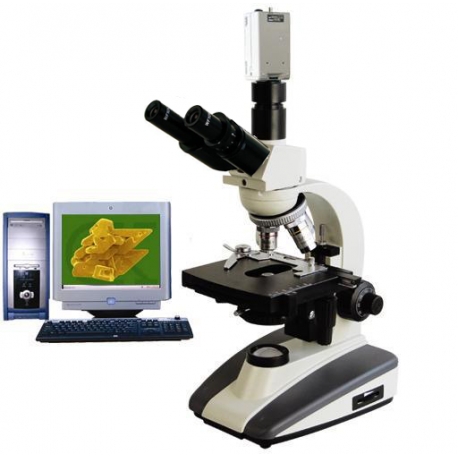

TRINOCULAR MICROSCOPE WITH CCD CAMERA & VISUALISATION SYSTEM

Product Description:
It is widely used in fields like biology, bacteriology, histology and pharmaceutical chemistry, and for clinical trials in medical area and for teaching demonstration in laboratories of colleges and universities. It uses binocular tube that can be rotated at 360 degrees and artificial lighting whose brightness can be continuously adjusted.

Technical Parameters:

1. Eyepiece

1. Objective Lens

1. Optical magnification: 40X-1600X;
2. System magnification: 40X-2600X;
3. Adjustment range of binocular interpupillary distance :55-75mm;
4. Condenser: N.A. 1.25 Abbe, with variable diaphragm;
5. Filter: with Ø32 filter, blue, yellow, green and matte;
6. Mechanical tube length: 160mm;
7. Size of objective table: size of double-layer mechanical moving objective table: 125 × 130mm, moving range: 75 × 50mm, vernier: 0.1mm;
8. Electric light source: 6V/20W Corazon lighting system with its brightness continuously adjustable;

Complete set of equipment
(1). Principal part of microscope: 1 set
(2). Achromatic objective Len: 4 ×, 10 ×, 40 ×, 100 × (oil immersion lens): one for each
(3). Binocular tube: 1 piece
(4).10 ×, 16 × flat-field eyepiece: one pair for each
(5). Filter (blue, yellow, green and matte): one piece for each
(6). Oil for objective lens (cedar wood oil): one bottle
(7). Fuse (0.5A): 1 piece
(8). Alternate halogen lamp: 2 pieces
(9). Digital Color Camera: 1 set
