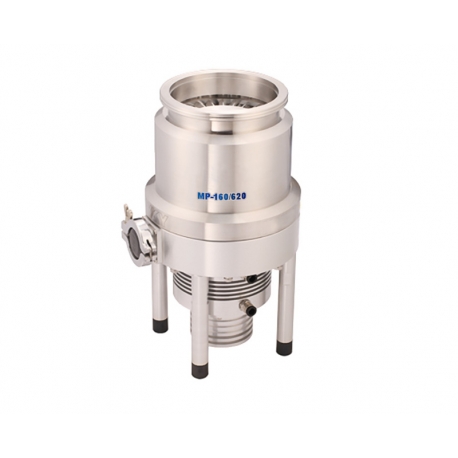

Molecular Pump
- Products
- Petroleum & Oil Testing
- Flash Point Tester
- Engler Viscometer
- Water Content Tester
- Kinematics Viscometer
- Distillation Tester
- Density Tester
- Rust & Corrosion Tester
- Sulphur Content Tester
- Acid & Alkali Tester
- Dropping Point Tester
- Demulsibility Tester
- Aniline Point Tester
- Ash Content Tester
- Low Temperature Tester
- Residue Carbon Tester
- Existent Gum Tester
- Vapor Pressure Tester
- Oxidation Stability Tester
- Foaming Characteristic Tester
- Bomb Calorimeter
- Octane & Cetane Analyzer
- Other Tester
- Tablet Drug Tester
- Dissolution Tester
- Disintegration Tester
- Tablet Hardness Tester
- Friability Tester
- Multi-Purpose Tester
- Clarity Tester
- Gelatin Gel Strength Test System
- Bloom Viscosity Tester
- Thaw Tester
- Melting Point Tester
- Moisture Tester
- Transparency Tester
- Vacuum Constant Temperature Drying Case
- Transdermal Diffusion Tester
- Gelatin Freezing Strength
- Refrigeration & Cryogenic
- Life Sciences
- Laboratory
- Spectrometer
- Spray Dryer
- Rotary Evaporator
- Reactor
- Sterilizing & Cleaning
- Water Quality Analyzer
- Chemical Analysis
- Physical Testing
- Centrifuge
- Pathology Equipment
- Optical
- Ultrasonic Homogenizer
- Packaging Testers
- Compression Testing Machine
- Water Vapor Permeability Tester / Moisture Permeability Tester
- Air Permeability Analyzer
- Tearing Tester
- Heat Sealer
- Seal Tester
- Oxygen Permeability Tester
- Friction Tester
- Falling Dart Impact Tester
- Horizontal Impact Tester
- Pattern Thickness Tester
- Evaporated Residues Tester
- Inverted Pressure Sterilized Boiler
- Electronic Tensile Tester
- Heat Shrink Tester
- Leakage Tester
- Hot Tack Tester
- Disc Peeling Tester
- Roller Pressing Machine
- Sample Cutter
- Spectrodensitometer
- Hot Sticky Pull Tester
- NDT
- Agriculture & Food
- Hazardous Chemical Detection
- Fusion Machine
- Testing Chamber
- Filter Integrity Tester
- Petroleum & Oil Testing
- Industry Testing Device
- Featured
More info
1. Features
Performance reliability: overall composite rotor, high strength, stable performance;
Easy to use: water, electricity, gas interface connection simple and convenient, customers can choose air or water cooled depending on the usage environment and conditions ;
Wide application: for mass spectrometry, surface physics, coating, ion etching, physics and other fields;
2. Technical Index
Product model | MP-160/620 | MP-160/620T | |||
Air inlet flange | DN160CF | DN160LF | DN160CF | DN100LF | |
Pumping speed L / S (air) | 600 | 600 | |||
Compression ratio N2 | ＞109 | ＞109 | |||
Ultimate pressure (Pa) | 6×10-7 | 6×10-6 | 6×10-7 | 6×10-6 | |
Exhaust port flange | KF40 | KF40 | |||
Using a bearing | Precision plain bearings | Precision ceramic bearings | |||
Start Time (min) | ＜5 | ＜5 | |||
Rated operating number of revolutions (rpm) | 27000 | 27000 | |||
Lubrication | Oil lubrication | Oil lubrication | |||
Cooling mode and water temperature | Water-cooled，＜25℃ | Water-cooled，＜25℃ | |||
Mounting | upright±5° | upright±5° | |||
Ambient Temperature (℃) | 5～40 | 5～40 | |||
Weight (kg) | 29 | 29 | |||
