More info
1. Features
Performance reliability: overall composite rotor, high strength, stable performance;
Easy to use: water, electricity, gas interface connection simple and convenient, customers can choose air or water cooled depending on the usage environment and conditions ;
Wide application: for mass spectrometry, surface physics, coating, ion etching, physics and other fields;
2. Technical Index

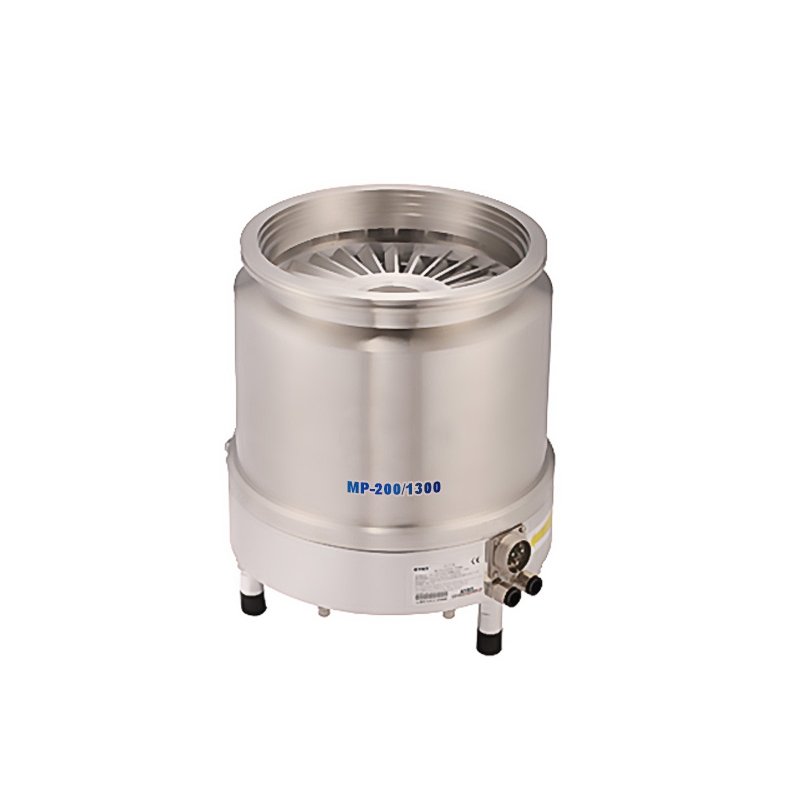

Product model | MP-200/1300 | |
Air inlet flange | DN200LF | DN200CF |
Pumping speed L / S (air) | 1300 | |
Compression ratio N2 | ＞109 | |
Ultimate pressure (Pa) | ＜6×10-6 | ＜6×10-7 |
Exhaust port flange | KF40 | |
Using a bearing | Ceramic grease lubricated bearings | |
Start Time (min) | ＜6 | |
Rated speed (rpm) | 24000 | |
Recommended to use pre-stage pump (L / S) | 8-12 | |
Mounting | Any angle | |
Cooling mode and water temperature | Water cooling，≤25℃ | |
Working temperature (℃) | 5～40 | |
Weight (kg) | 29 | |
