Multi-Purpose Tester

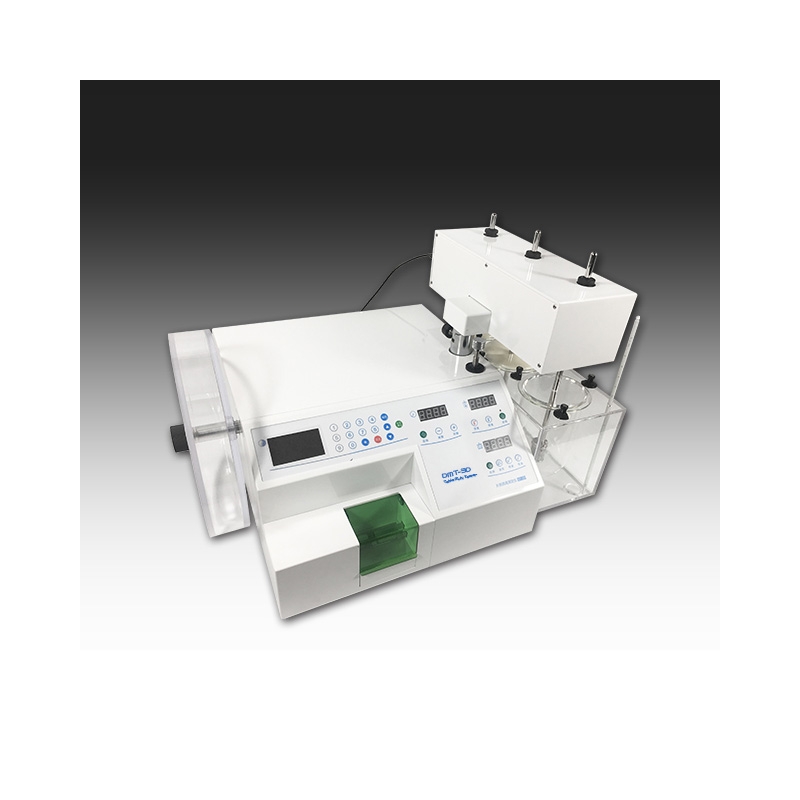

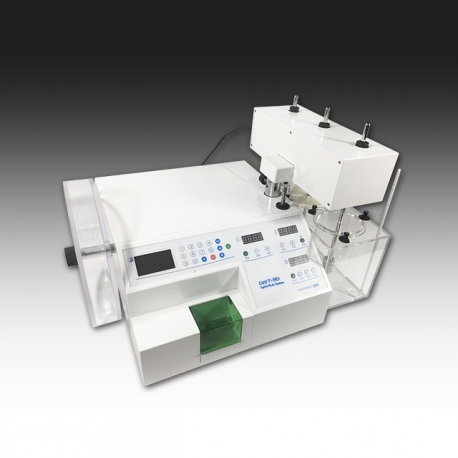

DMT-3D Drug Tablet Multi-Purpose Tester

DMT-3D

DMT-3D type tablet four using tester is a new product developed by our company, it can tests hardness, friability, dissolution and disintegration of pharmaceutical tablet. It is automated in hardness testing, Whole structure with reasonable design, stable performance, easy to operate.

More details

More info

Description
DMT-3D type tablet four using tester is a new product developed by our company, it can tests hardness, friability, dissolution and disintegration of pharmaceutical tablet. It is automated in hardness testing, Whole structure with reasonable design, stable performance, easy to operate. Main technical indicators in line with the "Chinese Pharmacopoeia 2010 version" requirement, widely used in the pharmaceutical industry, scientific research, teaching, Institute for Drug Control and various pharmaceutical industry quality management department and laboratories.

Specifications
1. Disintegrating:
Basket up and down movement distance: 55 ± 2mm
Basket vertical reciprocating frequency: 30 to 32 times / min
Flat-bottomed beaker volume: 1000ml
Water temperature in cup: 37 ± 0.3 °C
Distance between basket net and liquid level in rising: 15mm
Distance between basket net and cup bottom in falling: 25mm
2. Release:
Speed: ​​25 ~ 200r.pm
Speed ​​Accuracy: ± 1%
Basket rotation swings: ≤ ± 1mm
Rotating blades swing amplitude: ≤ ± 1mm
Ball bottom flask volume: 1000ml * 3 pcs
3. Friability:
Drum diameter: Ø286 ± 0.20mm
Drum depth: 39 ± 0.30mm
Speed: 25 rpm, 100 rotary shutdown
4. Hardness section
maximum diameter of tested tablet: 30mm
maximum test pressure: 20kg
Test accuracy: ± 0.03kg
