Octane & Cetane Analyzer

OCTANE & CETANE ANALYZER

PT-OCA-100

More info

Parameter

Description

According

Measurement of octane level.

Research (RON), motor (MON) method.
Anti Knocking Index AKI (Pump octane number PON).

ASTM D 2699-86, ASTM D 2700-86.

Measurement of cetane level.

Simultaneously with cetane number the type and temperature of hardening of diesel fuel is defined.

ASTM D 4737-03, ASTM D 613, EN ISO 5165.

Measurement freezing-point of diesel fuel.

It is defined depending on cetane numbers of diesel fuel.

Facultative parameter.

Measurement type of diesel fuel.

Type of diesel fuel. (S-summer, W-winter, A-arctic) is defined depending on temperature of hardening.

Facultative parameter.

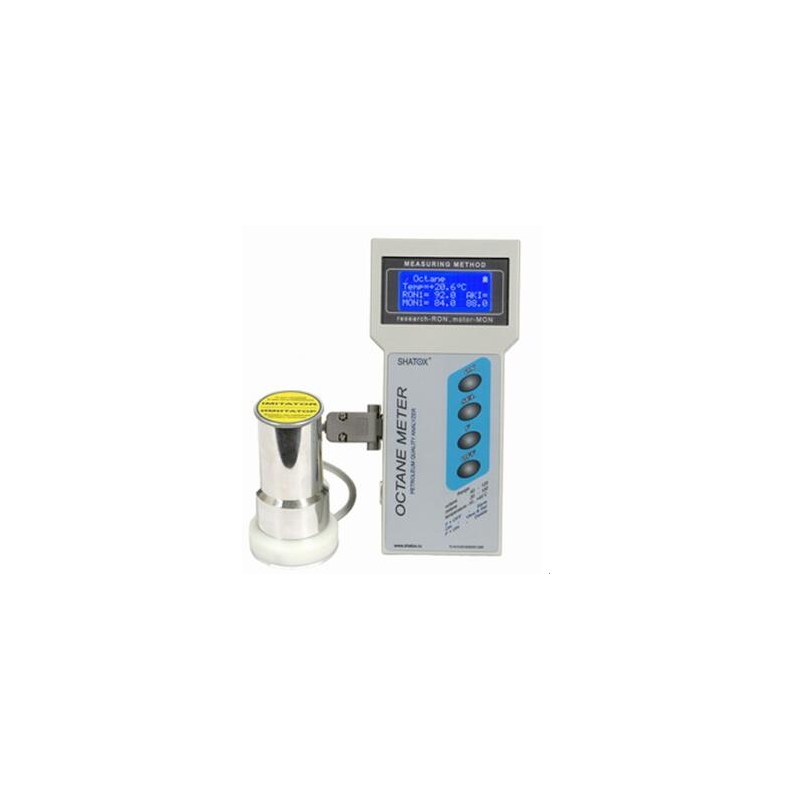

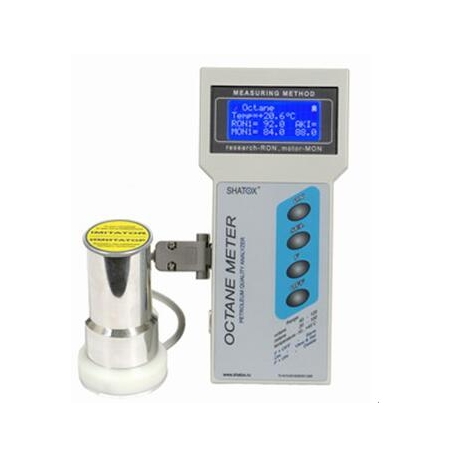

Portable octane analyzer is used for instant octane rating of motor gasoline, corresponding to motor and research methods (RON and MON) as well as for cetane number of diesel fuels. In addition for an inquiries, temperature rating of the analyzed liquid and diesel fuel solidification is provided. The results of measuring are displayed on the LCD.

The operational principle of the Octane Meter lies in gasoline octane rating and diesel fuel cetane rating based on the analysis of change of properties of an dielectric permeability and electromagnetic induction.

Octane analyzer has the portable compact design and is used for on-line inspection of motor fuel quality in the field and laboratory conditions. The operating conditions of the Octane analyzer usage: ambient temperature from –10C to +30C, relative humidity 80% at 25 C, atmosphere pressure 84-106kPa. The device gets power from DC elements of type AA (supply voltage 6V).


The delivery package of Octane Meter PT-OCA-100 consists of the following components:

  • Electronic unit;
  • Sensor;
  • Sample imitator;
  • User manual;
  • RS 232 computer connecting cable;
  • Software CD;
  • Tool case;
  • AA Batteries.

Advantages of Octane meter PT-OCA-100

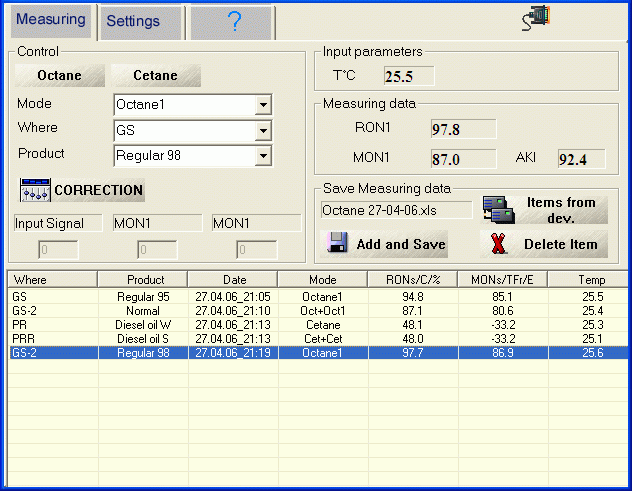

  • You can take measurements and make the measurement table in Microsoft Excel format which include the information about sample at the same time;
  • The correction of the measurement become much easier;
  • The information about the work of octane tester, correction, and measurement data are display on the screen of the computer;
  • Capability to update fuel parameters database (make an individual measurement program for customer needs).

Technical characteristics


Parameter description

Value

Types of controlled fuel

all types of gasoline

Range of measured octane level

40-120

Range of measured cetane level

20-100

Measurement inaccuracy of octane number

0,5

Measurement inaccuracy of cetane number

1

Data display

digital

Time of measurement, sec

below 10

Consumption current, mA

30

Time of continuous running with one set of batteries, hour

100

Operation temperature range

-100С…+40 0С

Relative humidity, %

30…..80

Atmosphere pressure, kPascal

64…..106

Dimension, mm:
  sensor;
  electronic module


60 х 100
100 х 210 х 25

Weight, gr

680

Mean-time-between-failures, hour

>1000
