Optical

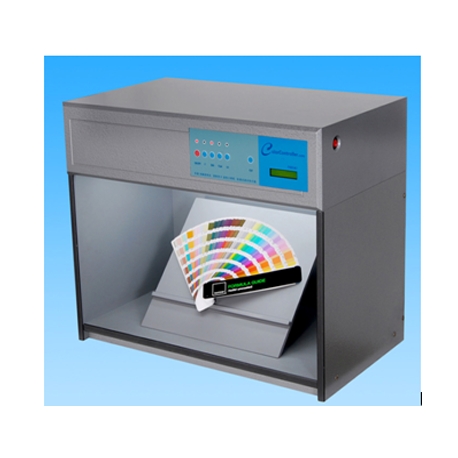

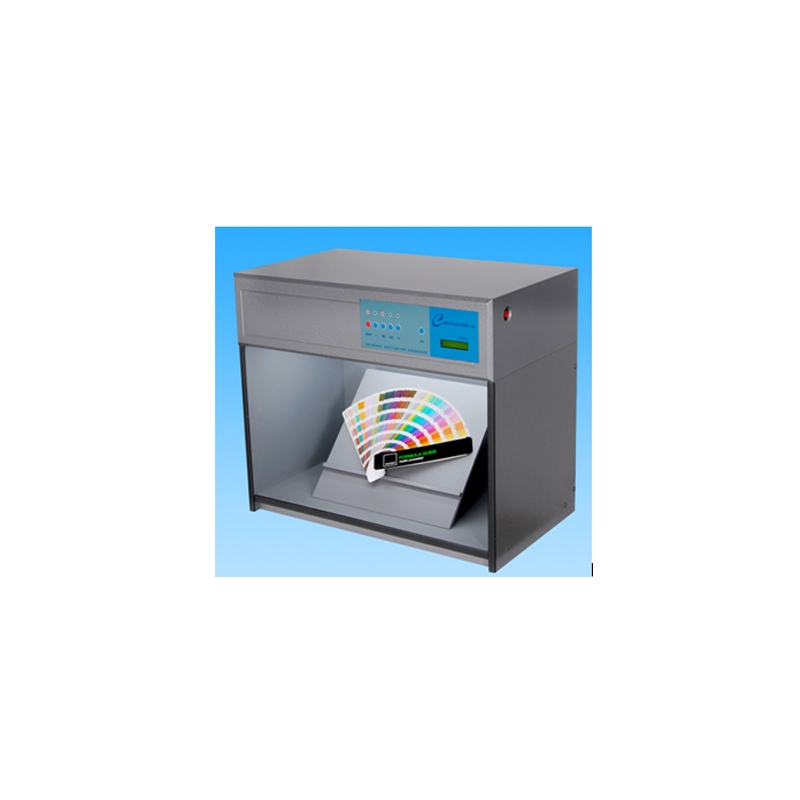

Color Assessment Cabinet With 5 Light Sources

CT60(5)

More info

CT60(5) Color matching light box can accommodate up to 5 light sources.The Color matching booths / Color assessment cabinet / Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

CT60(5) Color matching light box Application:
Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth / Color matching light box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.
The Color matching booths / Color assessment cabinet / Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

CT60(5) Color matching light box Features:
Ø Color assessment cabinet / Color Viewing Cabinet / Color View Light Booth render color more accurately. With 5 different light sources(D65, TL84, CWF, F, UV), which can detect the metamerism.
Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
Ø Easy to operate by using individual switches for each light source.
Ø Elapsed time meter for tracking optimal lamp replacement.
Ø Automatically alternating among light sources.
Ø No warm-up time or flickering which insures quick and reliable color judgment.
Ø Economic power consumption and low heat generation for high light efficiency.
Ø The dimension can be made by customized.

Order Number

Configured light sources

Weight

Dimensions(mm)

CT60(5) Color matching light box

D65,TL84,CWF,UV,F/A

32Kg

710*405*570

Light Sources:


Light Source

Color viewing booths application

Color temperature(k)

Power(W)

D65

International standard Artificial Daylight

6500

18

TL84

Applied to stores in Europe, Japan and China

4000

18

CWF

(Cool White Fluorescent)American Standard

4150

18

F/A

"Sun-setting Light Yellow" incandescent light source(imitation of sunset)

2700

40

UV

Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments

Wavelength:365nm

20

U30

Warm White Fluorescent, American Standard

3000

18
