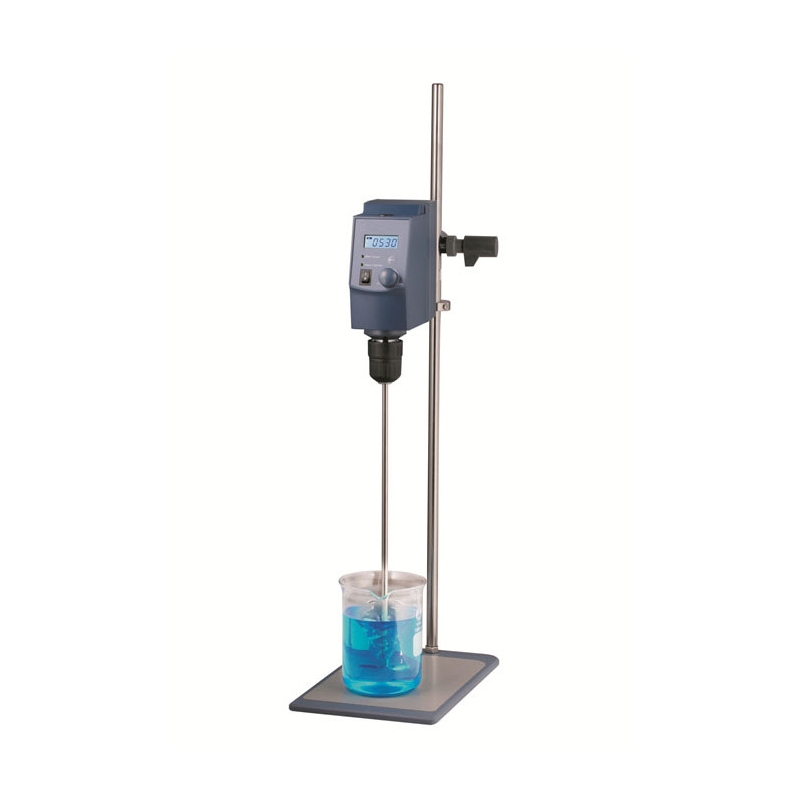

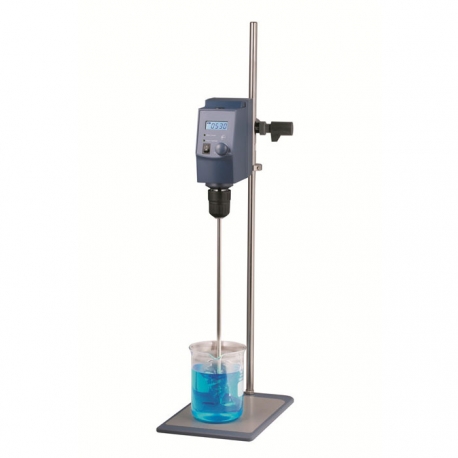

Overhead Stirrer OS40-Pro
OS40-Pro
• High reliability and outstanding performance
• LCD display for precise monitoring of set and actual speeds, a wide range of speeds from 50 to 2200rpm with control accuracy of ±3 rpm
• Brushless DC motor for long life, maintenance free and explosion proof
• Torque trend display for real-time information on viscosity changes
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Advantages for the user | Features |
Digital display | LCD display |
Maintenance free motor | Brushless DC motor |
Very safe | Safety circuits allow for safe stop function in overload conditions |
Remote Control | RS232 interface- PC can control and document all operation values |
• High reliability and outstanding performance
• LCD display for precise monitoring of set and actual speeds, a wide range of speeds from 50 to 2200rpm with control accuracy of ±3 rpm
• Brushless DC motor for long life, maintenance free and explosion proof
• Torque trend display for real-time information on viscosity changes
• Safety circuits allow for safe stop function in anti-stall or overload conditions
• Smooth operation prevents accidental spillage and splashing
• Provides a constant speed even with changes in viscosities of the sample
• Remote function provide PC control and data transmission
Max. stirring quantity [H2O] | 40L |
Motor type | brushless DC motor |
Motor input power | 120W |
Motor output power | 100W |
Voltage | 100-240V, 50/60 Hz |
Power | 130W |
Speed range | 50-2200rpm |
Speed display accuracy | ±3rpm |
Speed display | LCD |
Torque display | LCD |
Overload protection display | LED lights |
Max. torque | 60Ncm |
Viscosity max. | 50000mPas |
Chuck range diameter | 0.5-10mm |
Dimensions [W × H × D] | 83 × 220 ×186mm |
Weight | 2.8kg |
Protection class | IP42 |
Permissible ambient temperature and humidity | 5-40 C, 80% |
Data connector | RS232 |
Cat. No. | Item | Description |
8033200100 | OS40-Pro | LCD Digital Enhanced Overhead Stirrer (Exclude universal stand), Max. stirring quantity 40L |
8033100100 | OS20-Pro | LCD Digital Overhead Stirrer (Exclude universal stand), Max. stirring quantity 20L |
8033200200 | OS40-S | LED Digital Enhanced Overhead Stirrer (Exclude universal stand), Max. stirring quantity 40L |
8033100200 | OS20-S | LED Digital Overhead Stirrer (Exclude universal stand), Max. stirring quantity 20L |
Accessories
Cat. No. | Description |
18900258 | Universal plate stand (WxD: 20x31cm), including support holder( H: 78cm) and fixing device Grey |
18900131 | Universal plate stand( WxD: 20x31cm), including support holder( H: 78cm) and fixing device |
18900071 | Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel |
18900072 | Straight stirrer, shaft length 40cm,stirrer diameter 6cm, 316L stainless steel |
18900073 | Blade stirrer, shaft length 40cm,stirrer diameter 6.8cm, 316L stainless steel |
18900074 | Centrifugal stirrer, shaft length 40cm,stirrer diameter 9cm, 316L stainless steel |
18900075 | Crossed stirrer, shaft length 35cm,stirrer diameter 6.5cm, PTFE coated |
18900076 | Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated |
18900077 | Blade stirrer, shaft length 35cm,stirrer diameter 6.8cm, PTFE coated |
18900078 | Centrifugal stirrer, shaft length 35cm,stirrer diameter 8.5cm, PTFE coated |
18900330 | Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel (prevents the liquid spillage) |
