Oxygen Permeability Analyzer

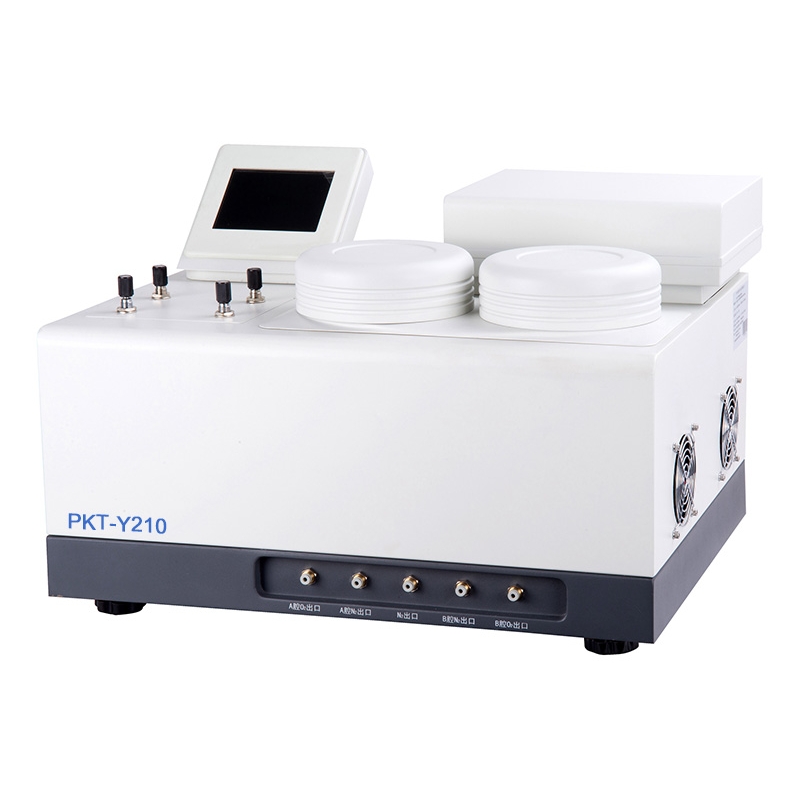

PKT-Y210

PKT-Y210 Oxygen Permeability Analyzer tests the oxygen transmission rate of plastic film, composite film, aluminum foil, thin sheets, rubber, porcelain, solar panel, contact lens, medical patch and so on.

More details

More info

PKT-Y210 Oxygen Permeability Analyzer tests the oxygen transmission rate of plastic film, composite film, aluminum foil, thin sheets, rubber, porcelain, solar panel, contact lens, medical patch and so on.

Working Principle
Coulometric detection sensor method. Test sample separates test chamber into upper room and lower room; oxygen flows in upper room and nitrogen flows in lower room; oxygen molecules penetrate through the sample from upper room into lower room; Coulometric detection sensor measure the oxygen density of lower room to calculate oxygen transmission rate.

Standards
GB/T19789, ASTM D3985, ASTM F1927, ASTM F1307, ISO 15105-2

Features

  1. Two chambers, each with independent test data.
  2. Automatic test, auto judgment, auto stop.
  3. Built-in operation system can test independently without computer.
  4. LCD screen, Windows style interface, real time display test data; operate by mouse, easy to use.
  5. Advanced electromagnetic temperature control technology, program controlled, auto increase and decrease; integrated design; precision 0.1℃.
  6. Double gas flow (wet gas and dry gas) method to control humidity; integrated design, no external accessory.
  7. High precision can test aluminum foil.
  8. Can expand test range to 26000 cm3/m2·24h. (optional)
  9. Can test packaging containers, such as bag, bottle, bowl etc. (optional)
  10. Sensor over range protection.
  11. Can expand to up to 12 test chambers.
  12. Professional software, simple interface, easy to use.
  13. Flexible setting of test process.
  14. Real time display curves of transmission rate, oxygen density, humidity, temperature.
  15. Can zoom and move curves freely, so as to make detail analysis.
  16. Professional test report, can export file in Office, PDF format etc.
  17. Calibrated by Standard Film or Standard Gas.



Specifications


Test range

0.02~16500 cm3/m2·24h (film)
0.01~82 cm3/pkg·24h (packaging container)

Test precision

0.001 cm3/m2·24h

Temperature range

15~45℃

Temperature precision

±0.1℃

Humidity range

0%RH, 30~90%RH, 100%RH

Humidity precision

±2%RH

Gas source

oxygen 99.95%, nitrogen 99.999%, ≥0.1Mpa

Gas source flow

5~120 mL/min

Gas port

Φ3mm gas pipe

Test area

50.24 cm2 (can expand to minimum 0.785 cm2)

Sample size

Φ100 mm

Sample thickness

≤2mm

Number of samples

1~2pcs

Instrument size

62×55×46cm



Configuration

Oxygen Permeability Analyzer, software, communication cable, power cable, sample cutter, gas pipes 2pcs, pipe connectors 4pcs, copper plates 2pcs, sealing pad rings 4 pcs, sealing grease, syringe, spanner, wireless mouse, Standard Films 1 set
Optional: pressure releasing valve, computer, external fittings for expanding test range, external fittings for packaging container test
User provide: gas sources
