More info

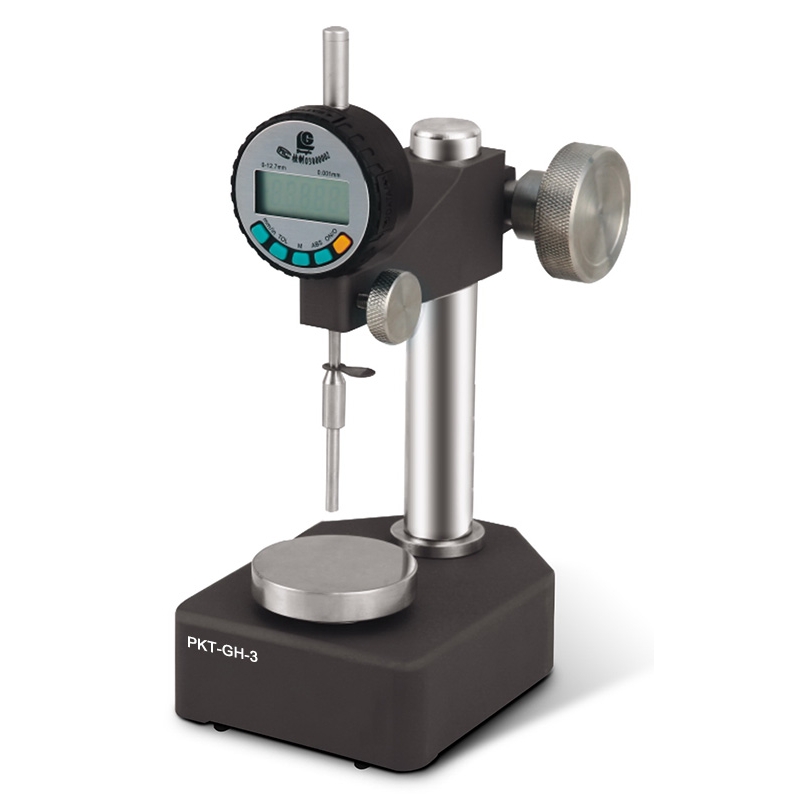

This instrument is used to make thickness measuring or comparative measuring of plastic film, thin sheet, paper and so on.
Standards
GB/T 6672, ISO 4593, ASTM F2251
Features
- LCD display test data.
- Can change battery; easy to use.
Specifications
Test range | 0.001~12.5mm |
Test precision | 1μm |
Deviation | ≤2% of displayed value |
Measure force | 0.5~1N |
Measure stick size | Φ5mm (can customize) |
Measure stick roughness | Ra＜0.2μm |
