More info

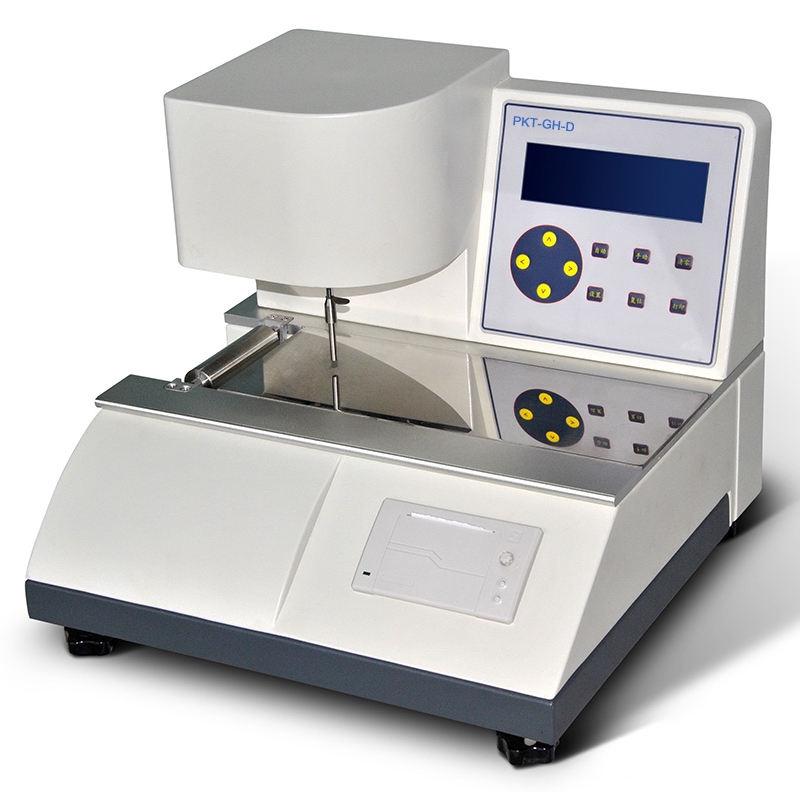

This instrument is used to make thickness measuring or comparative measuring of plastic film, thin sheet, paper and so on.
Standards
GB/T 6672, GB/T 451.3, ISO 4593, ISO 534, ASTM D645, ASTM F2251
Features
- Support single point or multiple pointstest; can set number of points and spacing between points.
- Automatic mode and manual mode.
- LCD display maximum, minimum, average and current values.
- Built-in printer, can print report.
Specifications
Test range | 0~1.5mm |
Test precision | 0.1μm |
Number of test points | 0~10 points |
Spacing of test points | 0~1000mm |
Measure force | 0.5N |
Measurestick size | Φ5mm (can customize) |
Instrument size | 38×36×33cm |
Configuration
Thickness Tester, measure stick, power cable
