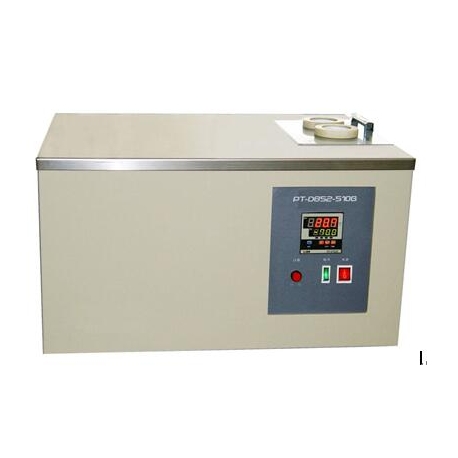

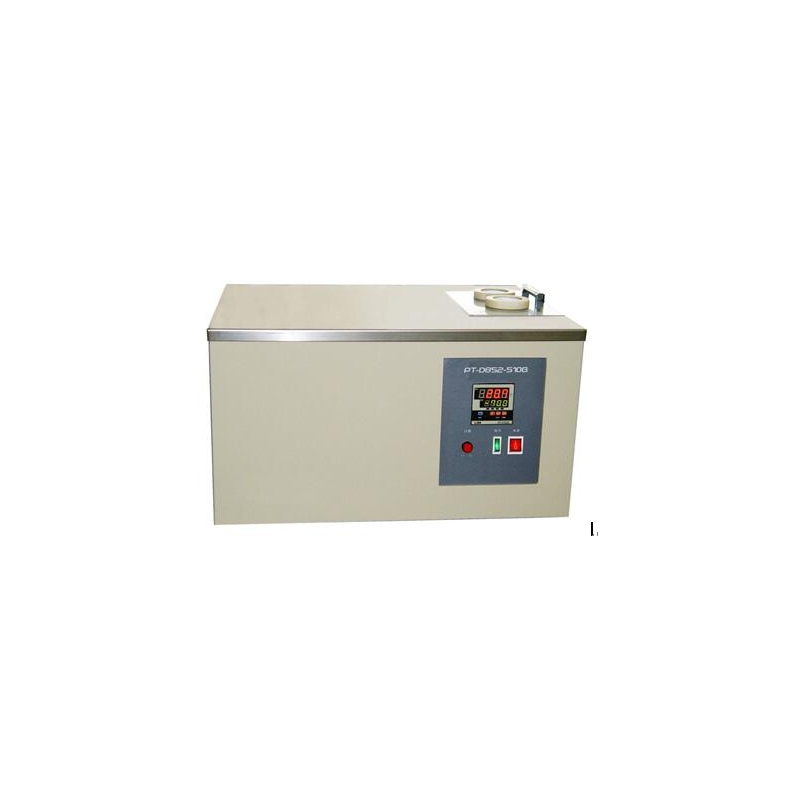

Petroleum Products Solidifying Point Tester (-20 °C ~ 80 °C)

Purpose
PT-D852-510G-II Petroleum Products Solidifying Point Tester (-20 °C ~ 80 °C) is designed and made as per the National Standard GB/T510 “Test Methods for Solidifying Point of Petroleum Products”. It is suitable to determine solidifying point of petroleum products.

Main function

1. Integrated best design concert of low temperature tester over the world, it is advance in design and reasonable in structure.
2. Adopt special temperature controlling techniques, it can make solidifying point determination from -20 °C to 80 °C;
3. Adopt digital temperature controlling techniques and high precision temperature sensor, so it is accurate in temperature control;
4. Adopt spray plastics for instrument shell process, and use stainless steel as material of working table, so it is durable and beautiful.

Technical parameters
1. Power supply: AC 220 V±10%, 50 Hz;
2. Test trough: single trough with two baths, temperatures in two baths are equal;
3. Temperature range in test trough: -20°C ~ 80°C;
4. Temperature controlling accuracy: ±0.5°C;
5. Refrigeration system: by a new type of refrigeration compressor;
6. Ambient temperature: ≤30°C;
7. Relative humidity: ≤85%;
8. Total power consumption: not more than 1000 W;
9. Dimensions (m): 0.73*0.58*0.52
