Spray Dryer

Lab Spray Dryer

SD-15/SD-15A

The system was designed to be stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode , and allowed two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .

More details

More info

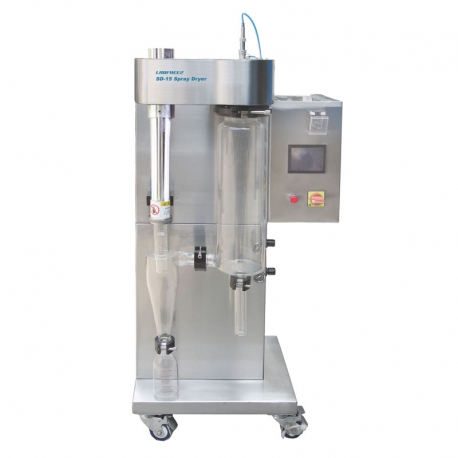

SD-15 Lab Spray dryer is self contained and supplied complete and ready for immediate operation. All major components are housed within a stainless steel cabinet and the unit can be used on a bench top or with an optional stainless steel stand. The system was designed to be stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode , and allowed two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .
APPLICATIONS
Spray drying can be used in a wide range of applications where the production of a free-flowing powder sample is required. This technique has successfully processed materials in the following areas:
Beverages • Flavours and Colourings • Milk and Egg Products • Plant and Vegetable Extracts • Pharmaceuticals • Heat Sensitive Materials • Plastics •  Polymers and Resins • Perfumes • Ceramics and Advanced Materials •
Soaps and Detergents • Blood • Dyestuffs • Foodstuffs • Adhesives • Oxides • Textiles • Bones, Teeth and Tooth Amalgam and many others. Most solutions and suspensions can be spray dried providing that the resulting product has the characteristics of a solid material.

PRINCIPLE

1.     A menu driven microprocessor controller allows the selection of inlet temperature, airflow, automatic de-blocker frequency and pump speed. The  controller features an RS 232 output for connection to a PC or data logger and software allows the control and monitoring of all functions and printing of results.
2.     The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber. At the same time an integral compressor pumps air into the outer tube of the jet which causes the liquid to emerge as a fine atomised spray into the drying chamber.
3.     Heated air is blown through the main chamber evaporating the liquid content of the atomised spray. The solid particles of the material, which are normally in a free flowing state, are then separated from the exhaust air flow by a cyclone and collected in the sample collection bottle. The exhaust airflow is directed through a flexible 60 mm diameter hose direct to atmosphere or to an existing extraction system.
ADVANTAGES


  1. Two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process . PLC controller, LCD touch panel control fascia with flow path of system. Using proface touchable interface display operation, operator can control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.
  2. Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alk li, high temperature. It can work in a no-pollution and stable environment, and the whole process can be inspected. All the spare parts are easy to install and wash.
  3. Made of SUS-316 Stainless steel. Easy operating.
  4. To assure accurate temperature control and easy parameter adjusting, SD-15 applies PID.
  5. A filter has been equipped to the inlet unit to prevent the sample from contamination .
  6. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution.. To make sure the process conducted steady and smoothly, magnetic agitator is optional to make the solution well mixed.
  7. Narrow size distribution of particles.
  8. Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled
  9. The air compressor is no oil and don’t pollute compress air. The power from receiving tank has a good flow. The sound is low than 60db, and following the GMP understands.
  10. Supplied complete and ready for most spray drying applications.
  11. Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.
  12. Equipped with air filter to remove and collect fine particle s in exhausted air.
  13. Can be used for organic & water solvents (Model SD-15A)

TECHNIACL INFORMATION


Model

SD-15

SD-15A

Material for drying

Water-base

Organic solutions
With nitrogen circulation system and online recovery system

Power

3kw

6kw

Heating power

3kw

3.5kw

Air flow

5m3/min

3m3/min

Inlet/outlet filters

Optional (HEPA)

N2

Dehumidifier

No

Yes

Control

PID Automatic or manual dual control

Display

LCD touch display can show Inlet temperature / outlet temperature / peristaltic pump speed / wind / through needle frequency

Inlet air temperature range

30ºC to 300ºC

Outlet air temperature range

30ºC to 140ºC

Evaporate water capacity

1500mL/H ~ 2000ml/h

Particle diameter range

1-25um

Drying time

1.0~1.5s

Temp. Precision

±1 ºC, real time PID control

Max. Sample feed

2000mL/H

Min. Sample feed

50mL/H

Dimensions & weights

990×790×1480 mm/ 168KG
660×430×610 mm/ 23kg
(main-chamber/cyclone/sample collection bottle/waste collection tube) (2 packages)

Operation interface

English language

obturating ring

50 pcs

Nozzle diameter

Can be chosen from  0.5mm/0.7mm/0.75mm/1.0mm/1.5mm/2.0mm

Nozzle material

SS316 stainless steel

Power supply

220V/50Hz or 110V/60Hz

MAIN COMPONENTS


Items

Standard

Remarks

Air Compressor

4.2 m3/H, internally installed

Hanjin (Korea)

SELF-PRIMING PERISTALTIC PUMP

1500ml/H

RS (France)

Peristaltic Pump Head



RS (France)

PLC



ELT (Taiwan)

touch screen

180*140mm

ELT (Taiwan)

transducer



ELT (Taiwan)

AIR-BLOWER

6.5M3/min

PDX(Taiwan)

thermal-protective elbow

140mm

stainless steel & High temperature resistant material (1700℃)

exhaus adapter

50mm

stainless steel

THERMOCOUPLE

M8x1.25



MAIN-CHAMBER

140mm

PYREX

CYCLONE

85 mm

PYREX

NOZZLE

0.7mm



silicone rubber tube

φ8xφ5

resist heat,2M
