Spray Dryer

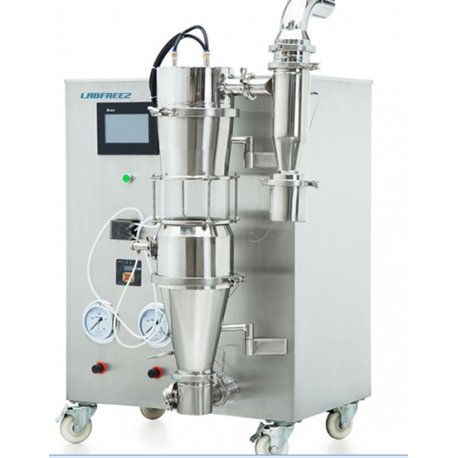

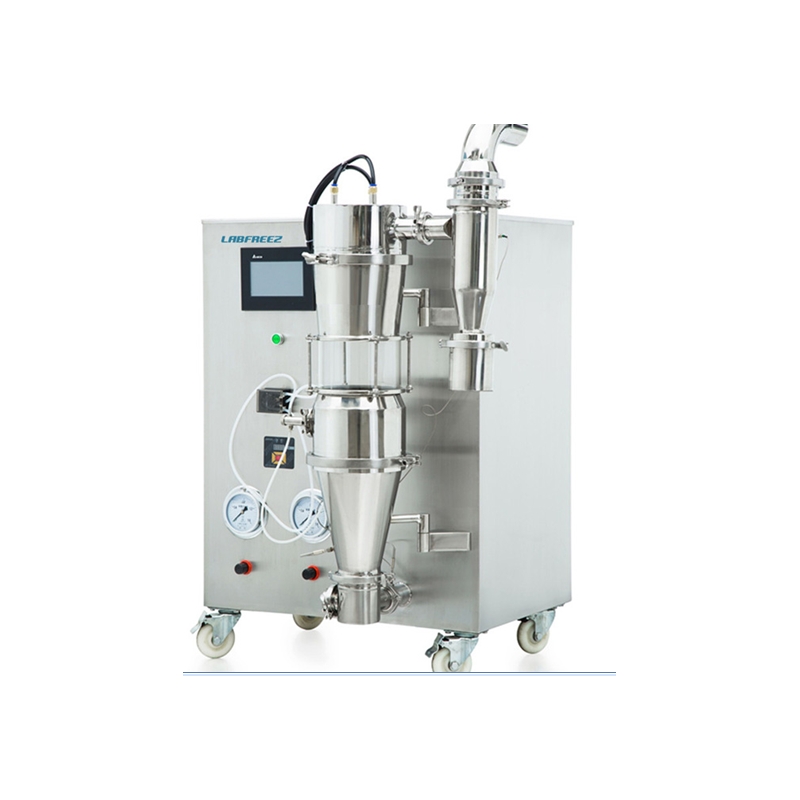

Coating and granulator spray dryer

SD-1000

What can SD-1000 LAB SPRAY GRANULATOR do?

    • Spray dryer:1500ml/h,inlet temperature 105°C -200°C
    • Spray granulator:Batch size from 50 g up to 1000 g
    • Coating:Batch size from 50 g up to 1000 g
    • Mixing:Batch size from 50 g up to 1000 g
    • Fluidzied bed dryer:Batch size from 50 g up to 1000 g
    • Designed for trials with small-scale processes especially in R&D as well as Universities

More details

More info

What can SD-1000 LAB SPRAY GRANULATOR do?

  • Spray dryer:1500ml/h,inlet temperature 105°C -200°C
  • Spray granulator:Batch size from 50 g up to 1000 g
  • Coating:Batch size from 50 g up to 1000 g
  • Mixing:Batch size from 50 g up to 1000 g
  • Fluidzied bed dryer:Batch size from 50 g up to 1000 g
  • Designed for trials with small-scale processes especially in R&D as well as Universities


SD-1000 lab spray granulator features

  • Less occupied area:1 square meters is enough to place.
  • Low power consumption ,environmental protection and easy operating.
  • Suitable for heat-sensitive materials and samples of easy dissolving particulates.
  • PLC operation control. LCD touch screen displays the whole experimental process.
  • Shutdown protection: press the stop button and the machine (except the fan) stops working immediately so that heating parts will not be burnt due to misuse (forced shutdown of the fan).
  • Stainless steel machine body and two-fluid spray atomization structure made of SUS 316 stainless steel.
  • Real-time control on PID temperature.


SD-1000 lab spray granulator parameter:

Expansion chamber volume: 10L
Fan power: 1.5KW
Heating power: 3.5KW
Fluidized bed control parameters:
Fluidized inlet air speed: 150 m3/h at maximum
Fluidized inlet air temperature: 40 ℃-150℃
Peristaltic pump flow: 100-1500ml/h ,adjustable
atomizing pressure: 0.15-4 BAR
Expansion chamber materials: high borosilicate glass and SUS 304stainless steel
Air compression pressure: 0.15Mpa~0.6Mpa; Air compression consumption: ≤4m3/h
Color LCD touch screen parameters: air temperature/material temperature/fan frequency
Voltage: 220V/50Hz,5KW
Size: 900×800×1300 mm
Weight: 110 Kg

Application scope:
Pharmaceutical product/food and feed/ceramic product/plastic and rubber/polymer and resin/ biogenetic product/chemicals and fertilizer/ perfume/ coloring matter and dye/vegetable and fruit extract/ aromatic substance/grain crop, etc.

Application area:
Spray dehydration and micronization, microencapsulation, restoration of product composition and extraction, suspending liquid dehydration, particle size control and structure revision

Sr.no

Parameter

SD-1000 spray granulator

1

Function

Spray dryer,spray granulator,coating,mixing

2

Power

5KW ,220V,50/60Hz

3

Spray granulator capacity

Max. 1000g/batch

4

Spray dryer capacity

Max. 1500ml/h

5

Minimum sample volume

50g

6

granulator temperature

40-150°c

7

Spray dryer inlet temp.

105-200°c

8

Compressed air

2-4 Bar

9

Temperature precision

±1°c

10

Coating

50-1000g/batch

11

Mixing

50-1000g/batch

12

Nozzle type

Two fluid nozzle

13

Nozzle jet

0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available)

14

Airflow

0-150m3/h

15

Peristaltic pump

Max. 1500ml/h

16

Main chamber volume

10L

17

Heater power

3.5KW

18

Main chamber material

SUS304 Stainless steel &High borosilicate glass

19

Body material

SUS304 Stainless steel

20

Seal of cyclone/cylinder

Silicone

21

Sound

<60db

22

Dimensions

900*800*1300mm

23

Weight

110KG

24

Operation mode

Automatic/Manual

25

Display

7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency
