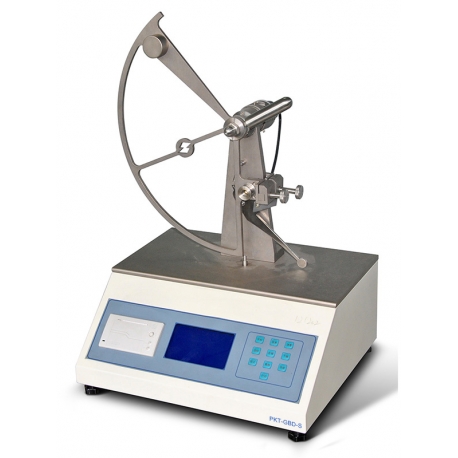

Tearing Tester

Tearing Tester

PKT-GBD-S

This instrument tests the tear resistance of plastic film, thin sheet, paper, non-woven fabrics and so on.

More details

More info

This instrument tests the tear resistance of plastic film, thin sheet, paper, non-woven fabrics and so on.

Working Principle
Elmendorf method. Measure the energy and force consumed by pendulum tearing sample off to evaluate the tear resistance.

Standards
GB/T 16578.2, GB/T 455, ASTM D1922, ASTM D1424, ASTM D689, ISO 6383, ISO 1974, TAPPI T414

Features

  1. LCD display test data.
  2. Can test independently without computer; auto process data.
  3. Built-in printer, can print report.
  4. Pneumatic hold and release device.
  5. Software: simple interface, easy to use; real time display test data and curve; can export professional test report.



Specifications


Test range

0~6400gf

Tear arm size

104±1mm

Initial tear angle

27.5˚±0.5˚

Deviation

±0.5% of displayed value

Gas source

compressed air, 0.2~0.6Mpa

Gas port

Φ6mm gas pipe

Instrument size

44×37×56cm



Configuration
Tear Tester, software, communication cable, power cable, 1800gf pendulum, weights (400gf, 800gf, 1400gf, 2800gf, 6400gf), 250gf weight
User provide: compressed air



Software Interface
