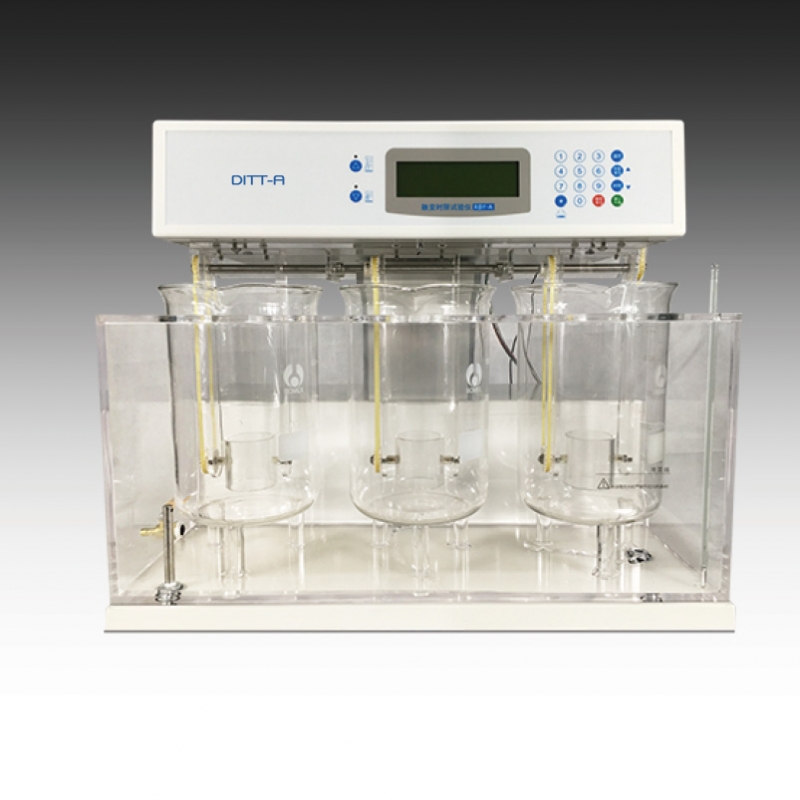

Intelligent Thaw Tester/ Melt time limit tester

Intelligent thaw tester with unique manual and automatic turn mode, to ensure ease of use and cleaning of the test vessel, thermostatic water cycle reaches accuracy ≤ ± 0.1, in line with the national pharmacopoeia 2010 version of the standard.

Features

1. Automatic temperature control & chronograph, timer flip instructions forecast, fault alarm.
2. Automatic detection, diagnosis and alarm.
3. Imported stainless steel mesh frame.
4. Flip grid sleeve: automatic rollover
5. Host parameters can be preset and automatically store.
6. With self-test and automatic protection function, given a variety of fault signal.
7. External micro-printer functionality.
8. Having a USB storage function, the experimental data retention for viewing.
9. Thermostat use PID mode, can be easily corrected.
10.  Washing speed can be set arbitrarily.

Specifications
Transparent sleeve: high 60 mm, diameter 52mm.
Stainless steel mesh frame: 2 pcs, diameter 50mm, each with 39 pcs of 4mm holes
Speed ​​range: 10-100 rpm
Thermostat range: 30 (room temperature) -45 °C
Temperature Resolution: 0.1 °C
Temperature error: ≤ ± 0.1 °C
Sleeve flip frequency: 1 times in 10 min
Timer function displays the current sampling time, cumulative total time and sampling points
Sampling cycle time: up to 0-999 minutes countdown
Power: AC220V ± 10%, 50Hz, 1250W
Working conditions: temperature 5-40 °C, relative humidity ≤80% HR
Sleeve grid quantity: 3 pcs
