Water Distiller

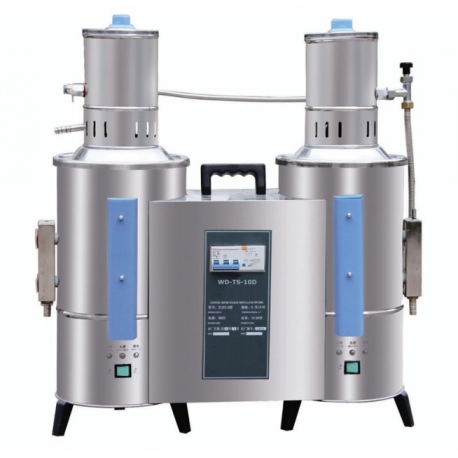

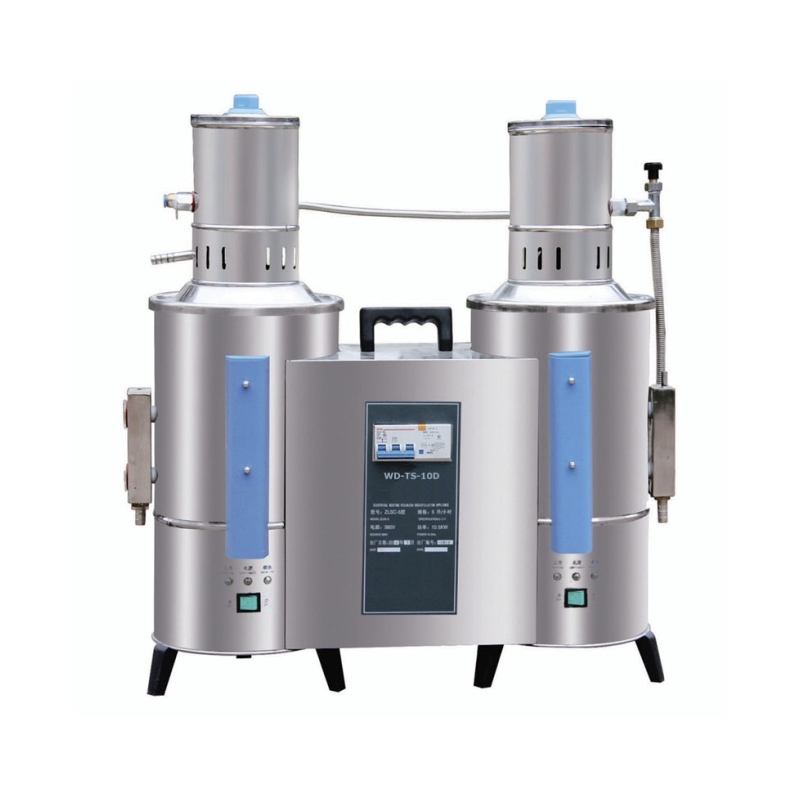

Auto Double Water Distiller

WD-TS-D Series

This series of products used boiler steam as the heating source, water as the cooling medium to produce high-quality purify water through double-distilled, the water quality can be achieved "Pharmacopoeia" (2000 edition) standard water for injection.

More details

More info


This series of products used boiler steam as the heating source, water as the cooling medium to produce high-quality purify water through double-distilled, the water quality can be achieved "Pharmacopoeia" (2000 edition) standard water for injection.
Reasonable structure, beautiful shape, stable performance, large volume of water, easy installation, suitable for medical, pharmaceutical, chemical, chemical fiber, electronics industry, the production of high-quality distilled water.

Features:

  1. all made of high quality stainless steel, anti-acid, corrosion, scale easy to clean.
  2. This product mainly composed of steam filters, evaporator, water towers, condensers and cooling towers complex, on various parts of the structure in the distillation process can effectively achieve ammonia excretion, filtration, water vapor separation, ensure output of distilled water quality.
  3. water leakage protection
  4. indicator shows working status
  5. Anti-scald safety cover for control panel
  6. Built shunt control structure
  7. Two-way easy controlled pressure regulator
  8. easy to operate, safe and reliable

Technical Specifications:


Model

WD-TS-5D

WD-TS-10A

WD-TS-20A

Output

5 liters/hour

10 liters/hour

20 liters/hour

Power

380V/ 10.5KW

380V/13.5KW

380V/ 22.5 KW

Dimensions (mm)

770×380×860

770×380×860

860×380×860

Water consumption

1:10

1:10

1:10

Material

SS304

SS304

SS304

Water leakage protection

Weight

30  kg

30  kg

  1. kg
