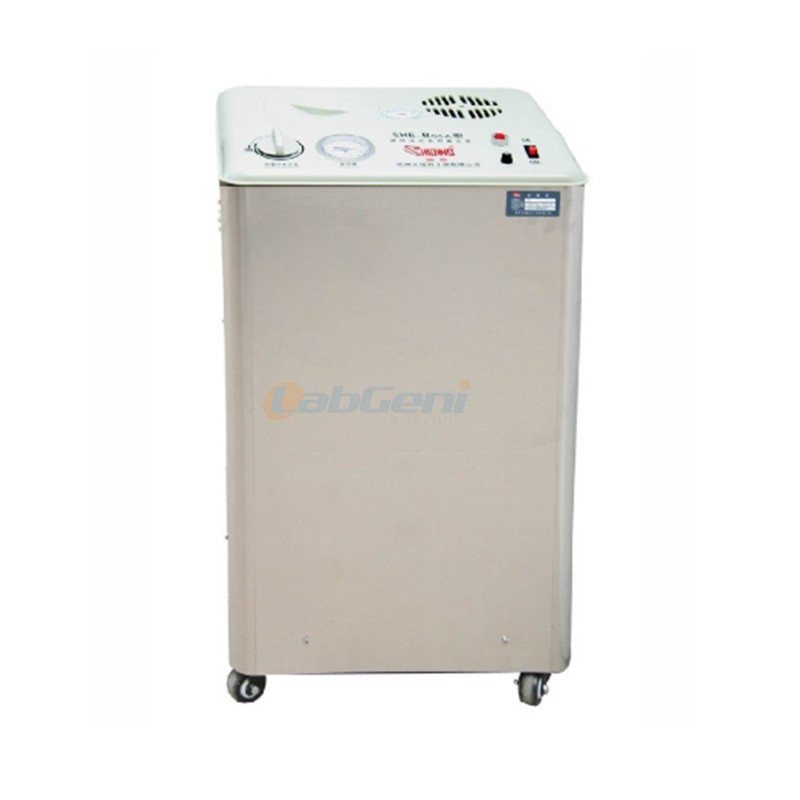

Water Circulating Vacuum Pump

CHARACTERISTICS OF USE

• Be suitable for the research experiment, small scale test and small scale production process which have the processes such as evaporation, distillation, crystallization, drying, sublimation, filtration and decompression, degassing.
• The operation principle is the same as that of desk-top type pump.
• Compared with the desk-top type pump, the bleed air flow is more, which applies to the vacuum demands with large bleed air flow.
• Five taps can be used alone or in parallel. The bleed air flow is large with five-way pipe iin parallel, which can meet the demand of large scale Rotary Evaporator or Reaction Kettle.
• The special machine is made by the famous electric manufacture ODM with fluorine rubber sealing, the inner of which can’t be intruded by corrosive gas.
• The body of the flume adopts polyvinyl chloride (PVC) material, the casing adopts carbon constructional quality steel cold rolling plate and the surface adopts electrostatic spraying.
• Ejector with copper material, tee junction, back valve and gas-extraction nozzle adopt the PP material.
• The pump body and impeller adopt stainless steel plate pressing (SUS standard).
• Be furnished with truckles, which is convenient for moving and is suitable for the flexible configuration in labs and workshops.
• Need to replace the water in the flume regularly to ensure the purity of water quality, the vacuum degree and to avoid dirt stains.
• Can be used to extract corrosive gas, need to shorten the period of water changing.
• VP-B95A: the casing adopts stainless steel material (SUS standard), the rest is the same as VP-B95.

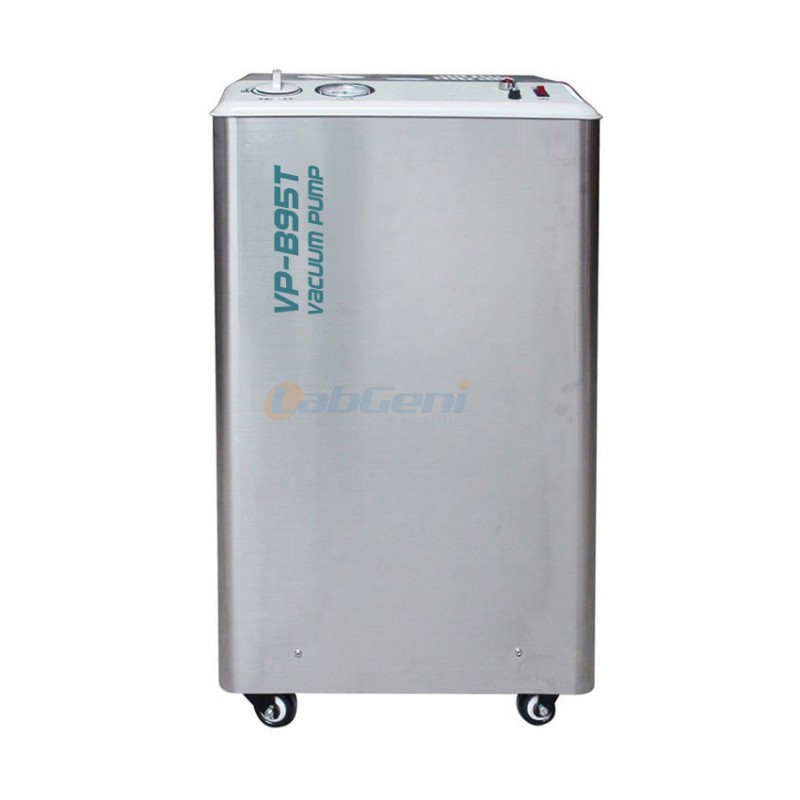

VP-95T

• Multi-purpose Vacuum Pump adopts the latesttechnology to make the service life longer, antiseptic property better and more reliable.
• Based on VP-B95A type, the function and basic material are the same as those of VP-B95A type.
• Spray paint Teflon (PTFE)on the ejector and gas-extraction nozzle, gas pipeline adopts fluorine rubber material.

SPECIFICATIONS
