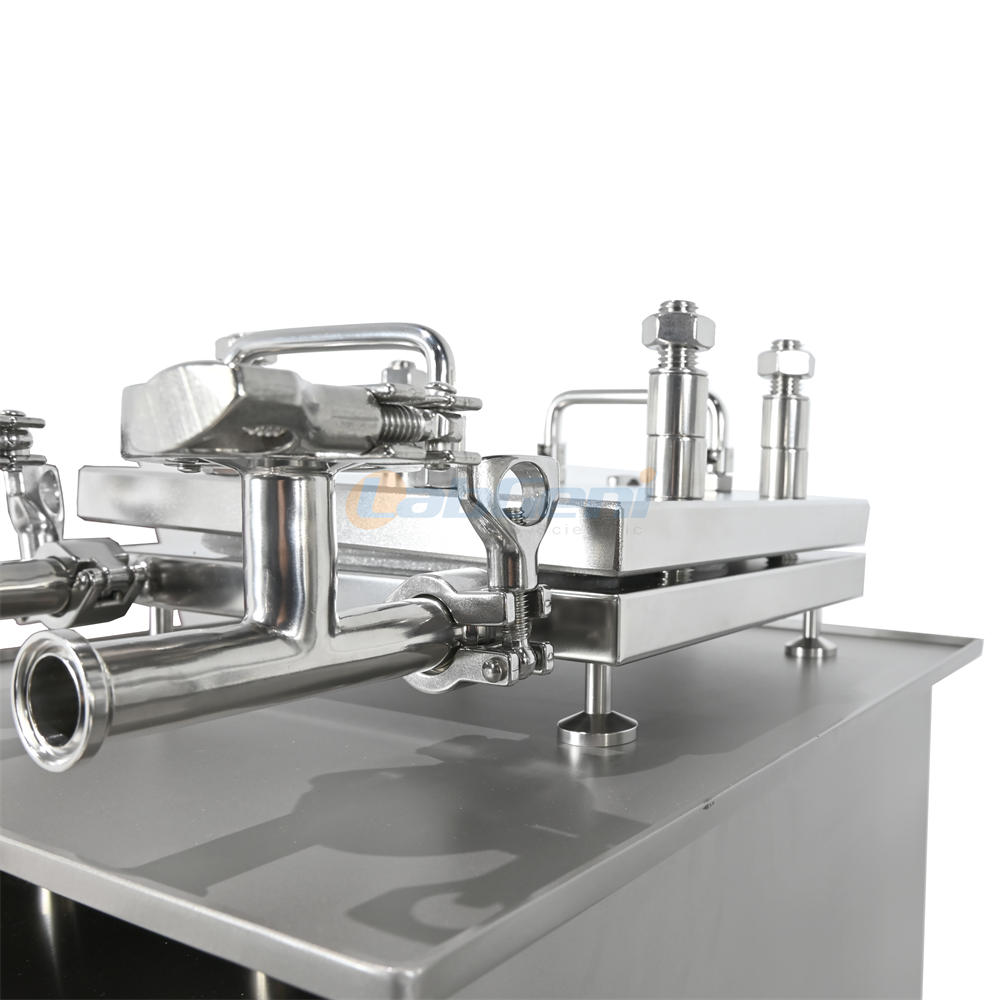

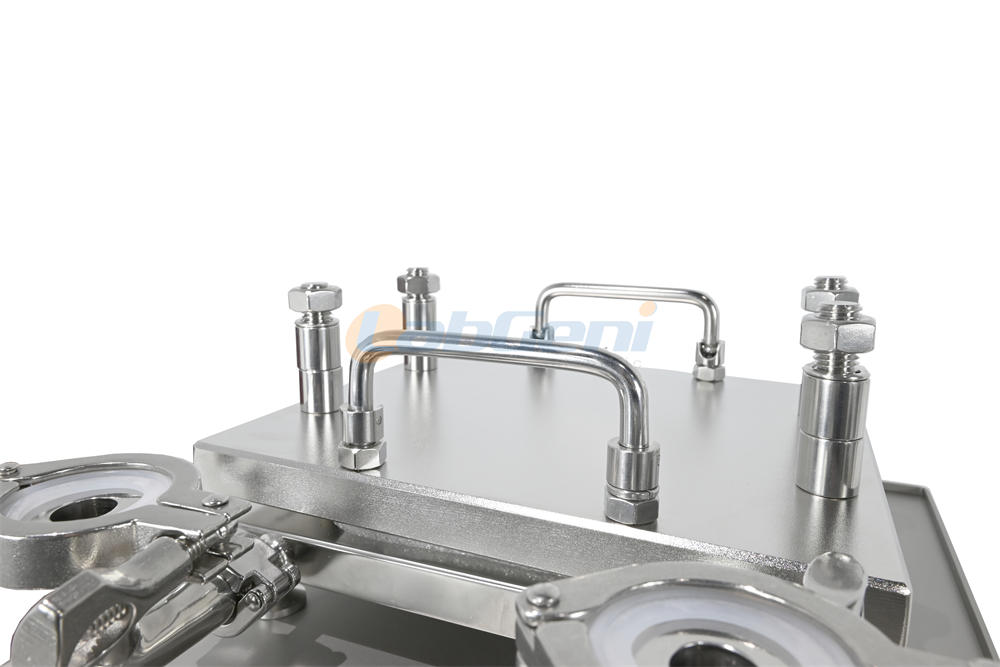

Stainless steel fixture
- Material AISI 316L
- 2 in 2 out sanitary quick interface with mirror polishing internal surface and sand blasting outside surface
- Fit 0.1 ㎡ imported box type flat membrane, optional brand Millpore, Sartorius and PALL
Power unit
- LONGER peristaltic pump with reliable quality
- Maximum flow：2L/MIN，Maximum pressure：0.3Mpa
- Control: Start and stop control, direction control, speed control (0-5V, 0-10V, 0-, 10KHZ are optional)
Flat membrane packs
- Filtration area：0.1㎡, Ultrafiltration / microfiltration is optional
- Membrane material：Biomax, PLC （modified cellulose）, PVDF （polyvinylidene fluoride）
- Optional brand: Millpore、Sartorius、PALL
|
Membrane material |
Molecular weight cut-off (kD) | most suitable molecular retention range >99%（KD） |
| Biomax-5 | 5 | 12-25 (growth factor, hormone) |
| Biomax-8 | 8 | 25-50 (growth factor, hormone) |
| Biomax-10 | 10 | 50-100 (growth factor, hormone) |
| Biomax-30 | 30 | 100-140 (enzyme) |
| Biomax-50 | 50 | 140-300 (lgGs) |
| Biomax-100 | 100 | 300-500 (parvovirus, antigen) |
| Biomax-300 | 300 | > 500 (lgMs, big virus) |
| Biomax-500 | 500 | > 0.3um (colloid, granules) |
| Biomax-1000 | 1000 | > 0.3um (colloid, granules) |
| PLCCC | 5 | 8-18 (proinsulin, hematopoietic factor) |
| PLCGC | 10 | 18-60 (hemoglobin, enzyme) |
| PLCTK | 30 | 60-200 (monoclonal antibody) |
| PLCHK | 100 | 200-500 (parvovirus, viral antigen) |
| PLCMK | 300 | > 500 (lgMs, big virus) |
| PLCXK | 1000 | > 0.3um (colloid, granules) |
| PVDF（Microfiltration） | 0.1um/0.22um /0.45um/0.65um | Large diameter of the bacteria, particles |

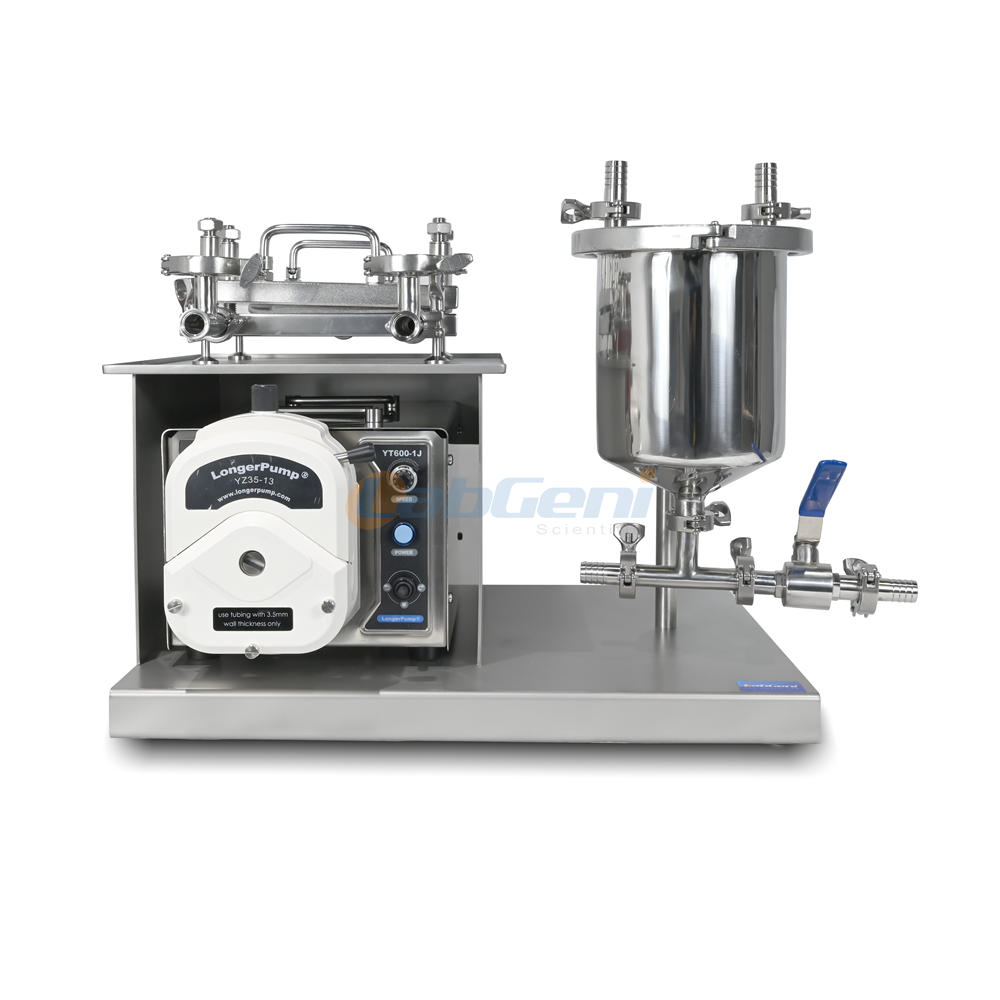

Specification parameter
| Model | BIO-TFF01 | BIO-TFF05 |
| Power unit | LONGER peristaltic pump 220V Maximum flow 2L/MIN Seamless replacement with four plunger diaphragm pump Speed range 1-600RPM |
LONGER peristaltic pump 220V Maximum flow 2L/MIN Seamless replacement with four plunger diaphragm pump Speed range 1-600RPM |
| Membrane element | Imported box type flat membrane, with an area of 0.1 square meters, can install 1~3 blocks | Imported box type flat membrane, with an area of 0.5 square meters, can install 1~3 blocks |
| Process capacity | 0.1～20L/H | 30～90L/H |
| Stainless steel fixture | Material AISI 316L sanitary quick interface with mirror polishing internal surface and sand blasting outside surface fit all brands of membrane packs |
Material AISI 316L sanitary quick interface with mirror polishing internal surface and sand blasting outside surface fit all brands of membrane packs |
| Pressure gauge | Sanitary diaphragm pressure gauge, range 0 ~ 4Mpa, anti-shaking pointer | Sanitary diaphragm pressure gauge, range 0 ~ 4Mpa, anti-shaking pointer |
| Stainless steel bracket | Material AISI 316L, sand blasting outside surface | Material AISI 316L, sand blasting outside surface |

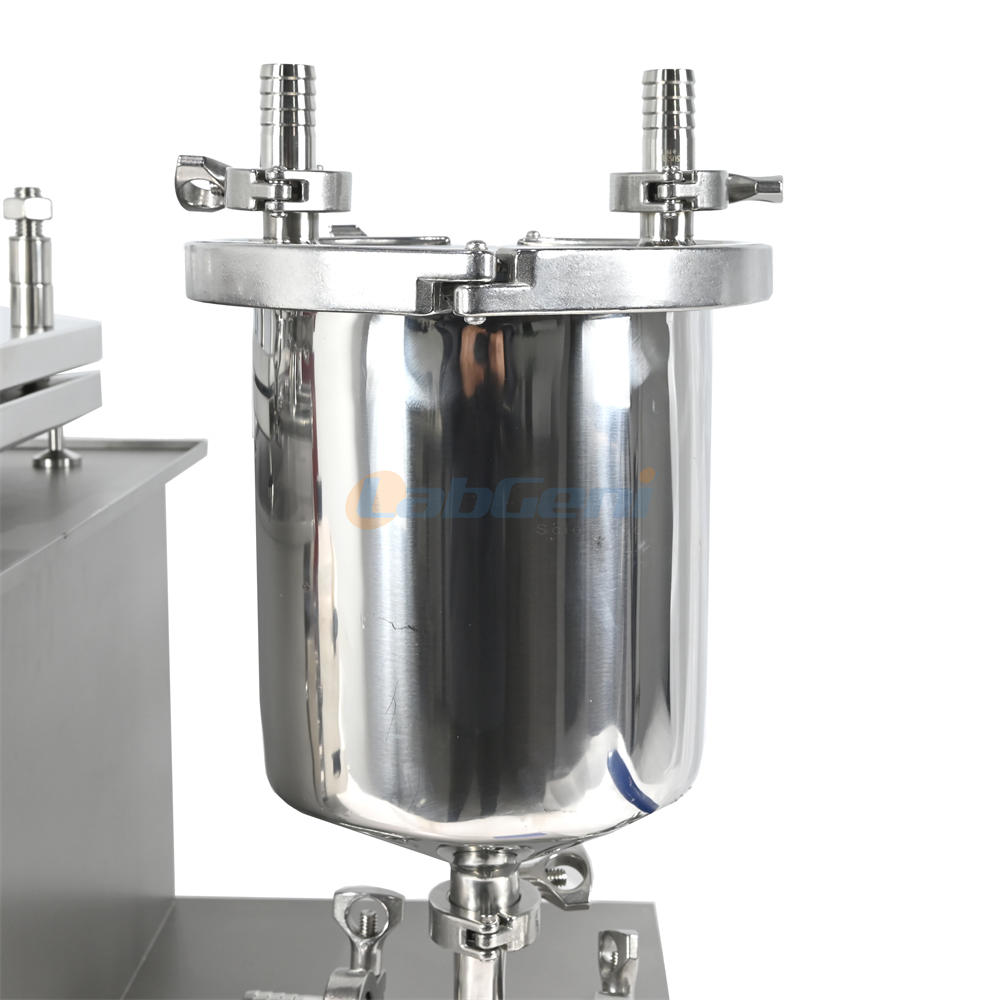

| Raw material tank | Material AISI 316L, volume 2L, Sartorius outlet filter | Material AISI 316L, volume 3.5L, Sartorius outlet filter |
Optional items
Tank weighing
METTLER-TOLEDO original XS series precision balance
Digital display and touch screen
Provide matching tripod feed tank
Four plunger diaphragm pump
High precision pump head imported from Germany
Can be upgraded to color touch screen with data exporting function
With low pulse and quiet operation
Simple design and easy cleaning
Full automatic control system
Both Mini T01、Mini T05 can be upgraded to full automatic control system
Compact design, easy for laboratory users to use and move
One piece modular design, can be customized according to user requirements
Pump, pressure, temperature, flow meter and so on use digital analog signal
Full automatic touch screen control
Adopts the latest version of HM-Control
All the experimental data are monitored, collected and exported in real time
The device can be connected with PC terminals, mobile phones and iPad through WIFI to realize multi end users
Simultaneous detection and manipulation
