Overview

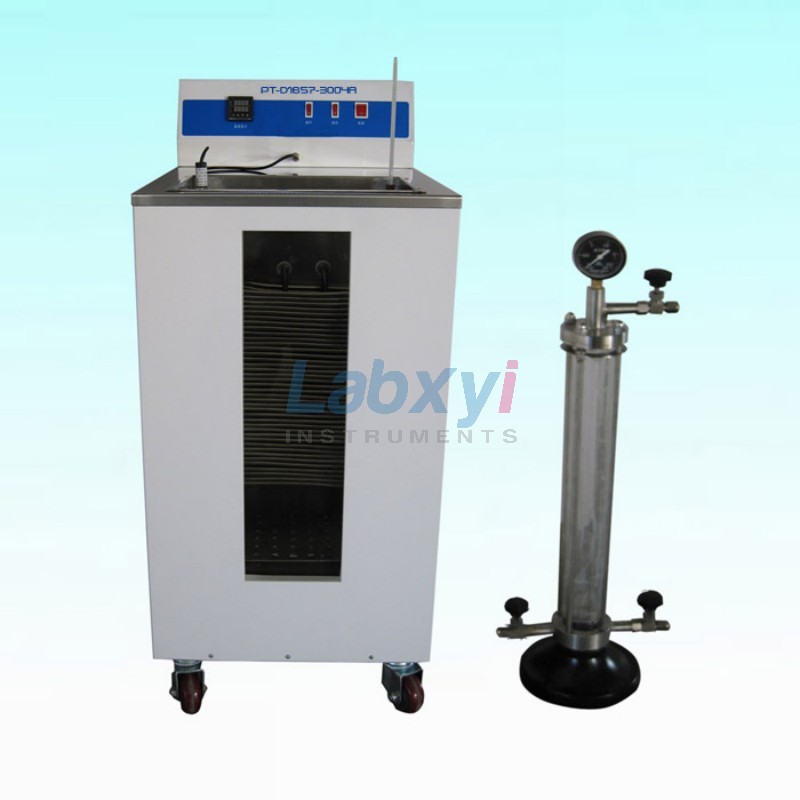

PT-D1657-3004A Pressure Hydrometer Apparatus bath conforms to the ASTM D1657 Standard Test Method for Density or Relative Density of Light Hydrocarbons by Pressure Hydrometer, is used for testing the density or relative density of light hydrocarbons including liquefied petroleum gases (LPG) having Reid vapor pressures exceeding 101.325 kPa (14.696 psi).
Features
- Digital display temperature controller, easy and flexible operation with high temperature controlling precision.
- The heating output adopts solid-state relay, contactless, sparkless, and noiseless. Long life time, safe and reliable.
- The heater adopts stainless steel material. The heating rate is fast and the life time is long.
- The apparatus adopts compressor to do cooling. good temperature stability with fast cooling speed.
- The apparatus adopts pump loop, stirring regularly and noiselessly
- Rational design with attractive appearance and easy operation.
Technical parameters
| Rated voltage | AC220V±10% 50Hz |
| Heating power | 1500W |
| Cooling power | 300W |
| Temperature controlling mode | digital display |
| Temperature controlling range | 10~25°C |
| Temperature controlling precision | ±0.1°C |
| String mode | pump loop |
| Ambient requirement | temperature:15~30°C Humidity≤85% |
