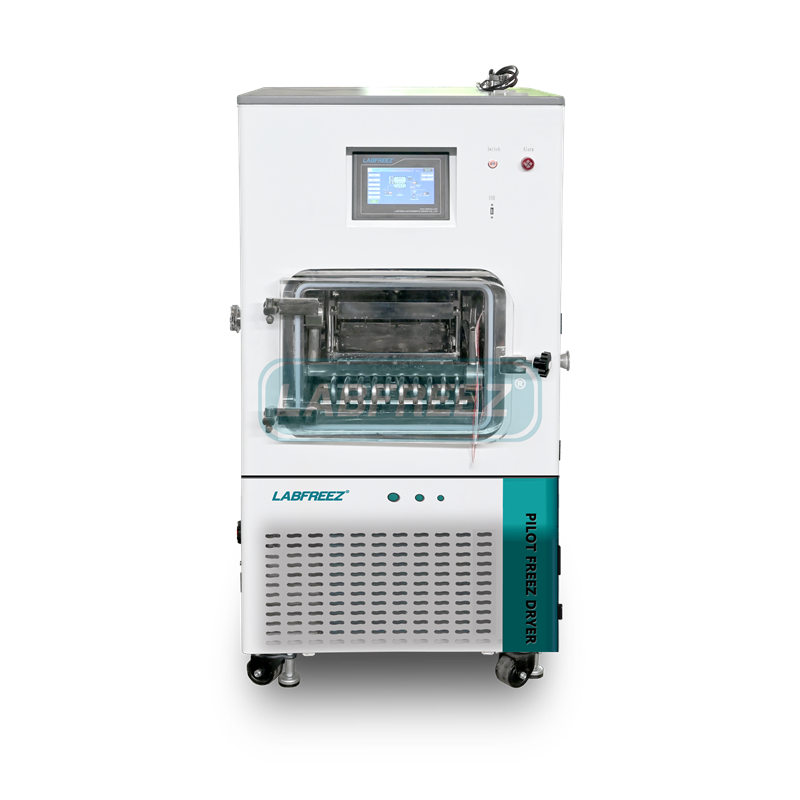

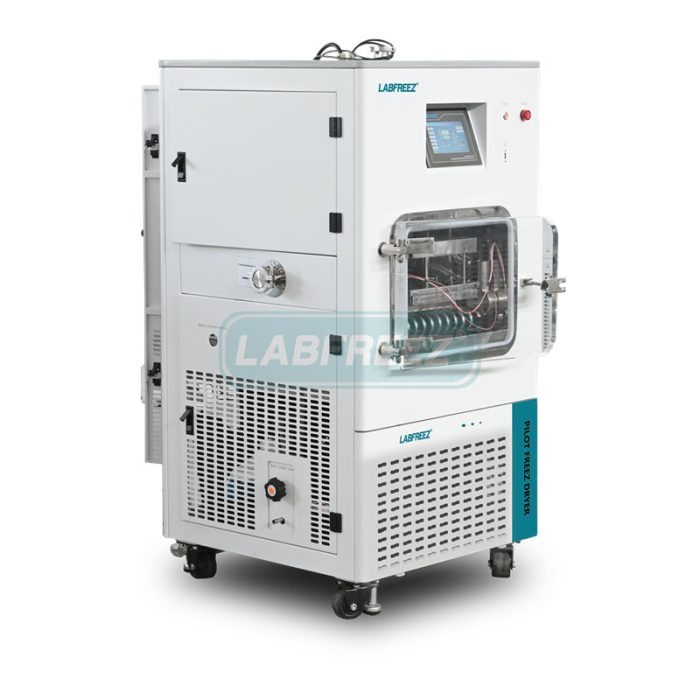

FD-10F series 1.5~3kg/24hours, In-situ Freeze Dryer, Electric-heating type

FD-10F series In-situ Freeze Dryer, Laboratory Vacuum Lyophilization Machine

FD-10F series is the most compact type of Pilot Freeze Dryer Machine, it is a automatic type which the samples can be pre-freezing and drying in same chamber, this series is suitable for small batch process for bio samples, probiotics, polypeptide, pharmaceutical, vaccine in vials, traditional medince, food, fruit and etc. There are severals models of FD-10F series:

• FD-10F-R silicone oil circulating heating and cooling shelf temperature control
• FD-10F-RE electric heating and refrigeration flow to shelf to cooling
• FD-10F-TP similar with FD-10F-R and comes with stoppering device for sealing rubber caps into vials under vacuum
• FD-10F-TPE similar with FD-10F-RE and comes with stoppering device for sealing rubber caps into vials under vacuum

Chamber

1. Rectangular type dry chamber, Pre-freezing, drying in same chamber without any manual operation.
2. Drying chamber & shelves made by polished SS 304 or material contact parts SS316 is optional, adopted high strength, high transmittance plexiglass door, easy to observe, inside round corner, easy to clean.
3. Oil circulation heating type with high temperature precision control, usually suitable for medical, bio field, electric heating type suitable for food field.
4. GUNDFOS shielded circulating pump and PID control electric heating component; circulation liquid used Low-temperature low- viscosity silicone oil.
5. Shelves heating system uses safe voltage, while heating rate controllable. (Electric heating type)



Condenser (cold trap)

1. Made by SS304 drum-type cold trap, with high transmittance plexiglass door, Integrity or separately condenser and chamber can be chosen.
2. Patented gas diversion technology, cold trapping ice even, ice-catching ability.

Refrigeration

1. Dual-stage cooling, famous hermetic compressor which is low noise, capillary throttling technology, air-cooled or water-cooled is available.
2. Brazed plate heat exchanger.
3. Environmental-friendly refrigerant.

Control

1. Flexible manual + automatic control, manual groping process, automatic batch production.
2. PLC control with 7’ LCD touch graphic display, can be operated in auto, semi-auto and manual mode.
3. Shelf temperature adjustable, controllable, explore suitable for pilot and production processes.
4. 32 programs, each program can be set as 36 segments, curve can be stored, processing parameters can be modified in real time.
5. Built with recorder, with USB interface data can be exported to computer for analysis, FD-LYO software & computer is optional for controlling by remote way.
6. sensor calibration function, to ensure long-term use of the accuracy of the measured value.
7. Real-time alarm display and historical alarm inquiry function, convenient fault diagnosis and equipment maintenance.
8. Users can set the level and password, decentralized operation and management.

Vacuum

1. Two-stage rotary vane vacuum pump, vacuum is automatic adjust and can be set (optional).
2. Ultimate vacuum can reach 5 Pa, in order to reach highest vacuum, Leybold brand vacuum pump is optional.

Others

• Normal type suitable for bulk raw products like food, fruit, herbal medicine and bio material. Stoppering type suitable for vials comes with cap, to stoppering caps into the vials.
• Inflatable (water) valve with a safety diaphragm valve can be connected to the inert gas source, dry and filled with inert gas, to extend the shelf life of the material.
• CE/ISO 9001 13485 14001 certificated.
• Can be conforms to GMP standard.

Specifications

FD-10F Series	Model	FD-10F-R (Silicon oil heating) FD-10-RE (Electric heating)	FD-10F-TP (Silicon oil heating) FD-10F-TPE (Electric heating)
	Specification	Normal	With stoppering
Drying chamber	Shelf area	0.2 m2	0.1 m2
	Shelf quantity	2 pcs	1pc
	Shelf temp. range	-70°C ~ +65°C -50°C ~ 70°C
	Shelf space height	70mm
	Shelf dimension	400×270mm
	Ф22mmvials(piece)	440	220
	Ф16mm vials (piece)	868	434
	Ф12mmvials (piece)	1554	777
	Tray dimensions	395×265mm	395×265mm
	Tray quantity	2	1
	Tray material load capacity	2L	1L
Condenser	Max temp.	≤-80°C ≤-60°C (-80°C is optional)
	Ice capture capacity	6Kg/24hs
	Defrost	Natural (Electric heating is optional)
Vacuum	Vacuum pump	Included
	Vacuum rate	4L/S
	Vacuum degree	≤5 Pa
Basic parameters	Style of cooling	Air-cooled
	Dimension(L*W*H)	655×640×1200mm	655×640×1200mm
	Weight	210kg	210kg
	Control method	PLC auto + manual
	Installation power	2Kw
	Voltage	220V/50Hz (can be change to 110V/60Hz)
