Description:

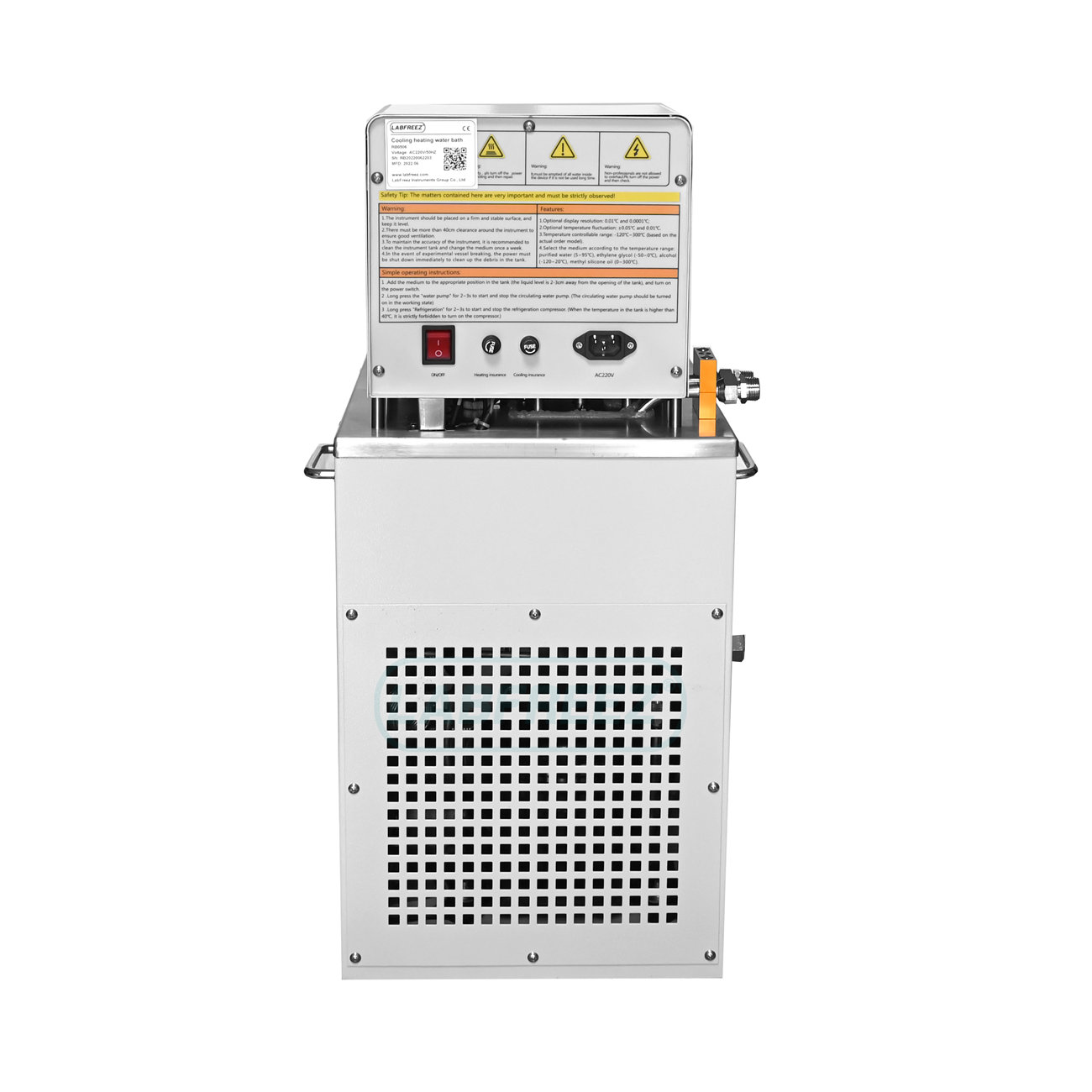

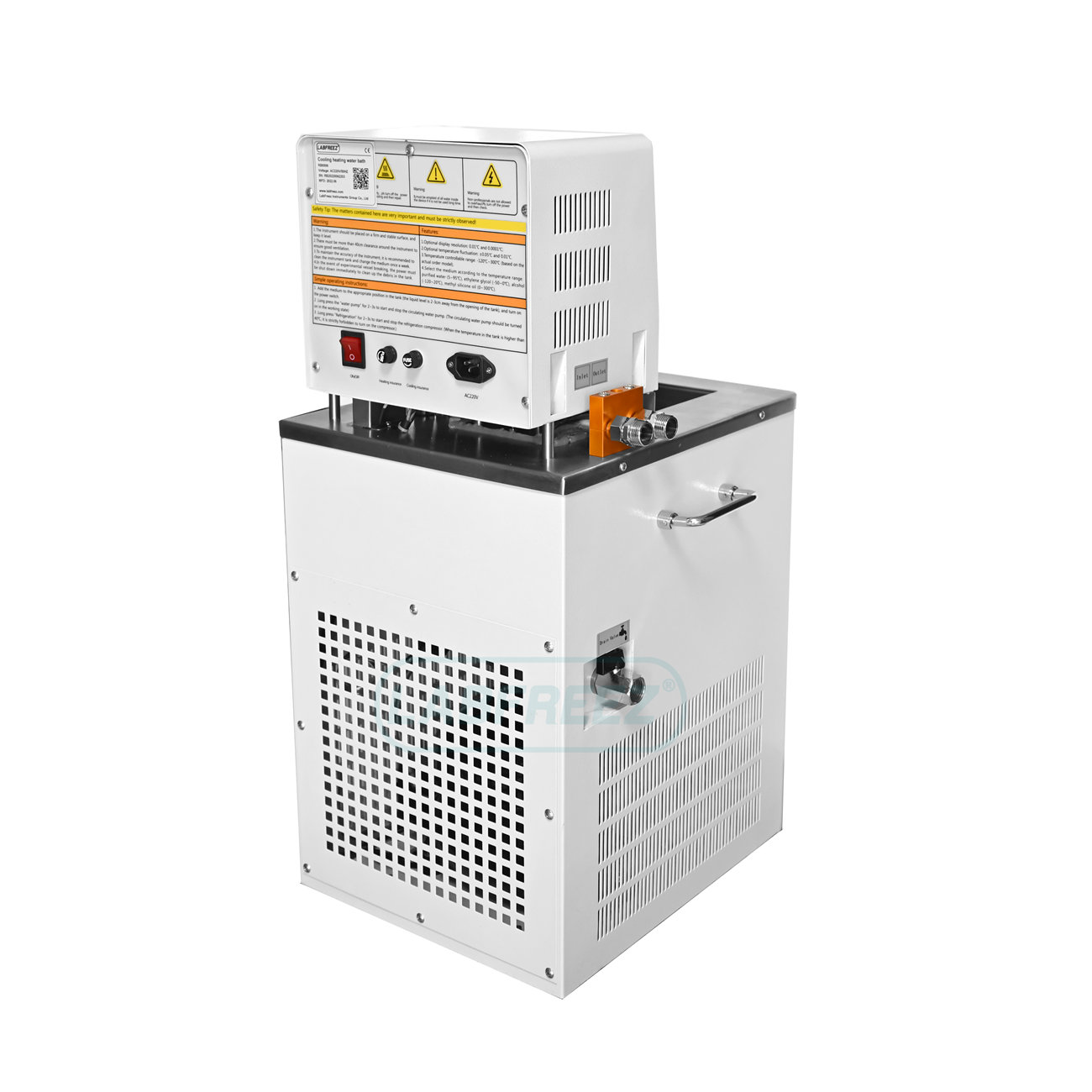

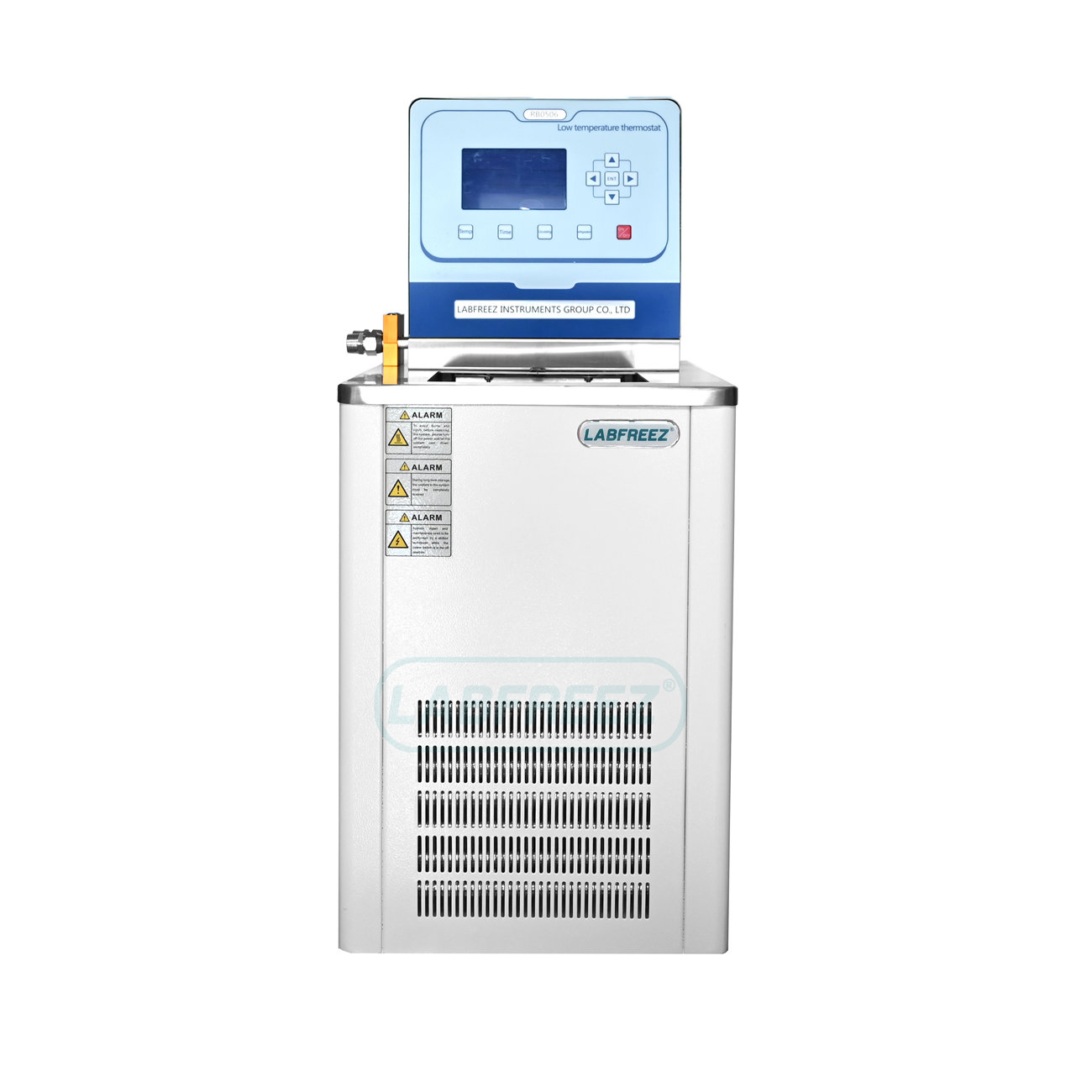

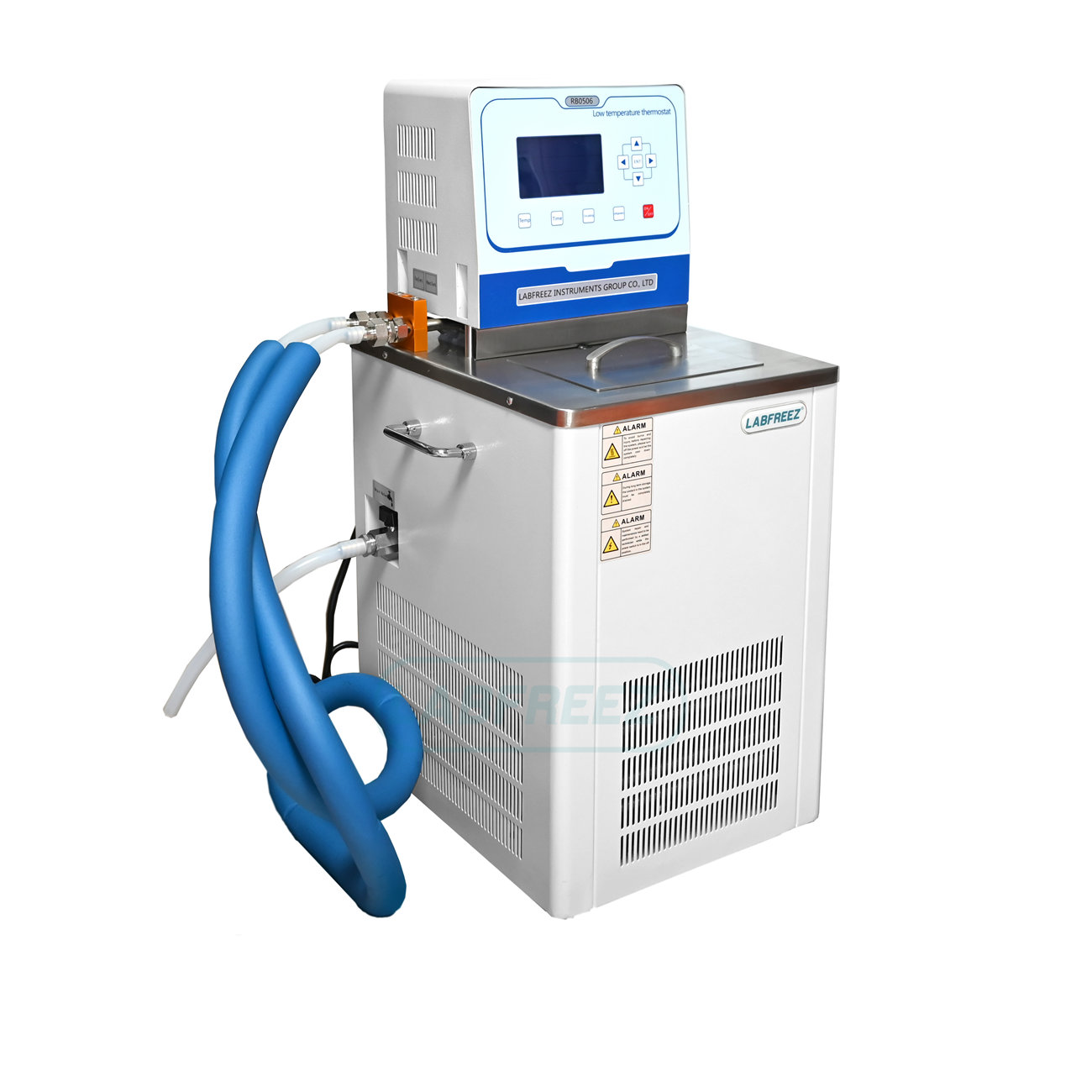

RB series is mainly used for the experiments below room temperature requirements, it comes with a refrigeration compressor and circulating pump which is a refrigerating & heating integration products, also known as low-temperature circulation water bath. It used microprocessor technology combined with PID control which is a high-precision and multi-function products. It built-in water tank can be made the experiment internal, or provide cooling water for external instruments. Simple and compact form, easy to operate, can be stand-alone operation, low temperature experiments in the tank (no water cooling). Or supporting the electrophoresis apparatus, viscometer, molecular pump, a small rotary evaporator large.
Features:
- Upright or chest design to suitable for various environments;
- Large operation opening in order to provide tank experiment;
- External circulation function with a various of interface port;
- Temperature range from -10, -20,-40, -60 and -80°C;
- Precision temperature control at 0.1°C or 0.01°C;
- A variety of safety protection include over-temperature, over-water level, sensor circuit open/short;
- Auto water supply is optional;
- RS485 interface is optional.
Parameters:
| Model | Temp. Range ( °C) | Temp. Accuracy (°C) | Tank Capacity (L) | Flow Rate (L/min) | Pressure (bar) | Cooling power (W) @20°C | Tank Depth (mm) | opening size (W*D mm) | Dimensions (W*D*H mm) | Weight (kg) |
| RB101 | -15 ~ +95 | ±0.05 | 6 | 5~10 | 0.25 | 200 | 150 | 145×130 | 420×405×400 | 25 |
| RB105 | -10 ~ +95 | ±0.05 | 5 | 5~10 | 0.25 | 200 | 150 | 145×150 | 215×405×550 | 26 |
| RB205 | -20 ~ +95 | ±0.05 | 5 | 5~10 | 0.25 | 200 | 150 | 140×145 | 210×405×560 | 30 |
| RB305 | -30 ~ +95 | ±0.05 | 5 | 5~10 | 0.25 | 200 | 150 | 140×145 | 215×405×560 | 33 |
| RB405 | -40 ~ +95 | ±0.05 | 5 | 5~10 | 0.25 | 200 | 150 | 140×145 | 215×405×560 | 33 |
| RB2012 | -20 ~ +95 | ±0.05 | 12 | 5~10 | 0.25 | 550 | 200 | 170×170 | 280×480×725 | 42 |
| RB4012 | -40 ~ +95 | ±0.05 | 12 | 5~10 | 0.25 | 550 | 200 | 170×170 | 280×480×725 | 45 |
| RB012 | +5 ~ +99 | ±0.02 | 12 | 5~10 | 0.25 bar | 800 | 150 | 150×300 | 365×340×340 | 17 |
| RB025 | +5 ~ +99 | ±0.02 | 25 | 5~10 | 0.25 bar | 1500 | 200 | 300×300 | 560×350×400 | 22 |
