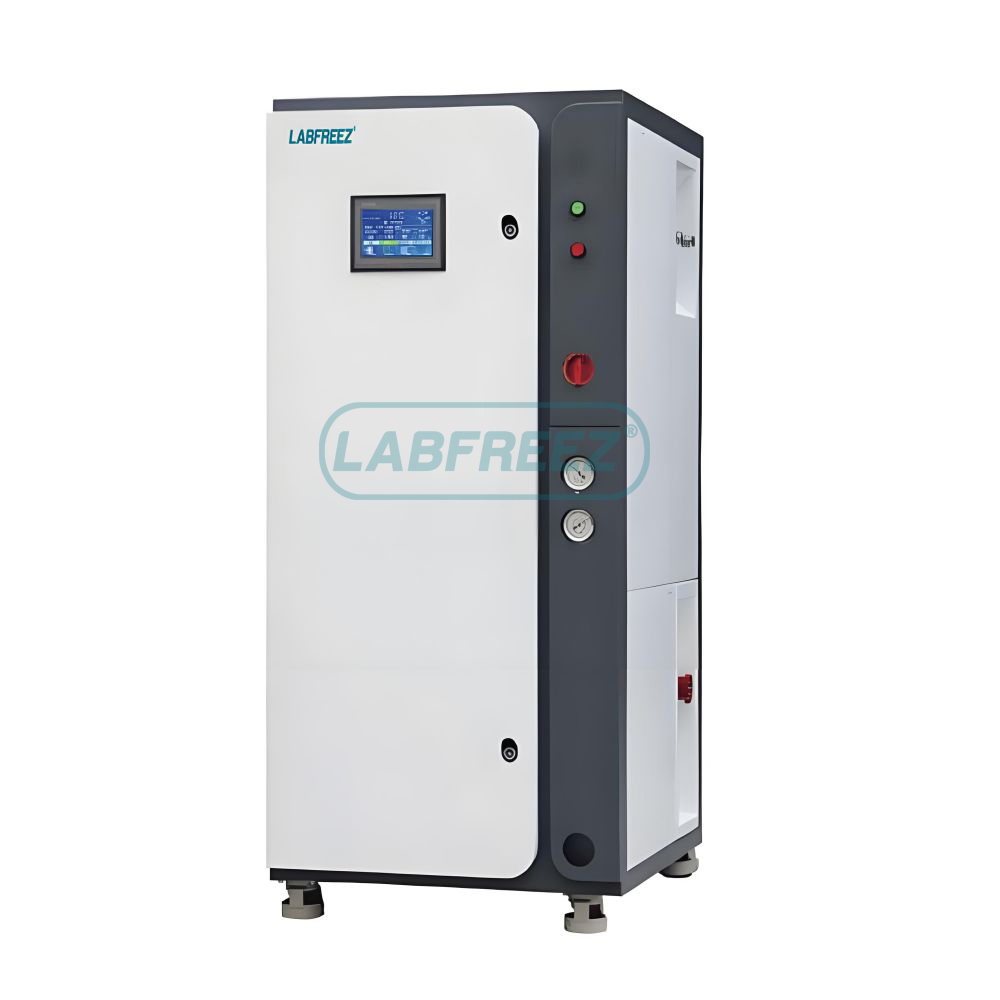

Description:
- Cryogenic trap vapor pump can quickly capture the residual gas of vacuum system, greatly reducing 25% ~ 90% vacuuming time , to obtain a clean vacuum environment .
- Used single-stage compressor, sophisticated design;
- Environmental mixed refrigerant, lowest temperature up to -165°C
- 8 to 16 segments of temperature display and monitoring
- 6 groups of safety protection:
- Over-low exhaust pressure
- Over-high exhaust pressure
- Over-high exhaust temperature
- Over-low/high of condensing temperature
- Overheating or overload of refrigeration system
- abnormal power phase sequence
- Small size, beautiful and practical
- Instead of liquid nitrogen and cost savings.
- It can be fitted with a cryo-coil or cryo-baffle.
Specifications:
| Model | LFZ-CPC200 | LFZ-CPC1200 | LFZ-CPC1800 | LFZ-CPC3500 |
| Temp. range | -100 ~ -135°C | -120 ~ -150°C | -120 ~ -150°C | -120 ~ -135°C |
| Cooling capacity @-100°C | 200W | 1200 | 1800 | 3500 |
| Vapor trap rate (L/sec) | 12000 | 74000 | 104000 | 250000 |
| Coil area (m2) | 0.1 | 0.5 | 1.0 | 2.0 |
| Coil diameter (mm) | Φ 8 | Φ 12 | Φ 16 | Φ 16 |
| Coil length (m) | 4 | 12 | 15 | 40 |
| Pre-cooling time (min) | ≤ 30 | ≤ 30 | ≤ 30 | ≤ 40 |
| Defrost time (min) | N/A | ≤ 4 | ≤ 4 | ≤ 5 |
| Dimensions (mm) | 500 * 550 * 1200 | 750 * 900 * 1660 | 750 * 900 * 1800 | 920 * 800 * 1860 |
